Instrument Panel Center Trim Plate Applique Replacement

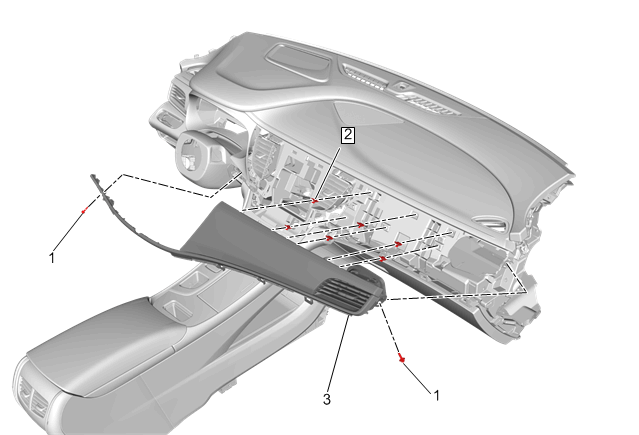

Fig 1: Instrument Panel Center Trim Plate Applique

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Instrument Panel Trim Pad Replacement - Right Side Instrument Panel Center Trim Pad Replacement
1	Instrument Panel Center Trim Plate Applique Bolt
2	Instrument Panel Center Trim Plate Applique Clip
3	Instrument Panel Center Trim Plate Applique
