Installation Procedure

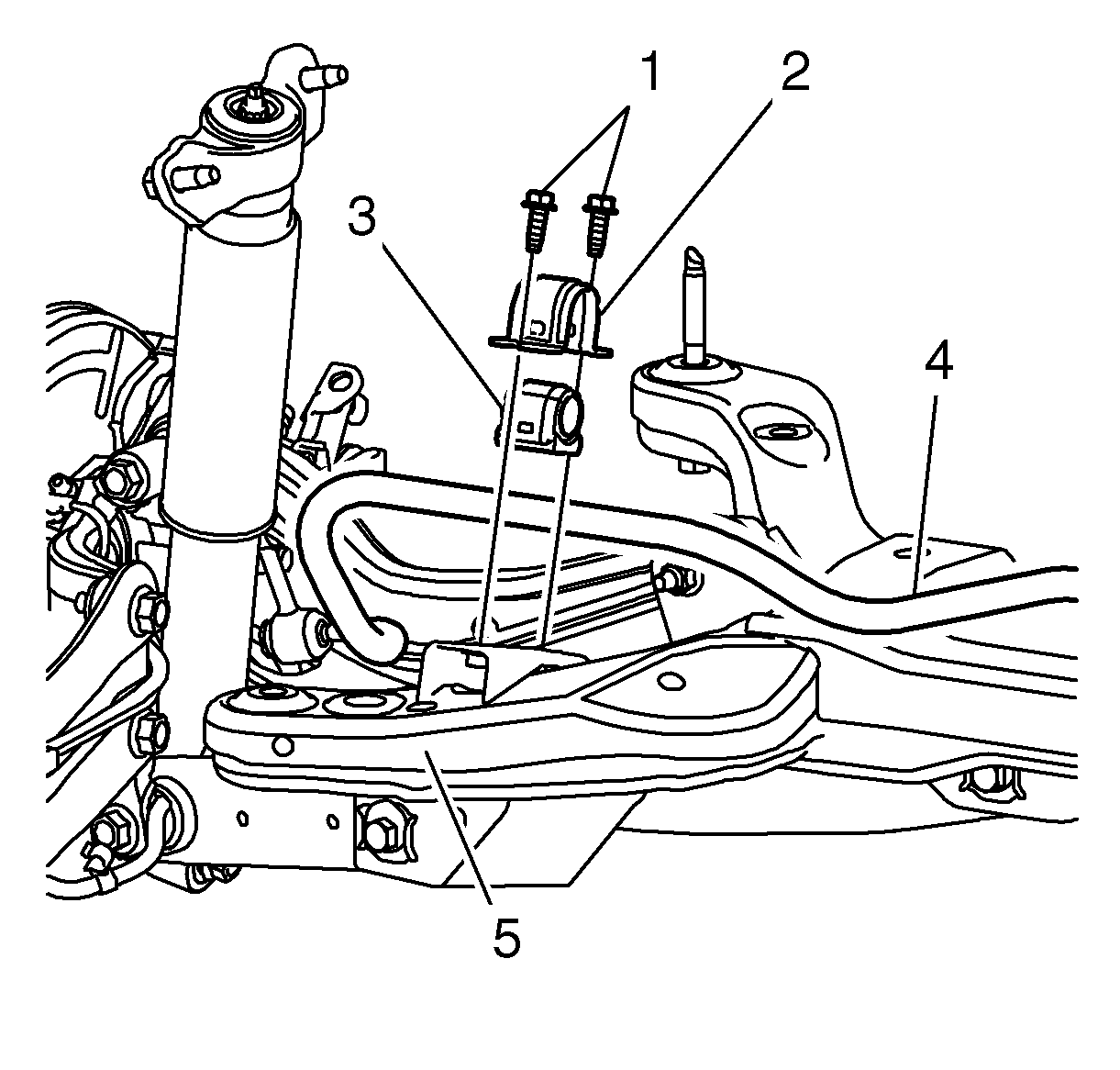

    Fig 1: Stabilizer Shaft Assembly
    GM2018661Courtesy of GENERAL MOTORS COMPANY
  1. Load the suspension with the proper jack stand before tightening the bolts to specifications.
  2. Install the stabilizer shaft (4) on the support (5).
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install NEW clamp bolts (1) and tighten to:

    Tighten

    • First Pass: 22 N.m (16 lb ft).
    • Final Pass: plus 30 degrees.

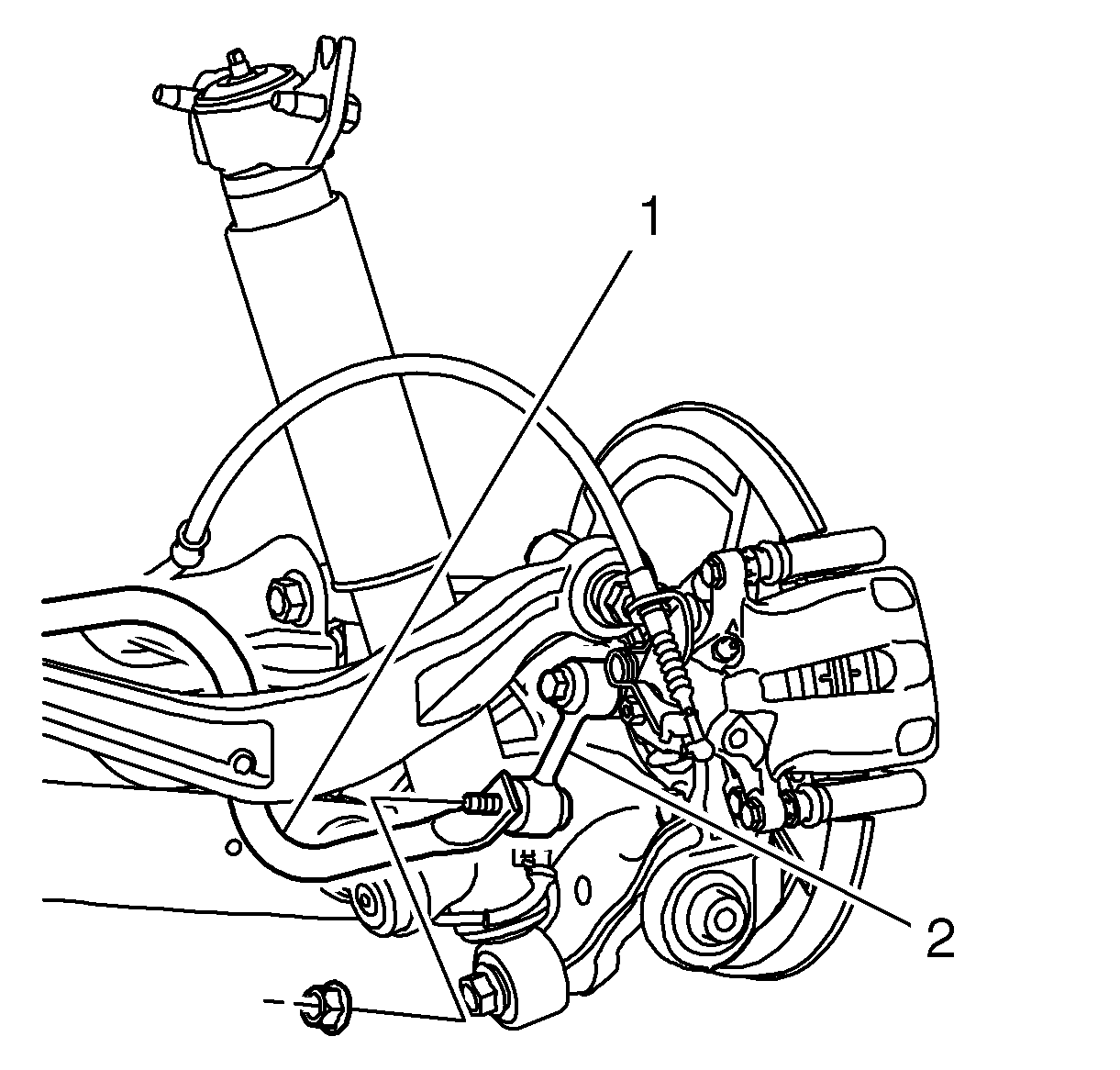

    4. Fig 2: Stabilizer Shaft & Stabilizer Shaft Link
    GM2018660Courtesy of GENERAL MOTORS COMPANY
  4. Install the stabilizer shaft (1) to stabilizer shaft link (2). Refer to Stabilizer Shaft Link Replacement (GNC) .
  5. Raise the rear support back into position.

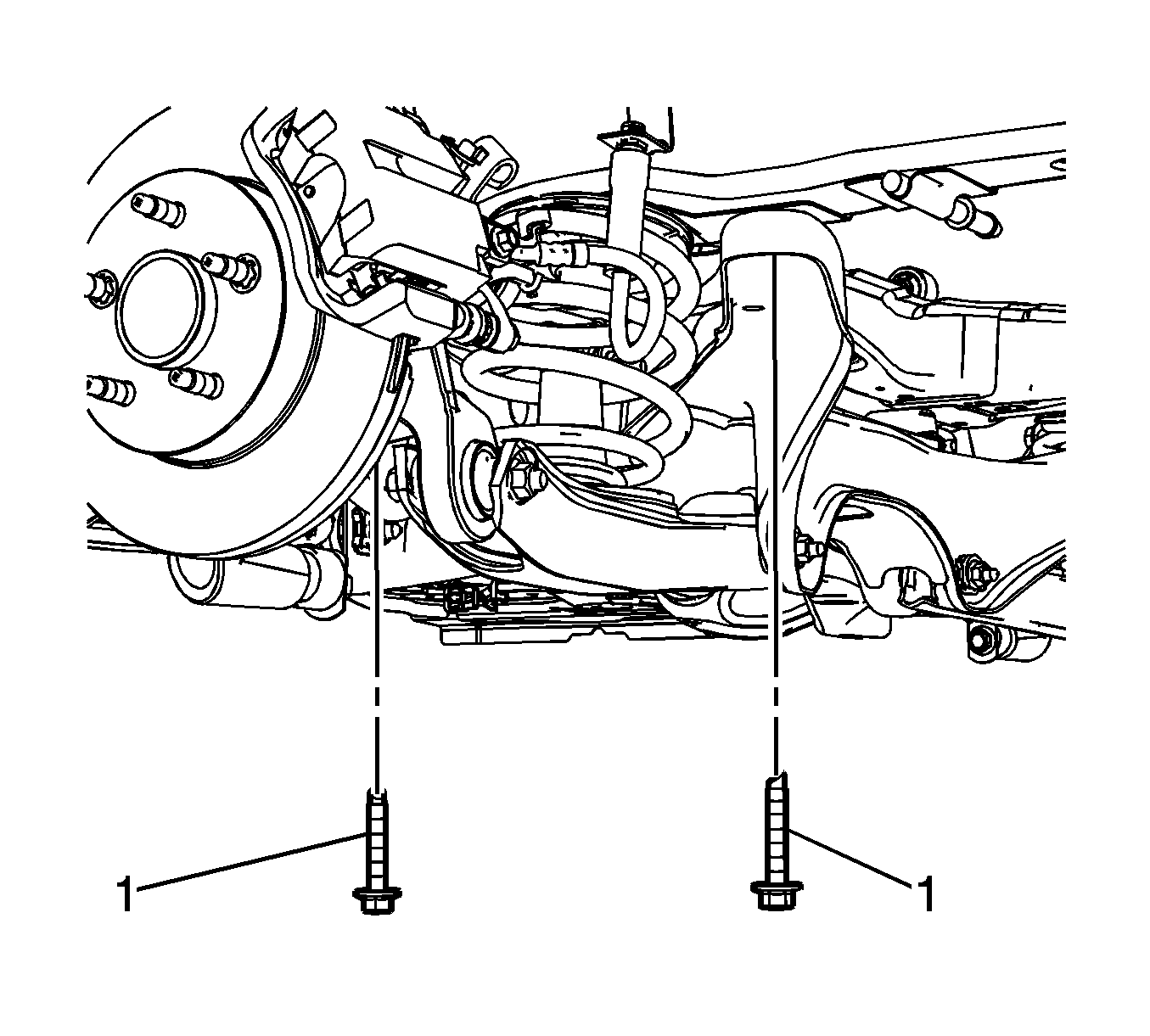

    6. Fig 3: Identifying Support Mounting Bolts
    GM2013226Courtesy of GENERAL MOTORS COMPANY
  6. Install the rear support bolts (1). Refer to Rear Suspension Support Replacement (GNC) .
  7. Install the lower shock absorber mounting bolts. Refer to Shock Absorber Replacement (GNC) .
  8. Install the rear brake calipers. Refer to Rear Brake Caliper Replacement .
  9. Install the rear suspension control arm bolts to the body. Refer to Rear Suspension Control Arm Replacement .
  10. Install the rear springs. Refer to Rear Spring, Insulator, and Jounce Bumper Replacement .
  11. Remove the adjustable jack stands from the rear support.
  12. Install the park brake cables on the rear suspension support. Refer to Parking Brake Rear Cable Replacement .
  13. Install the rear muffler assembly. Refer to Exhaust Muffler Replacement (Single) or Exhaust Muffler Replacement (Dual) .
  14. Install the tire and wheel assemblies. Refer to Tire and Wheel Removal and Installation .
  15. Lower the vehicle.
