Exhaust Muffler Replacement (Dual)

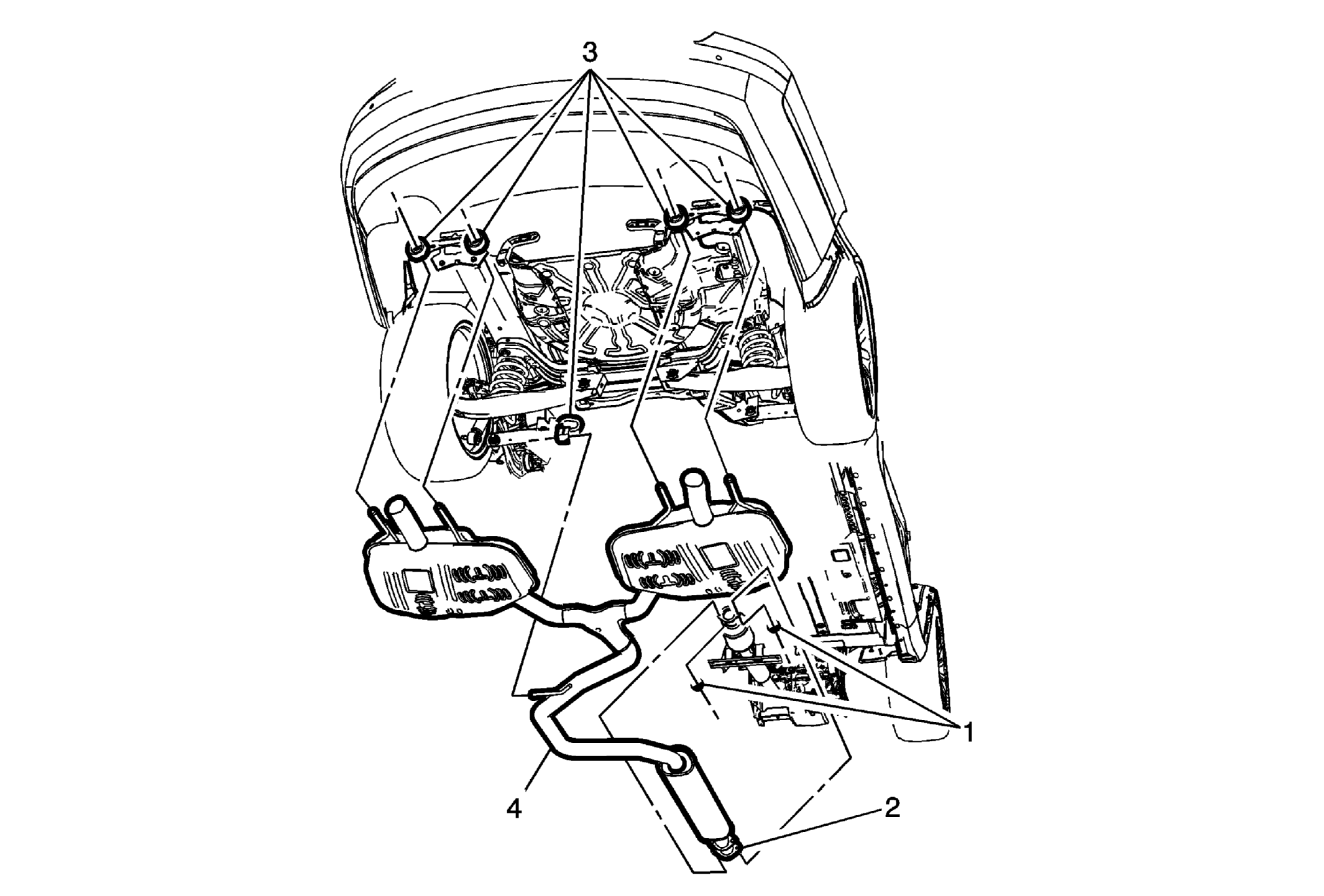

Fig 1: Exhaust Muffler (Dual)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Eye Protection Warning . WARNING: Refer to Hot Exhaust System Warning . Preliminary Procedure Lift and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Rear Exhaust Muffler to Exhaust Front Pipe Nut (Qty:2) CAUTION: Refer to Fastener Caution . Tighten 18 N.m (13 lb ft)
2	Exhaust Gasket NOTE: Replace exhaust gasket with a NEW exhaust gasket.
3	Exhaust Isolator NOTE: Clean and lubricate exhaust isolators for ease of installation.
4	Exhaust Muffler
