Exhaust Muffler Replacement (Single)

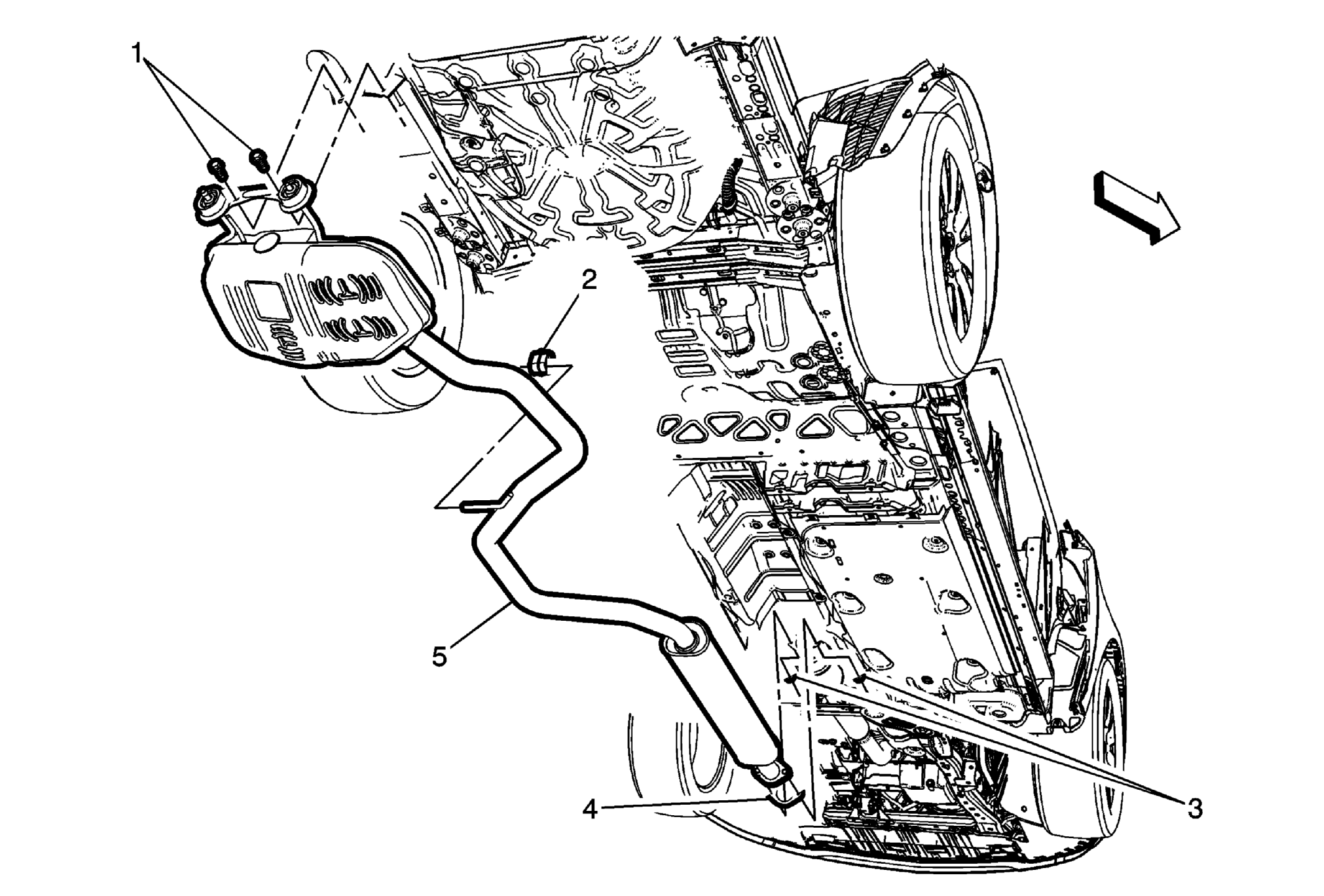

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Exhaust Muffler Rear Hanger Fastener (Qty:2)
WARNING:
Refer to Eye Protection Warning .
WARNING:
Refer to Hot Exhaust System Warning .
CAUTION:
Refer to Fastener Caution . Tighten 22 N.m (16 lb ft) |
| 2 | Exhaust Isolator |
| 3 | Exhaust Front Pipe Fastener Tighten 18 N.m (13 lb ft) |
| 4 | Exhaust Gasket
NOTE:
Replace the gasket with a NEW gasket. |
| 5 | Exhaust Muffler with Resonator |
