Stabilizer Shaft Link Replacement (GNC)

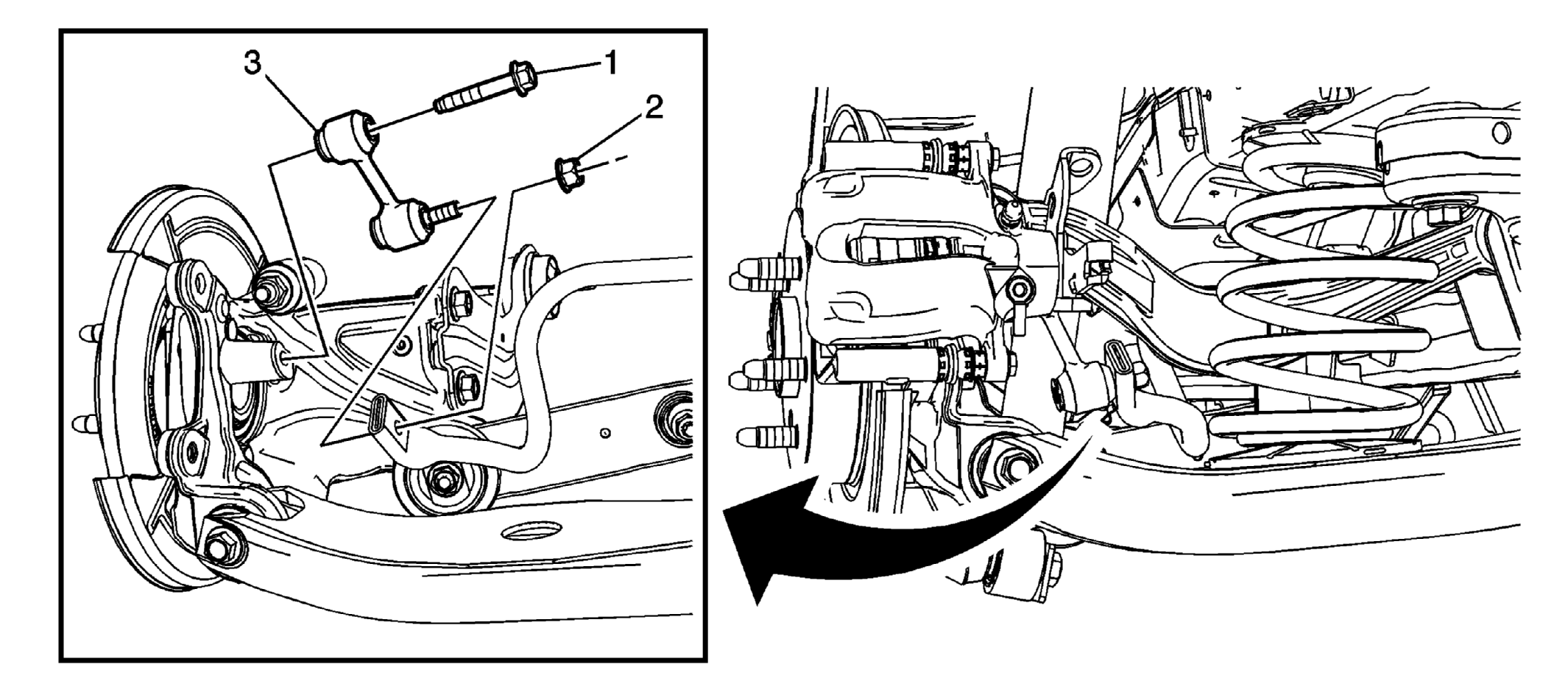

Fig 1: Stabilizer Shaft Link, Nuts & Bolts (GNC)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
1	Rear Stabilizer Shaft Link Bolt CAUTION: Refer to Fastener Caution . Tighten 50 N.m (37 lb ft)
2	Rear Stabilizer Shaft Link Nut Tighten 50 N.m (37 lb ft)
3	Stabilizer Shaft Link
