Heater Core Replacement

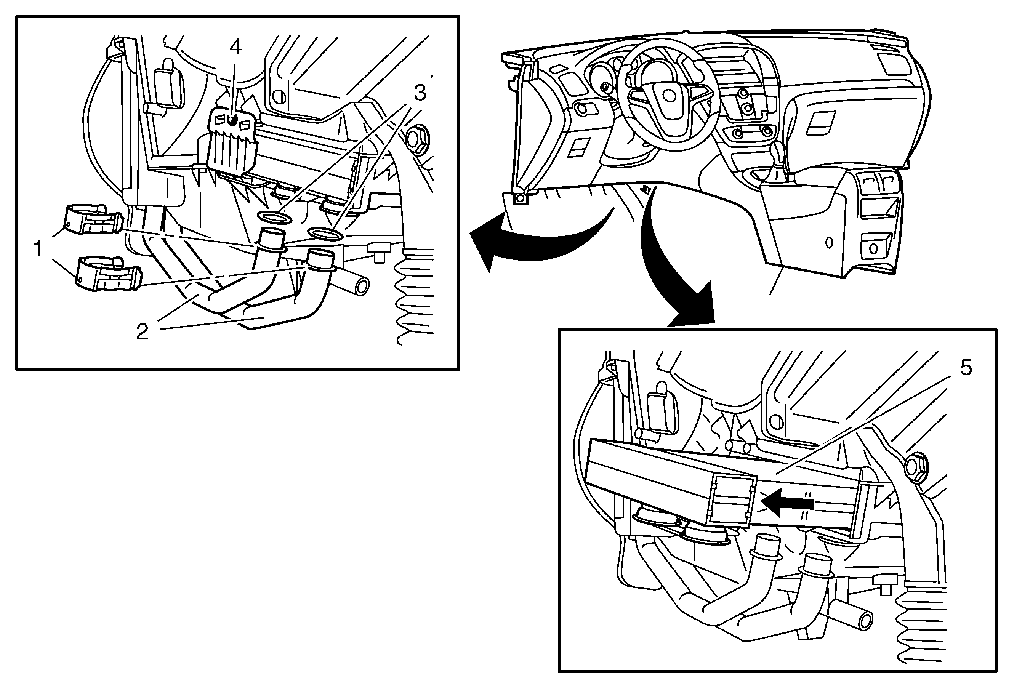

Fig 1: Heater Core

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the heater inlet hose from the heater core tube. Refer to Heater Inlet Hose Replacement (LEA) , Heater Inlet Hose Replacement (LUK) , Heater Inlet Hose Replacement (LTG) . Remove the heater outlet hose from the heater core tube. Refer to Heater Outlet Hose Replacement (LUK) , Heater Outlet Hose Replacement (LEA) , Heater Outlet Hose Replacement (LTG) . Remove the left side console extension. Refer to Front Floor Console Extension Panel Replacement . Place a protective mat over the carpet.
1	Heater Core Tube Clamp (Qty:2) Procedure Loosen the carpet in the area of the heater core.
2	Heater Core Tube Assembly Procedure Before disconnecting the heater core tubes from the heater core, place a small drain pan under the heater core tubes to capture any coolant drainage.
3	Heater Core Tube Seal (Qty:2)
4	Heater Core Bracket Fastener
5	Heater Core Procedure Pull out the heater core.
