Heater Outlet Hose Replacement (LUK)

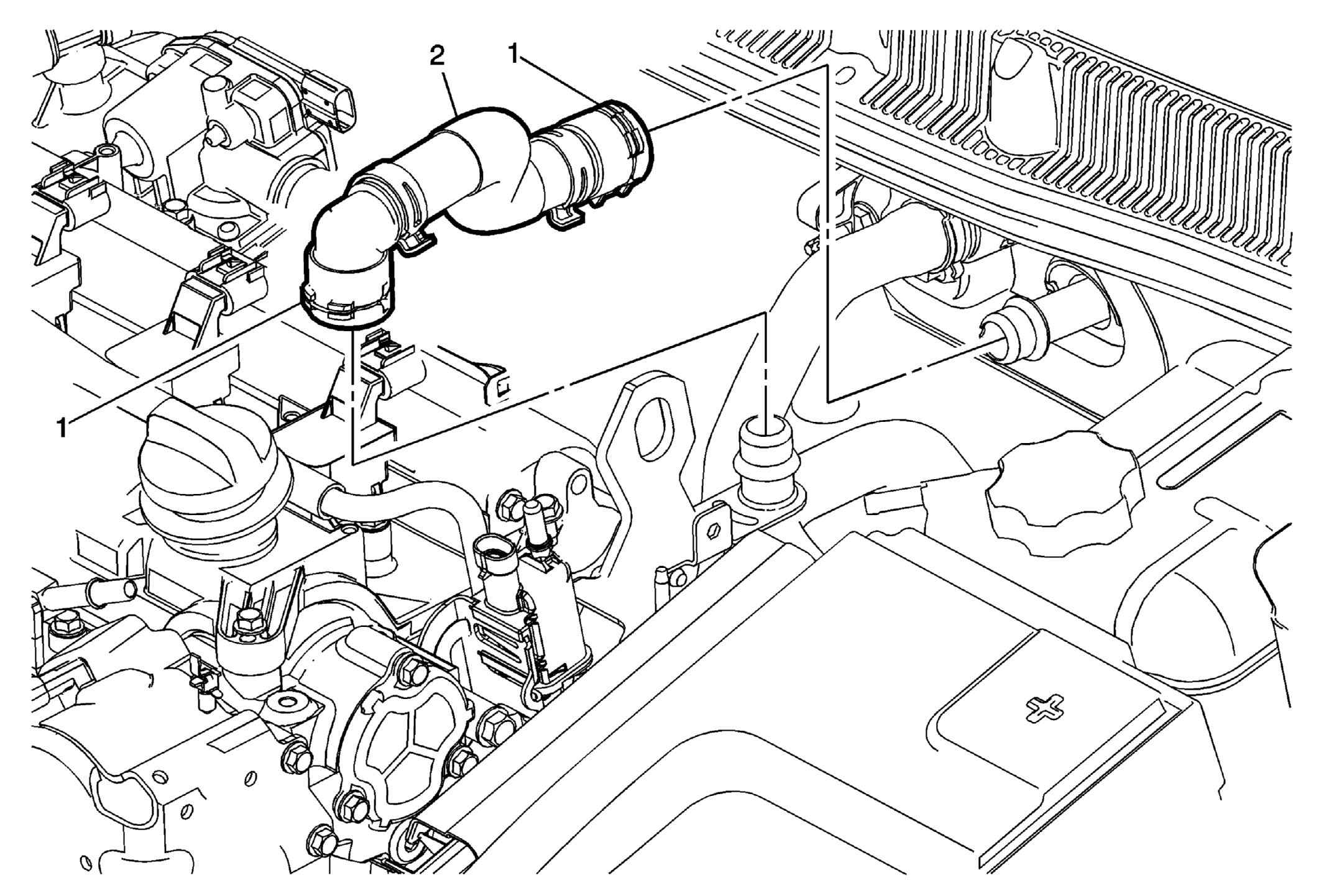

Fig 1: Heater Outlet Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Drain the cooling system. Refer to Cooling System Draining and Filling (GE 47716) . Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
1	Heater Outlet Hose Quick Disconnect Procedure Release the clips and remove the heater outlet hose from the heater core tube.
2	Heater Outlet Hose

Callout

Component Name

Preliminary Procedures

Drain the cooling system. Refer to Cooling System Draining and Filling (GE 47716) .
Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .

Heater Outlet Hose Quick Disconnect
Procedure
Release the clips and remove the heater outlet hose from the heater core tube.

Heater Outlet Hose
