Heater Outlet Hose Replacement (LEA)

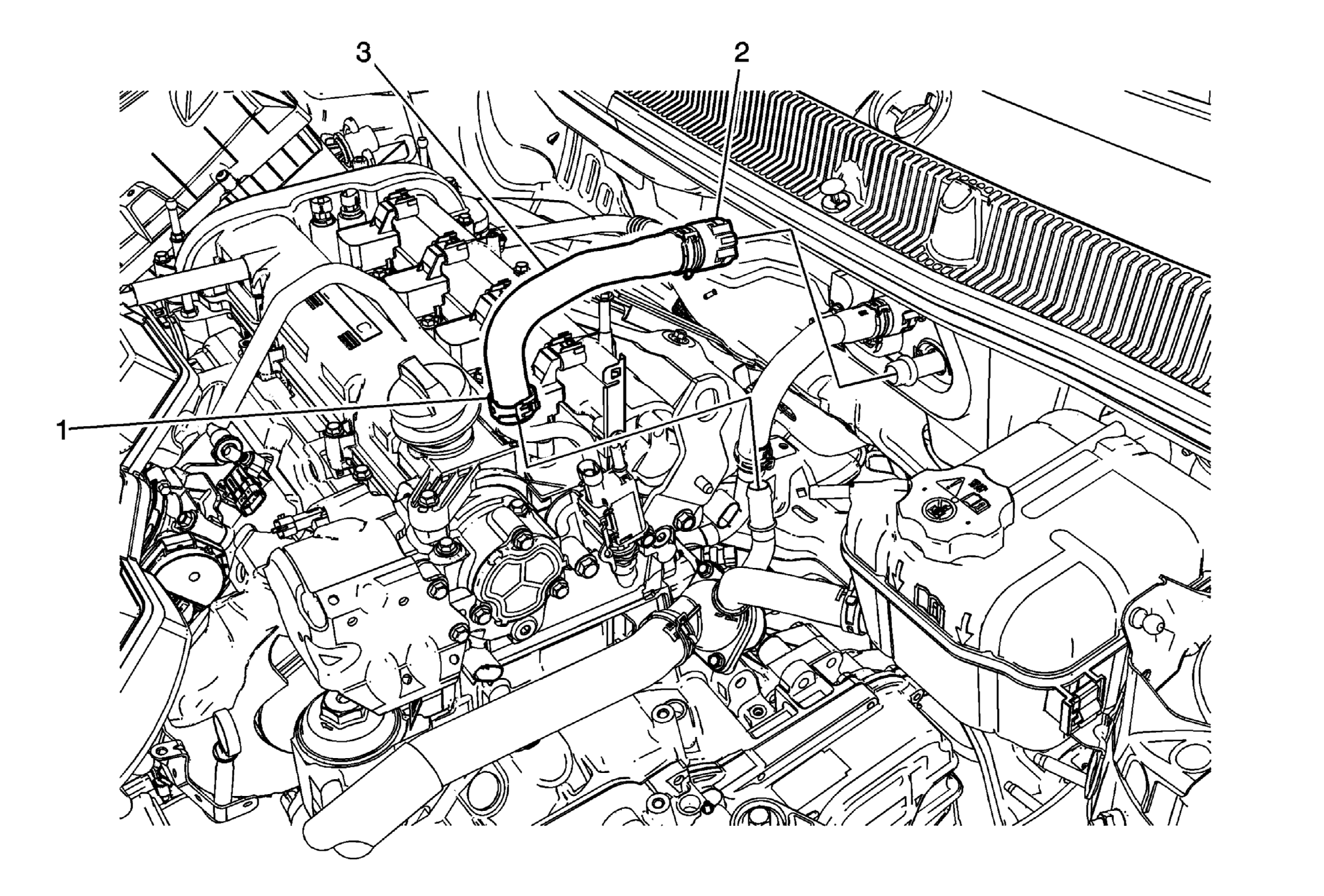

Fig 1: Heater Outlet Hose, Clamp & Quick Disconnect (LEA)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Drain the cooling system. Refer to Cooling System Draining and Filling (GE 47716) . Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
1	Heater Outlet Hose Quick Disconnect Procedure Release the clip and remove the heater outlet hose from the heater core tube.
2	Heater Outlet Hose Clamp Procedure Reposition the heater outlet hose clamp using J 38185 pliers. Special Tools J 38185 Hose Clamp Pliers For equivalent regional tools, refer to Special Tools .
3	Heater Outlet Hose
