Mode Control Cam Replacement

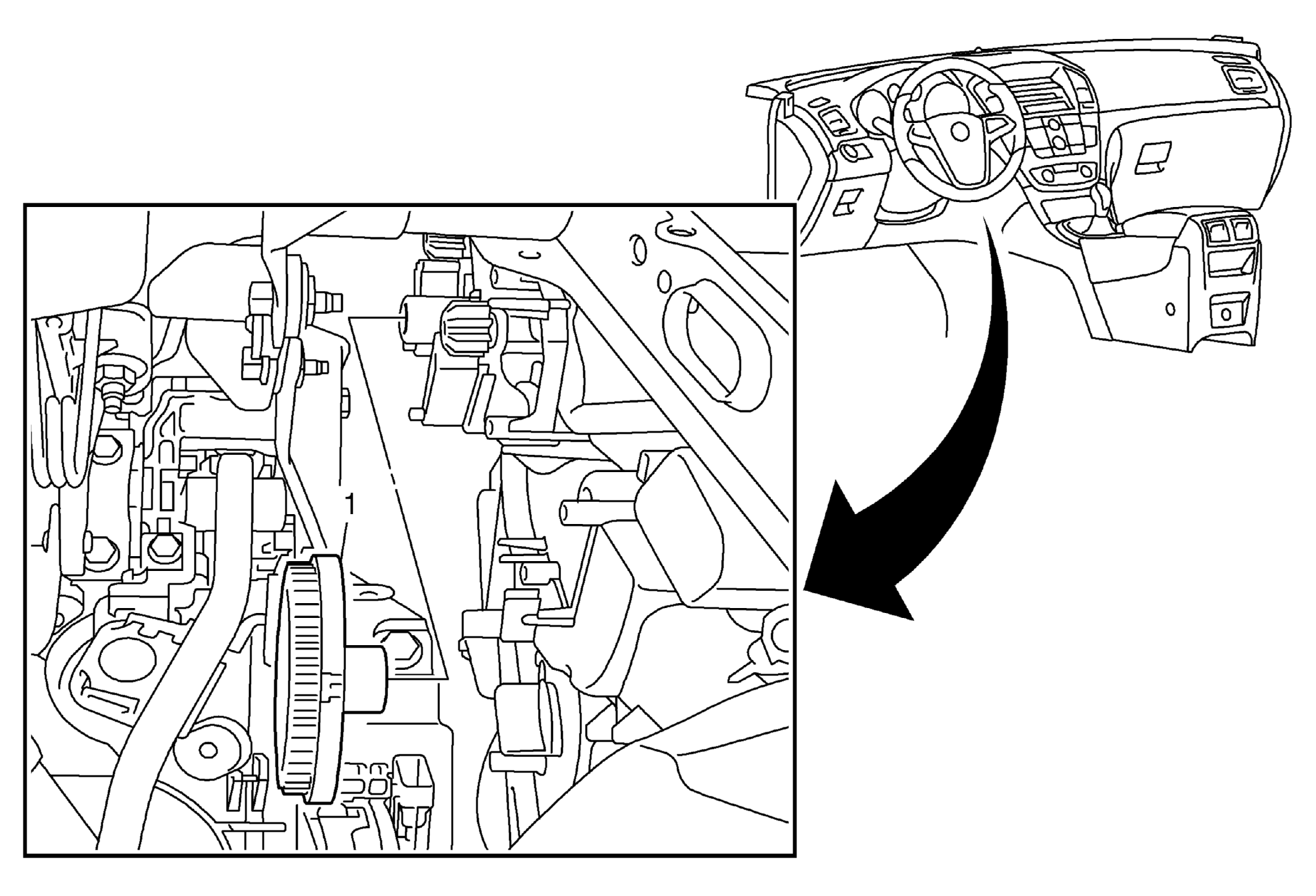

Fig 1: Mode Control Cam
GM2193961Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the instrument panel lower trim panel - driver side. Refer to Instrument Panel Lower Trim Panel Replacement - Left Side .
  2. Remove the floor air outlet duct - driver side. Refer to Floor Air Outlet Duct Replacement - Left Side .
  3. Remove the mode control cam actuator. Refer to Mode Control Cam Actuator Replacement .
1 Mode Control Cam

Procedure

  1. Release and pull off the control cam.
  2. The mode control cam can only be fitted in one position.
