Mode Control Cam Actuator Replacement (Left Hand Drive)

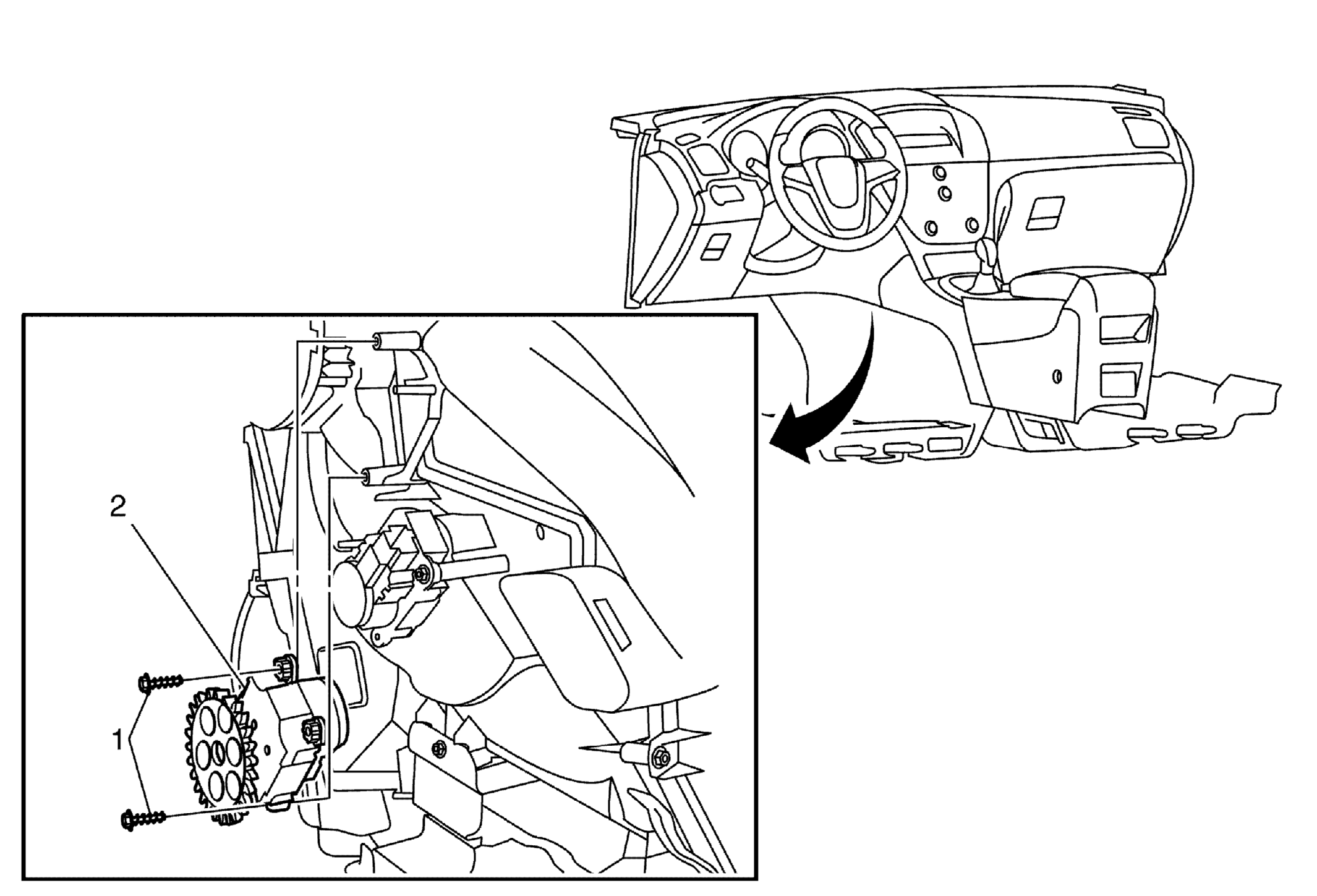

Fig 1: Mode Control Cam Actuator & Fasteners (Left Hand Drive)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Without Start/Stop) . Remove the instrument panel lower trim panel - left side. Refer to Instrument Panel Lower Trim Panel Replacement - Left Side . Remove the floor air outlet duct - left side. Refer to Floor Air Outlet Duct Replacement - Left Side .
1	Mode Control Cam Actuator Fastener (Qty:2) Procedure Disconnect the mode control cam actuator electrical connector.
2	Mode Control Cam Actuator TIP: The actuator is self-calibrating when connecting the battery.

Callout

Component Name

Preliminary Procedures

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Without Start/Stop) .
Remove the instrument panel lower trim panel - left side. Refer to Instrument Panel Lower Trim Panel Replacement - Left Side .
Remove the floor air outlet duct - left side. Refer to Floor Air Outlet Duct Replacement - Left Side .

Mode Control Cam Actuator Fastener (Qty:2)
Procedure
Disconnect the mode control cam actuator electrical connector.

Mode Control Cam Actuator
TIP: The actuator is self-calibrating when connecting the battery.
