Floor Air Outlet Duct Replacement - Left Side

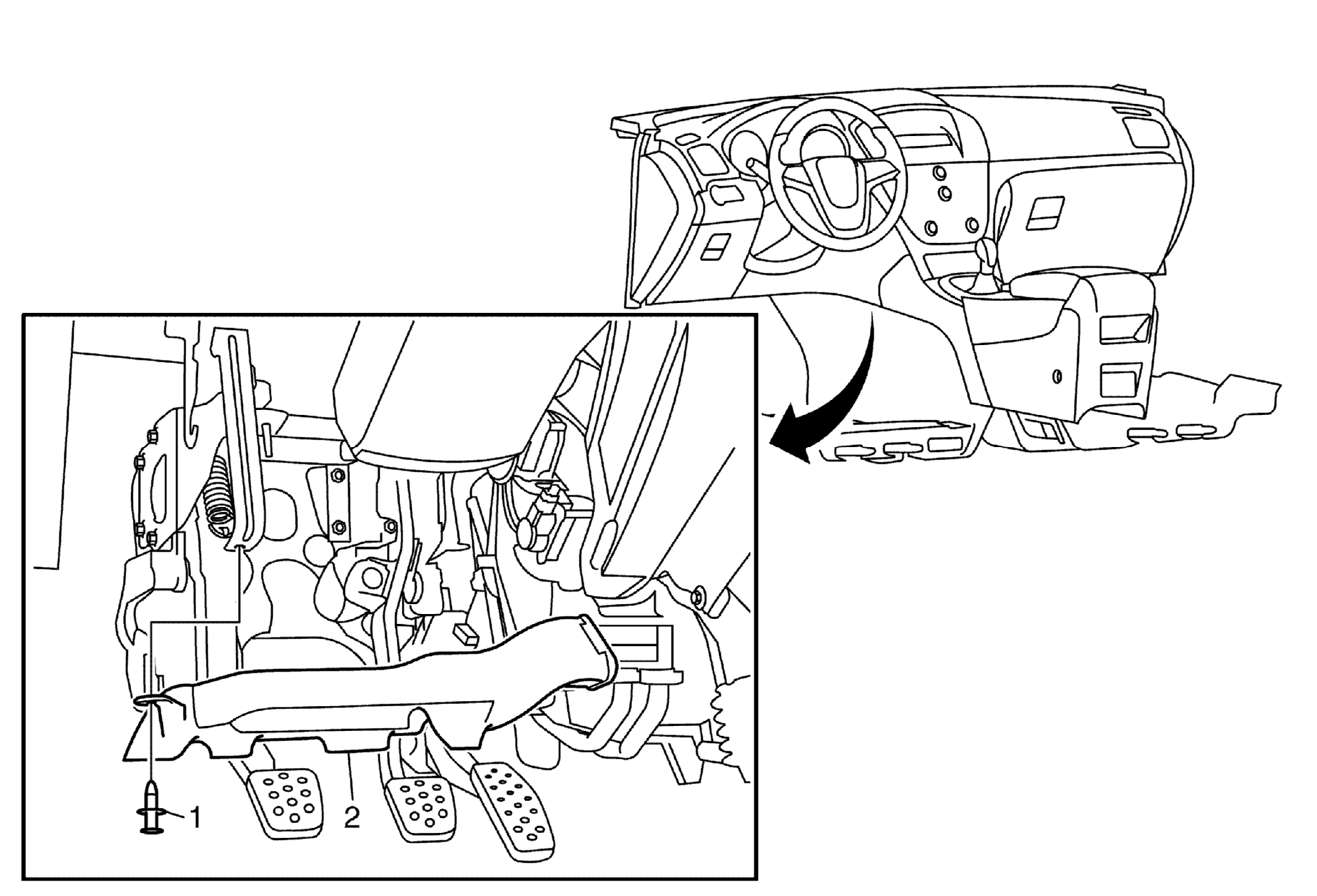

Fig 1: Floor Air Outlet Duct - Left Side
GM2020221Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the instrument panel (I/P) lower trim panel - left side. Refer to Instrument Panel Lower Trim Panel Replacement - Left Side .
  2. Remove the I/P lower trim panel insulator. Refer to Instrument Panel Lower Trim Panel Insulator Replacement .
1 Floor Air Outlet Duct Retainer
2 Floor Air Outlet Duct
