Brake, Accelerator, and Clutch Pedal Replacement

Preliminary Procedures

1. Remove the front floor console. Refer to Front Floor Console Replacement .
2. Remove the instrument panel lower trim panel. Refer to Instrument Panel Lower Trim Panel Replacement - Left Side .
3. Remove the instrument panel outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement - Left Side .
4. Remove the windshield side garnish molding. Refer to Windshield Side Garnish Molding Replacement .
5. Remove the front and rear side door sill trim.
6. Remove the 2 fasteners to the power vacuum brake booster. Refer to Power Vacuum Brake Booster Replacement .
7. Remove the clutch master cylinder. Refer to Clutch Master Cylinder Replacement .
8. Remove the steering column. Refer to Steering Column Replacement .
9. Release the hood release handle and release the instrument panel tie bar and lift it out and secure the tie bar approximately 40 mm out, on the left side of the car. The fasteners to the pedal assembly needs to be removed before the tie bar is released. Refer to Instrument Panel Tie Bar Replacement .

Procedure

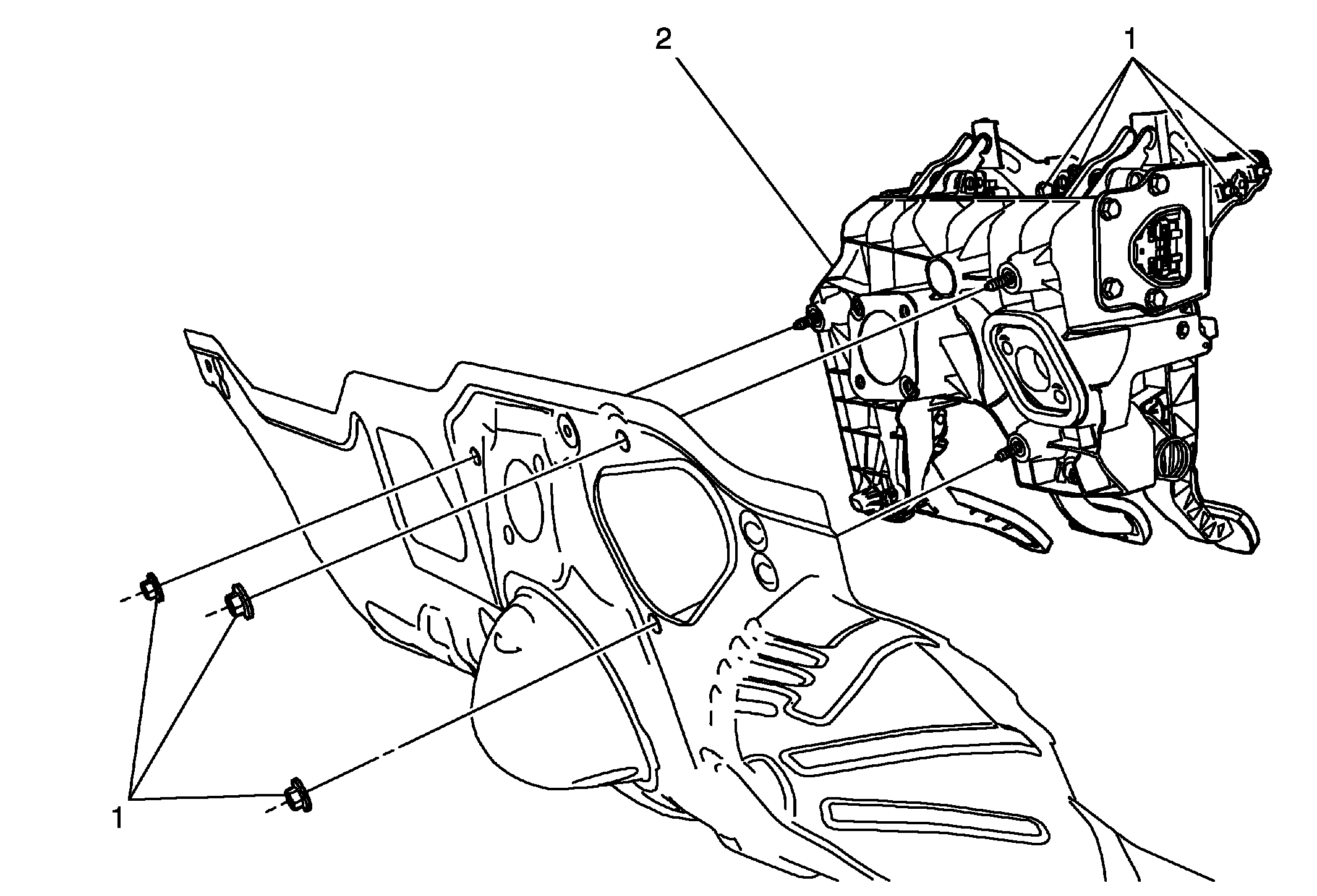

1. Remove the electrical connectors.
2. Release the brake pedal from the pushrod, by pulling the pedal backwards.
3. Install the NEW click fit connector on the brake pedal arm.
