Preliminary Procedures
- Remove the instrument panel (I/P) assembly. Refer to Instrument Panel Assembly Replacement .
- Remove both front and rear side door still trim plates. Refer to Front and Rear Side Door Sill Trim Plate Replacement
.
- Remove the steering column. Refer to Steering Column Replacement
.
- Remove the body control module bracket. Refer to Body Control Module Bracket Replacement
.
- Remove the fasteners securing the brake and accelerator pedal assembly to the tie bar. Refer to Brake and Accelerator Pedal Assembly Replacement
.
- Remove the instrument panel electrical center from the tie bar.
|

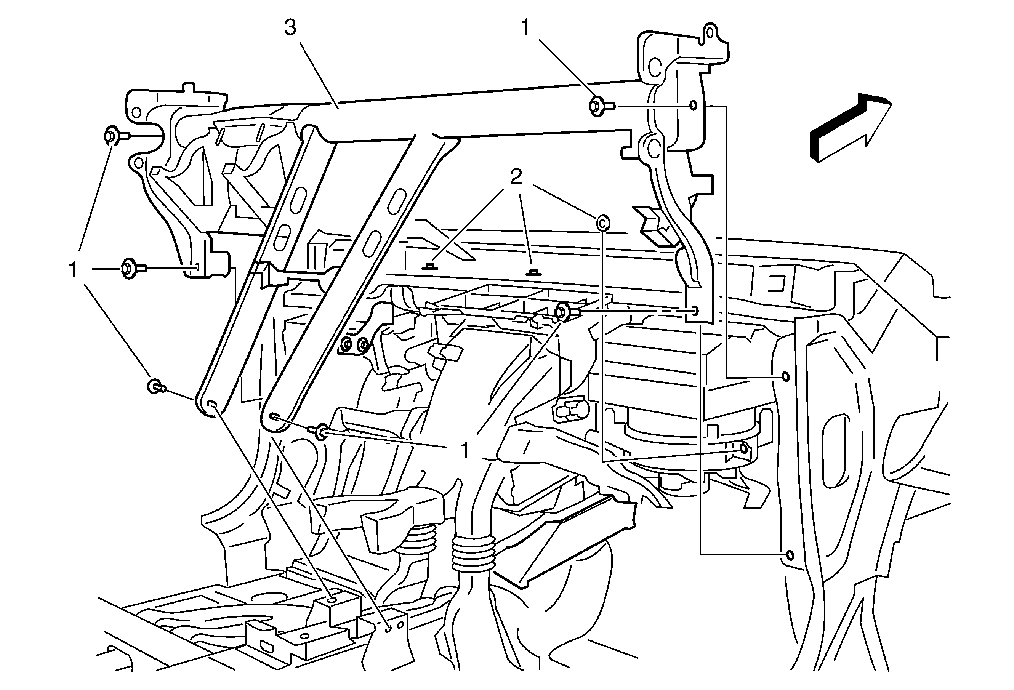

| 1 |
Instrument Panel Tie Bar Assembly Fastener (Qty:6)
Tighten
22 N.m (16 lb ft) |
| 2 |
Heater and Air Conditioning Evaporator and Blower Module Fastener (Qty:3)
Procedure
Release the heater and air conditioning evaporator and blower module from the I/P tie bar and secure the module at the body.
Tighten
5 N.m (44 lb in) |
| 3 |
Instrument Panel Tie Bar Assembly Procedures
- Remove the hood release handle.
- Note location and routing of the I/P wiring harness prior to removal of the I/P tie bar assembly to ensure proper reinstallation.
- Disconnect the wiring harness from the I/P tie bar assembly.
- With the aid of an assistant, remove the I/P tie bar assembly from the vehicle.
- If replacing the I/P tie bar assembly, transfer all necessary components.
|
