Clutch Master Cylinder Replacement

WARNING: This page is about a different variant/trim than selected.

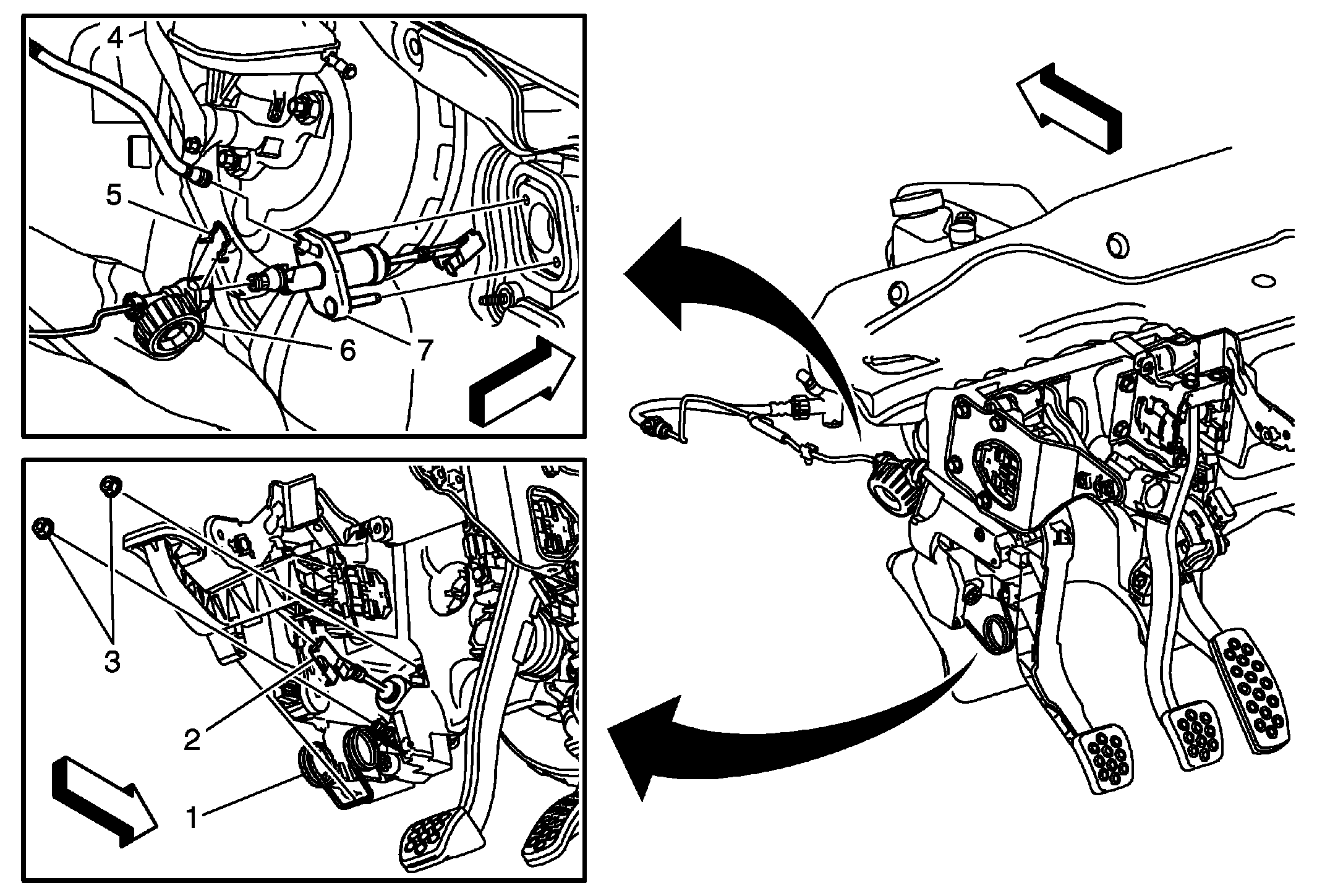

Fig 1: Clutch Master Cylinder & Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Brake Fluid Irritant Warning . CAUTION: Refer to Brake Fluid Effects on Paint and Electrical Components Caution . Preliminary Procedures Remove the instrument panel lower trim panel insulator. Refer to Instrument Panel Lower Trim Panel Insulator Replacement . Remove the radiator surge tank. Refer to Radiator Surge Tank Replacement (LTD) .
1	Clutch Pedal Return Spring Procedure Release the spring from the underside of the clutch pedal.
2	Clutch Pedal Master Cylinder Rod Procedure Depress the clutch pedal master cylinder rod retainers. Lift the clutch pedal upwards. Release the clutch pedal master cylinder rod.
3	Clutch Master Cylinder Fastener (Qty:2) CAUTION: Refer to Fastener Caution . Procedure Release the retainers from the pedal housing. Rotate the retainers inside the clutch pedal. Remove the clutch pedal retainers. Tighten 22 N.m (16 lb ft)
4	Clutch Master Cylinder Inlet Pipe Procedure Release the clutch master cylinder inlet pipe from the master cylinder.
5	Clutch Master Cylinder Outlet Pipe Retainer Procedure Lift the retainer upwards to release the clutch master cylinder outlet pipe.
6	Clutch Master Cylinder Modulator Outlet Pipe Procedure Release the clutch master cylinder modulator outlet pipe from the master cylinder.
7	Clutch Master Cylinder Procedure Bleed the hydraulic clutch. Refer to Hydraulic Clutch System Bleeding .
