Removal Procedure

  1. Drain the cooling system. Refer to Cooling System Draining and Filling (GE 47716) .
  2. Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement (LTG) .
  3. Remove the exhaust manifold heat shield. Refer to EXHAUST MANIFOLD HEAT SHIELD REPLACEMENT (LTG) .
  4. Remove the battery tray. Refer to Battery Tray Replacement .
    5. Fig 1: Radiator Inlet Hose And Water Outlet
    GM2865056Courtesy of GENERAL MOTORS COMPANY
  5. Remove the radiator inlet hose (1) from the water outlet (2).

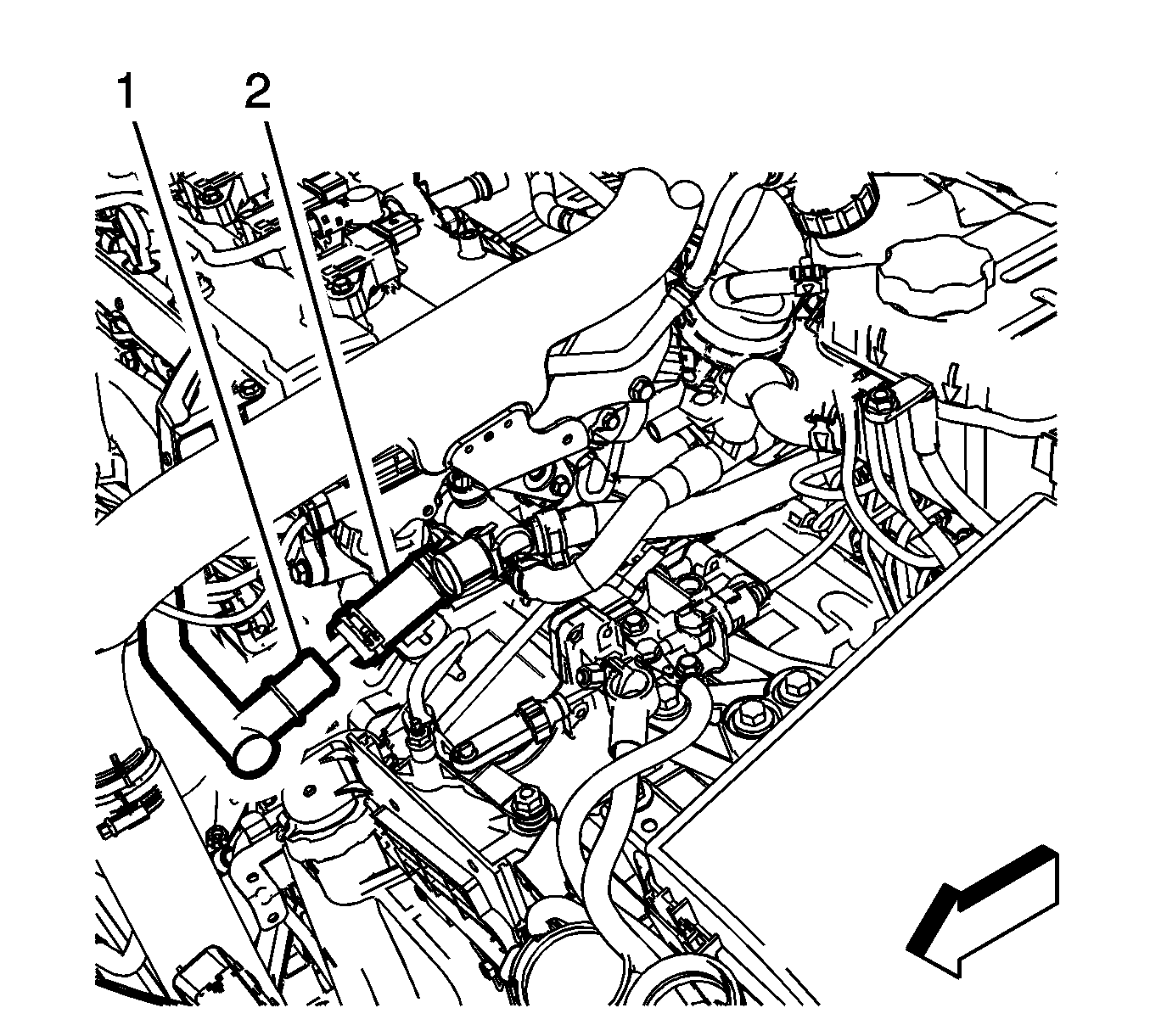

    6. Fig 2: Thermostat Bypass Hose
    GM2866280Courtesy of GENERAL MOTORS COMPANY
  6. Remove the thermostat bypass hose (2) from the thermostat bypass pipe (1).

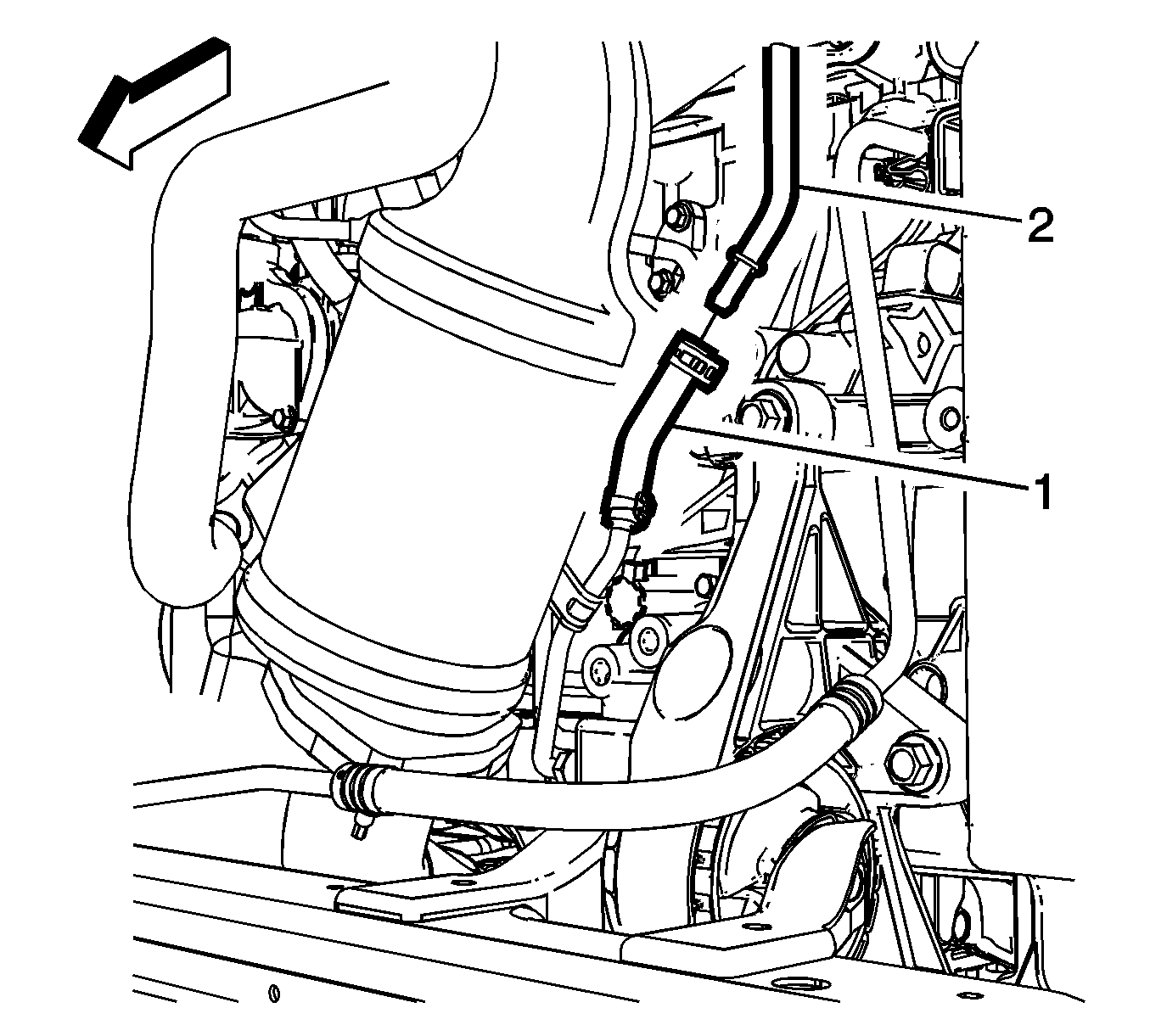

    7. Fig 3: Thermostat Bypass Pipe
    GM2874426Courtesy of GENERAL MOTORS COMPANY
  7. Remove the hose (1) from the thermostat bypass pipe (2).
    8. Fig 4: Thermostat Bypass Pipe Fasteners
    GM2863953Courtesy of GENERAL MOTORS COMPANY
  8. Remove the thermostat bypass pipe fasteners (1).
  9. Remove the thermostat bypass pipe (2) and discard the gasket (3).
