Battery Tray Replacement

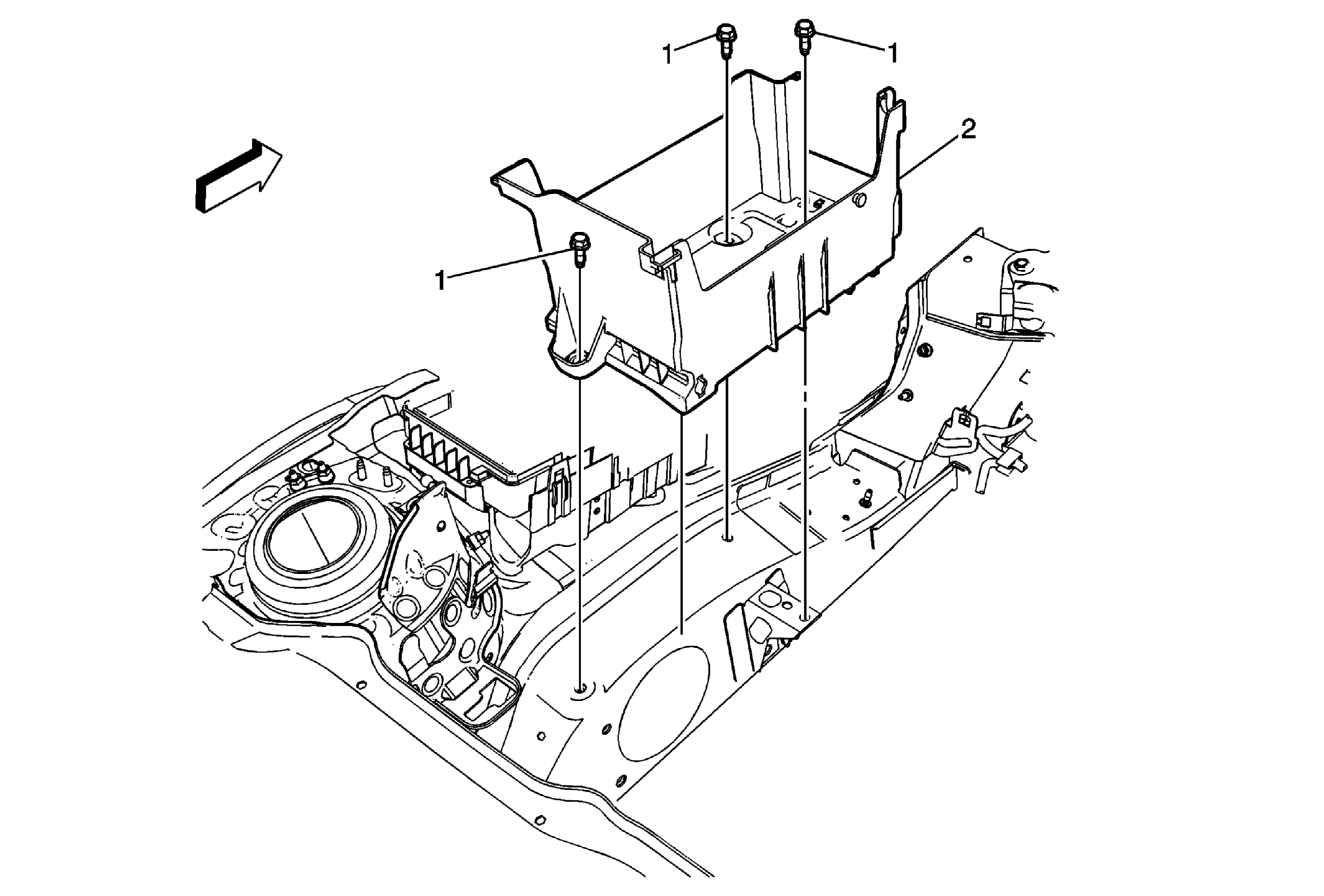

Fig 1: Battery Tray & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the battery. Refer to Battery Replacement . Remove the engine control module. Refer to Engine Control Module Replacement , for the 2.0L engine or Engine Control Module Replacement for the 2.4L engine .
1	Battery Tray Bolt (Qty:3) CAUTION: Refer to Fastener Caution . Tighten 20 N.m (15 lb ft)
2	Battery Tray TIP: Unclip harnesses as necessary.
