Intake Manifold Cover Replacement

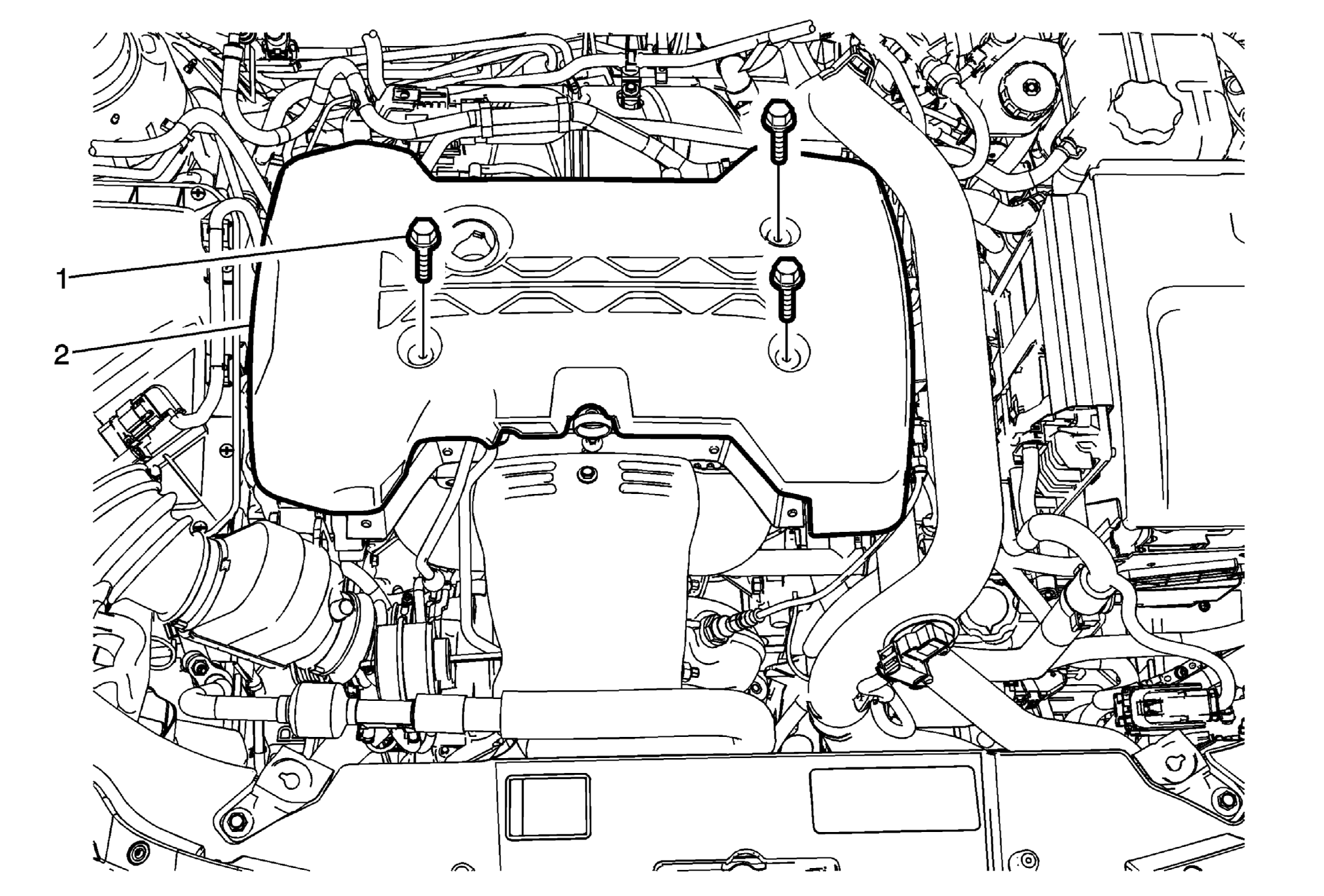

Fig 1: Intake Manifold Cover (LTG)
GM2868557Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Intake Manifold Cover Fastener (Qty,3)
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Intake Manifold Cover
Procedure
Remove the oil cap before removing the intake manifold cover.
