Exhaust Manifold Heat Shield Replacement (LTG)

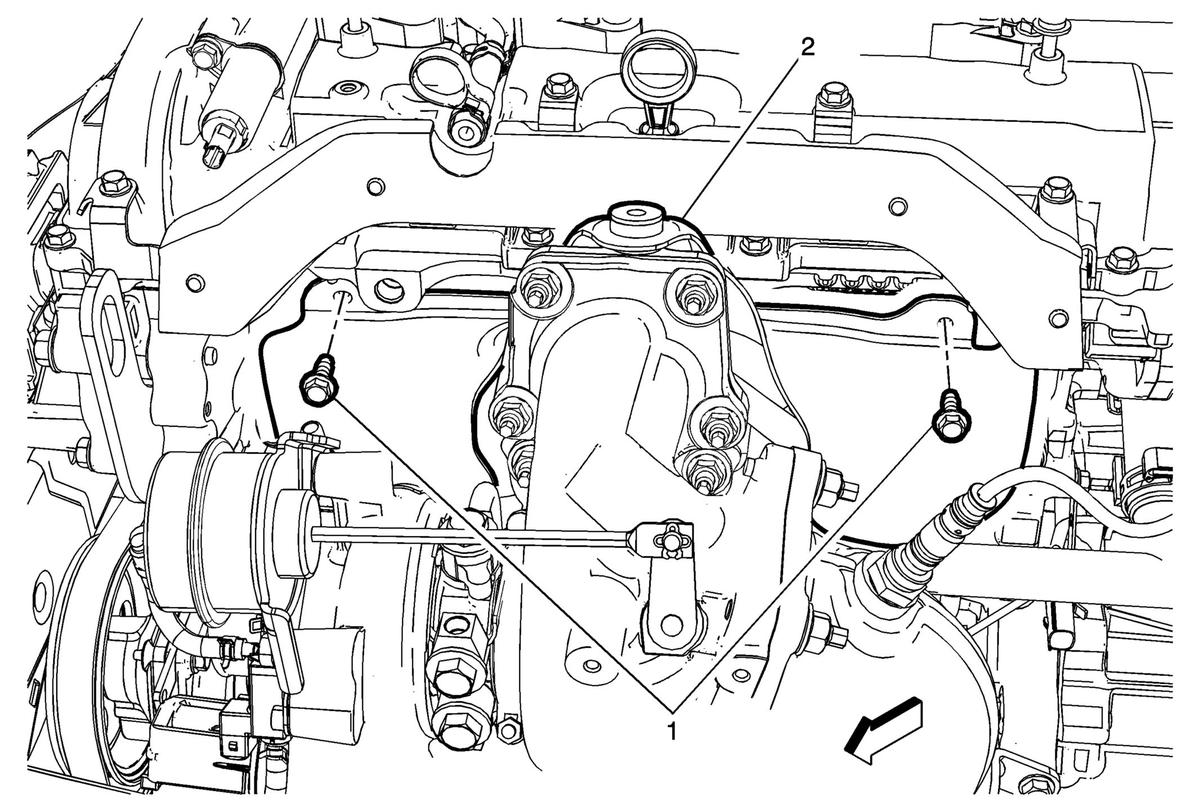

Fig 1: Exhaust Manifold Heat Shield (LTG)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Hot Exhaust System Warning . Preliminary Procedure Remove the turbocharger heat shield. Refer to Turbocharger Heat Shield Replacement . Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement (LTG) . Remove the turbocharger. Refer to Turbocharger Replacement .
1	Exhaust Manifold Heat Shield Fasteners (Qty:2) CAUTION: Refer to Fastener Caution . Tighten: 14 N.m (10 lb ft)
2	Exhaust Manifold Heat Shield

Callout

Component Name

WARNING:

Preliminary Procedure

Remove the turbocharger heat shield. Refer to Turbocharger Heat Shield Replacement .
Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement (LTG) .
Remove the turbocharger. Refer to Turbocharger Replacement .

Exhaust Manifold Heat Shield Fasteners (Qty:2)

CAUTION:

Tighten:
14 N.m (10 lb ft)

Exhaust Manifold Heat Shield
