Removal Procedure

Drain the engine cooling system. Refer to Cooling System Draining and Filling (GE 47716) .

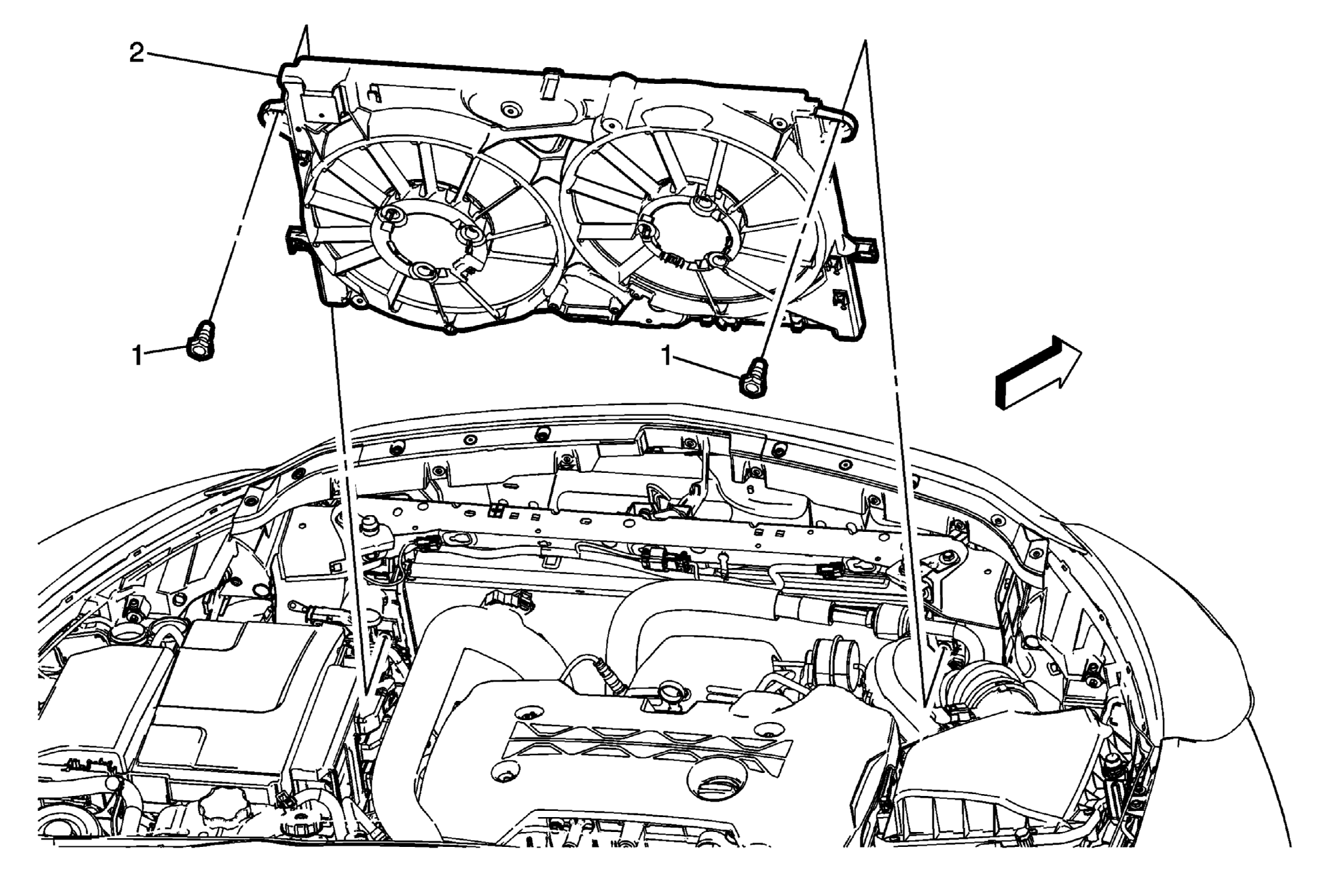

Fig 1: Engine Coolant Fan Shroud

Courtesy of GENERAL MOTORS COMPANY

Remove the engine coolant fan shroud (2) from the radiator. Refer to Engine Coolant Fan Shroud Replacement (LTG) .

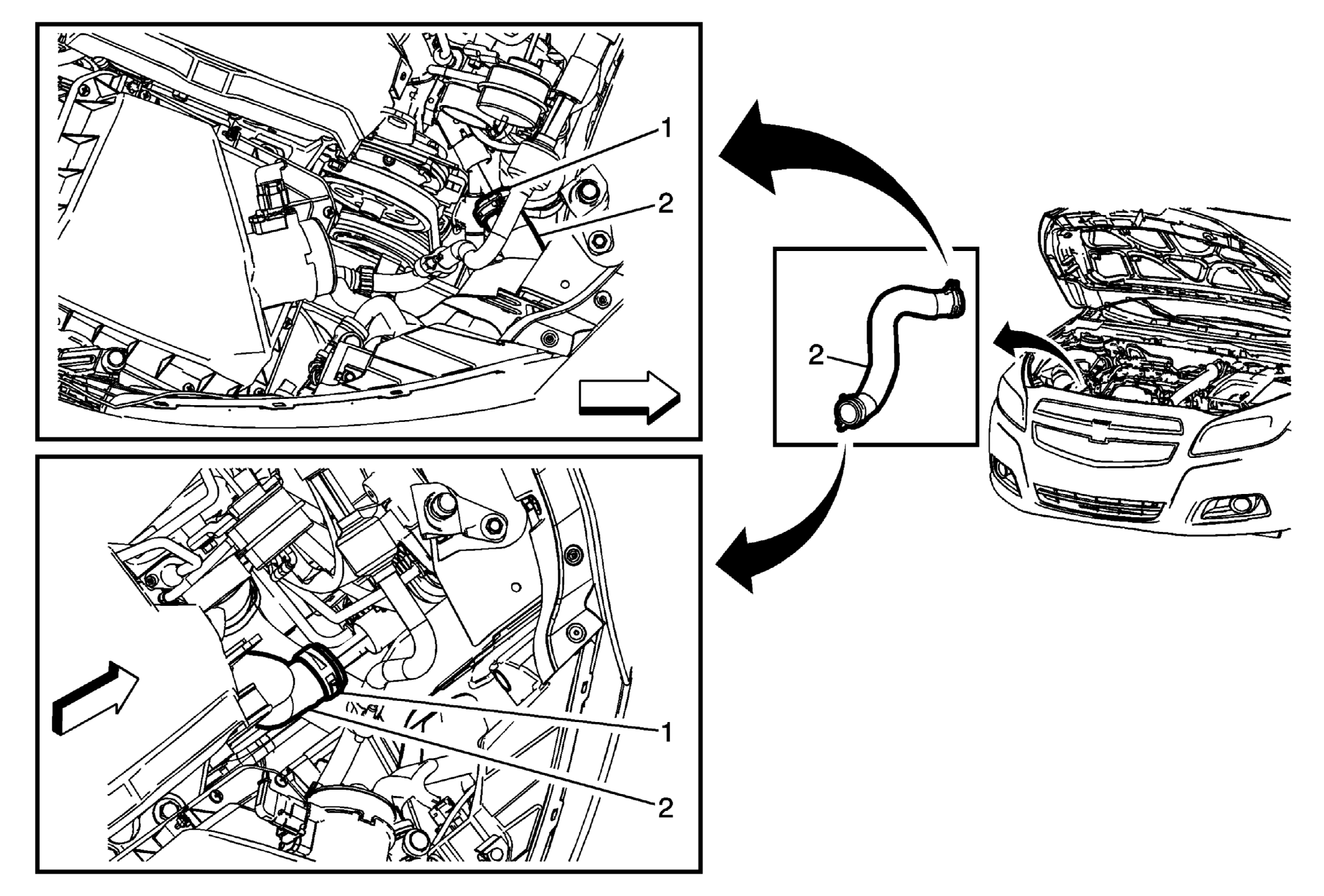

Fig 2: Radiator Outlet Hose

Courtesy of GENERAL MOTORS COMPANY

Remove the radiator outlet hose (2) from the radiator. Refer to Radiator Outlet Hose Replacement (LTG) .

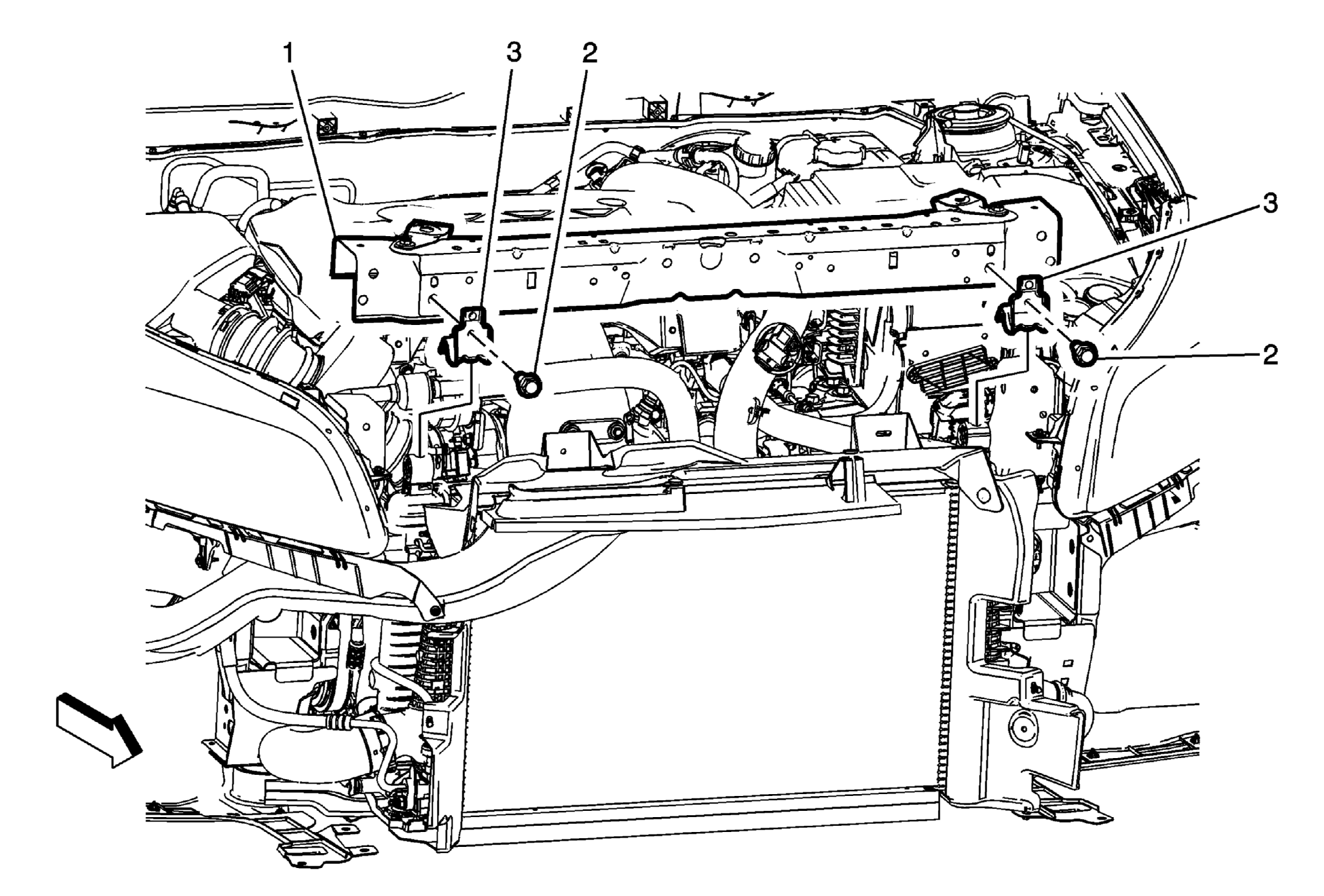

Fig 3: Radiator Upper Brackets

Courtesy of GENERAL MOTORS COMPANY

Remove the radiator upper brackets (3). Refer to Radiator Upper Bracket Replacement .

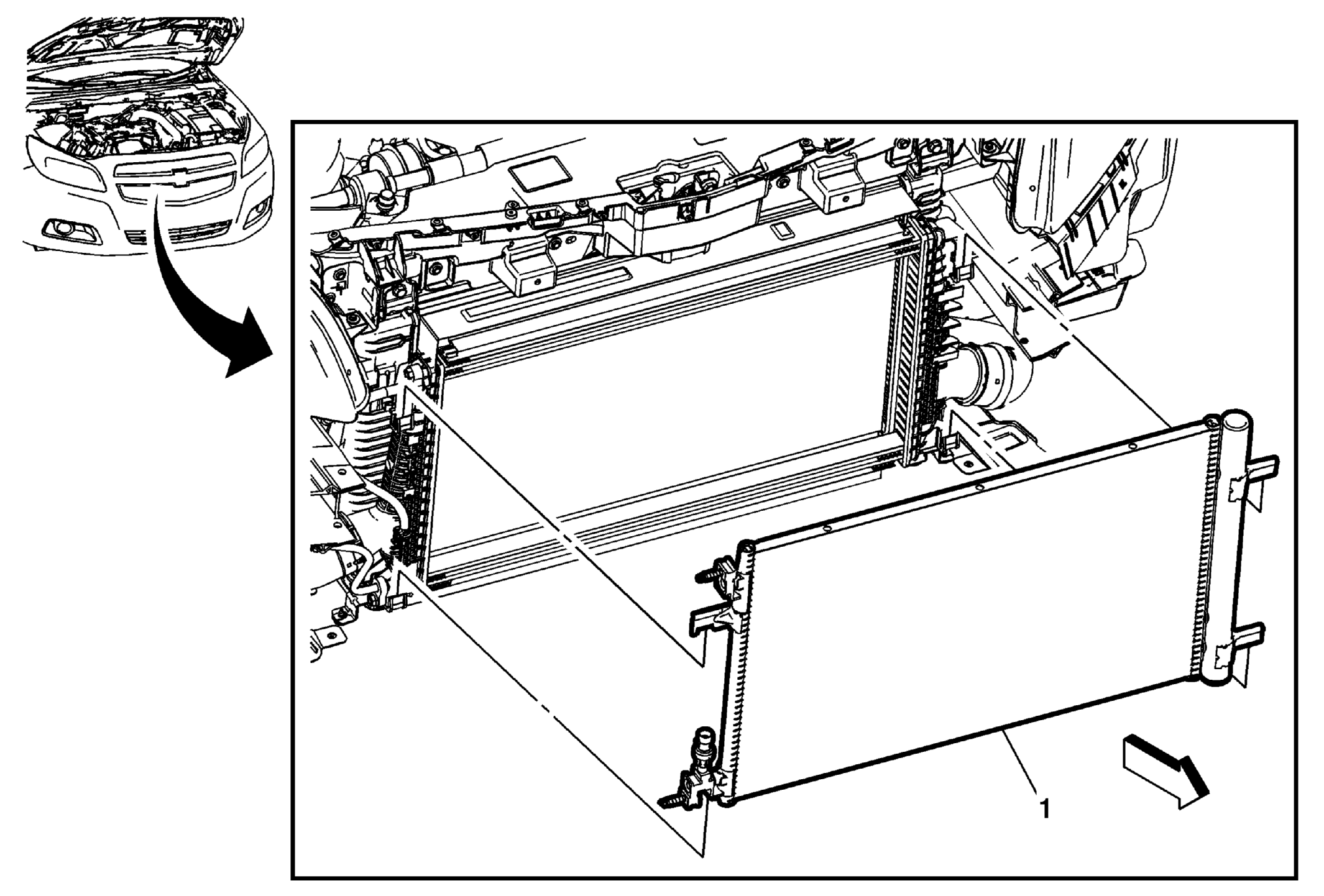

Fig 4: Air Conditioning Condenser

Courtesy of GENERAL MOTORS COMPANY

Remove the air conditioning condenser. Refer to Air Conditioning Condenser Replacement (LTG) .

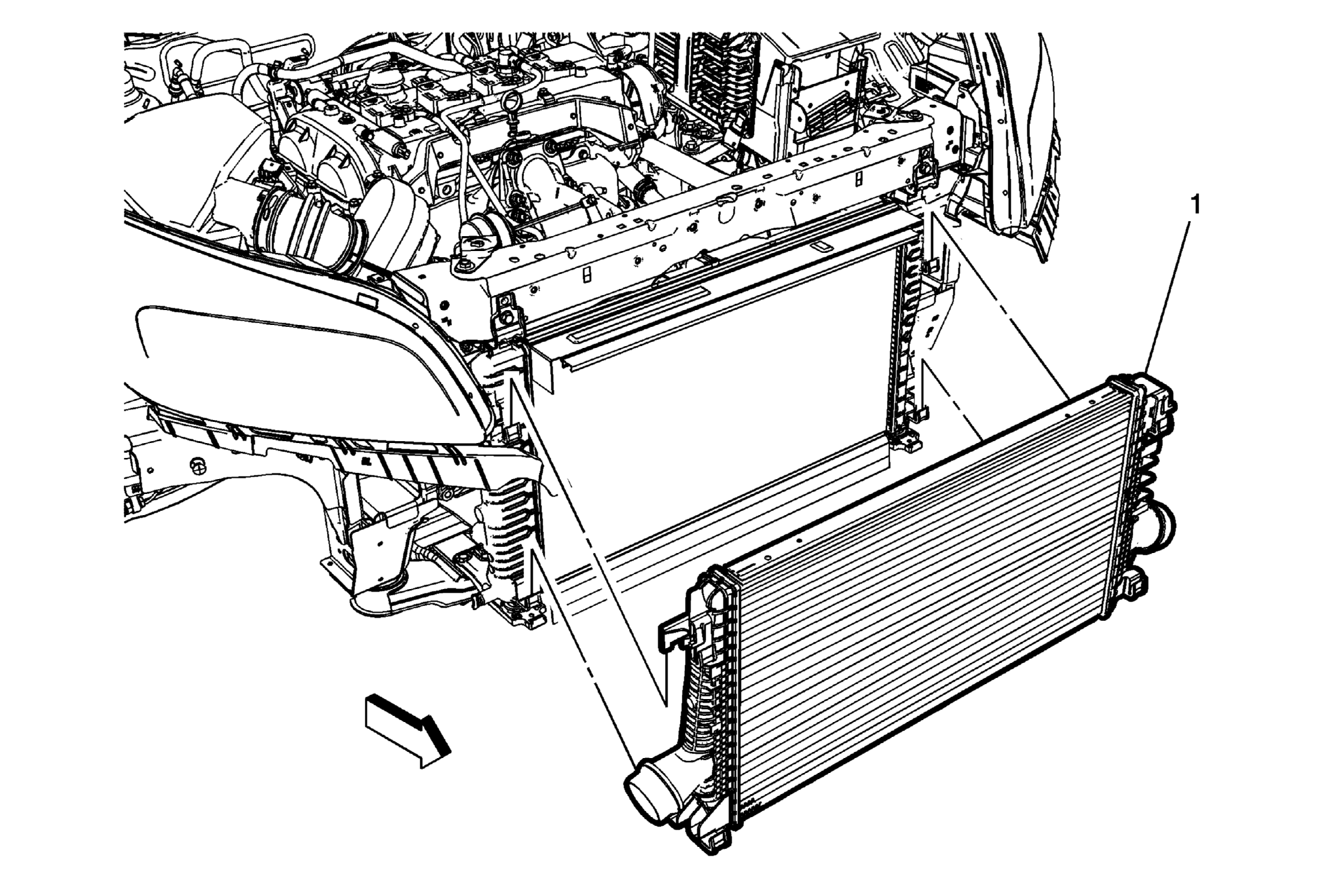

Fig 5: Charge Air Cooler Radiator

Courtesy of GENERAL MOTORS COMPANY

Remove the charge air cooler radiator (1). Refer to Charge Air Cooler Radiator Replacement .

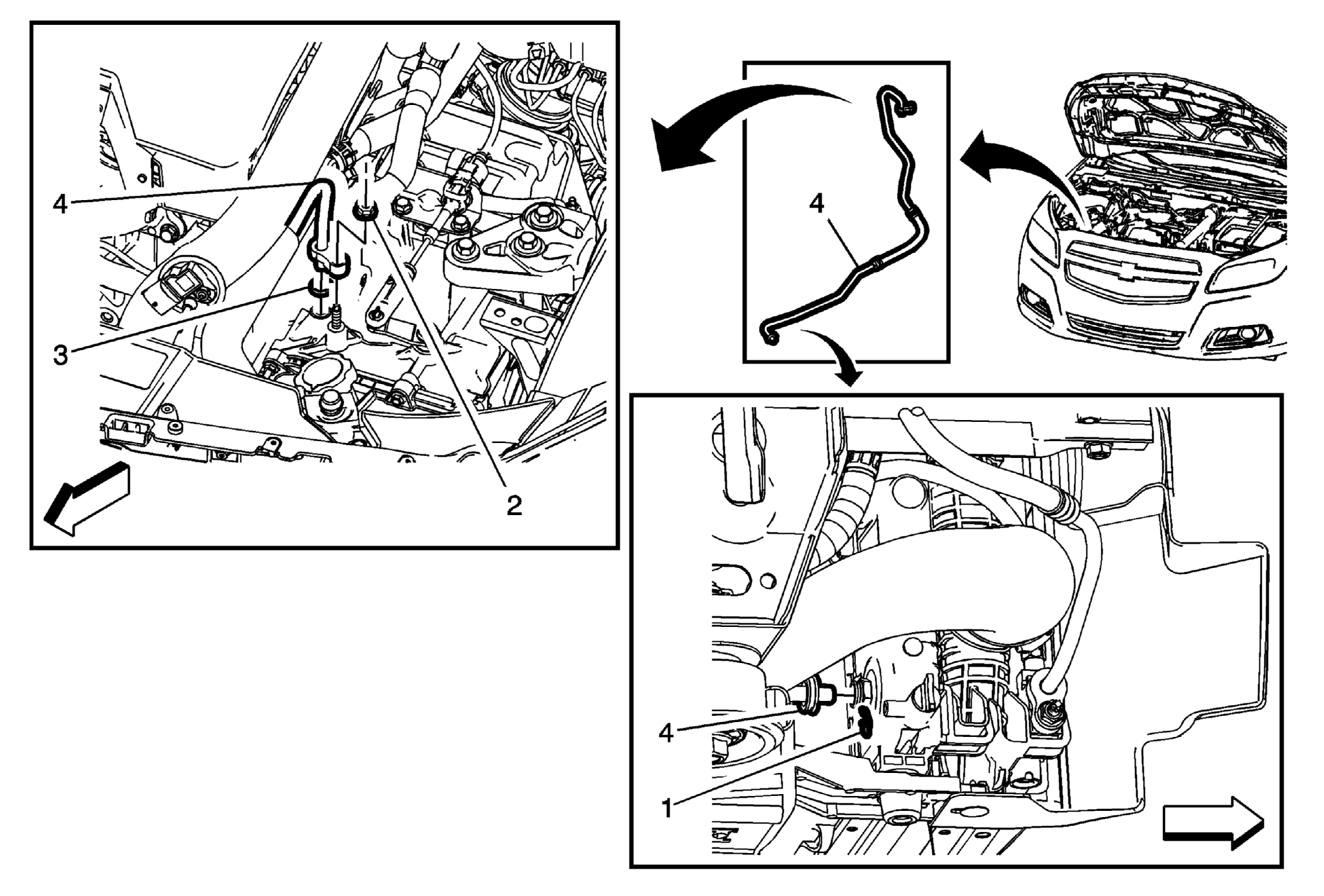

Fig 6: Transmission Fluid Cooler Outlet Pipe And Radiator

Courtesy of GENERAL MOTORS COMPANY

Remove the transmission fluid cooler outlet pipe from the radiator. Refer to Transmission Fluid Cooler Outlet Pipe Replacement (M7U) .

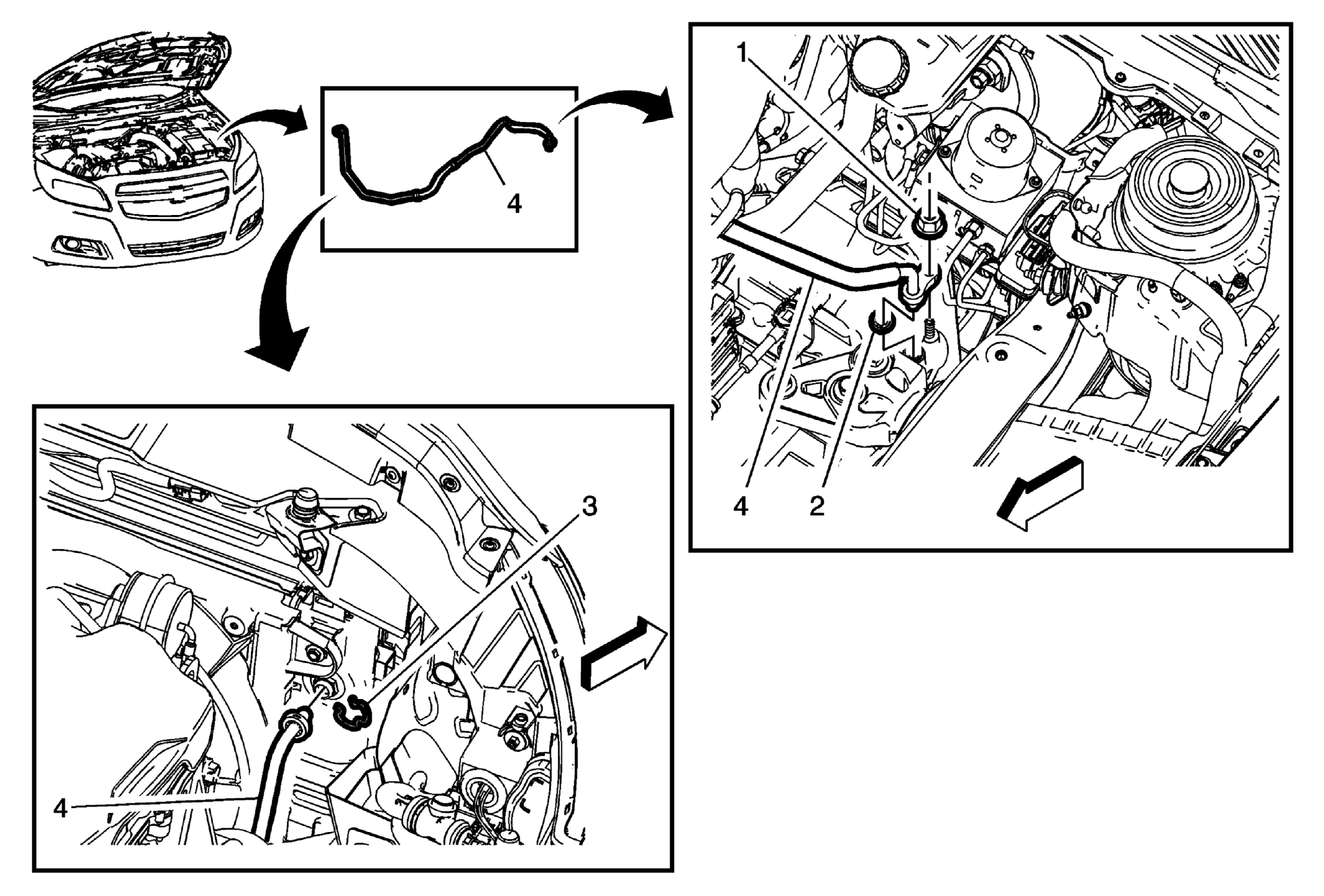

Fig 7: Transmission Fluid Cooler Inlet Pipe

Courtesy of GENERAL MOTORS COMPANY

Remove the transmission fluid cooler inlet pipe from the radiator. Refer to Transmission Fluid Cooler Inlet Pipe Replacement (M7U) .
Remove the radiator air seal.

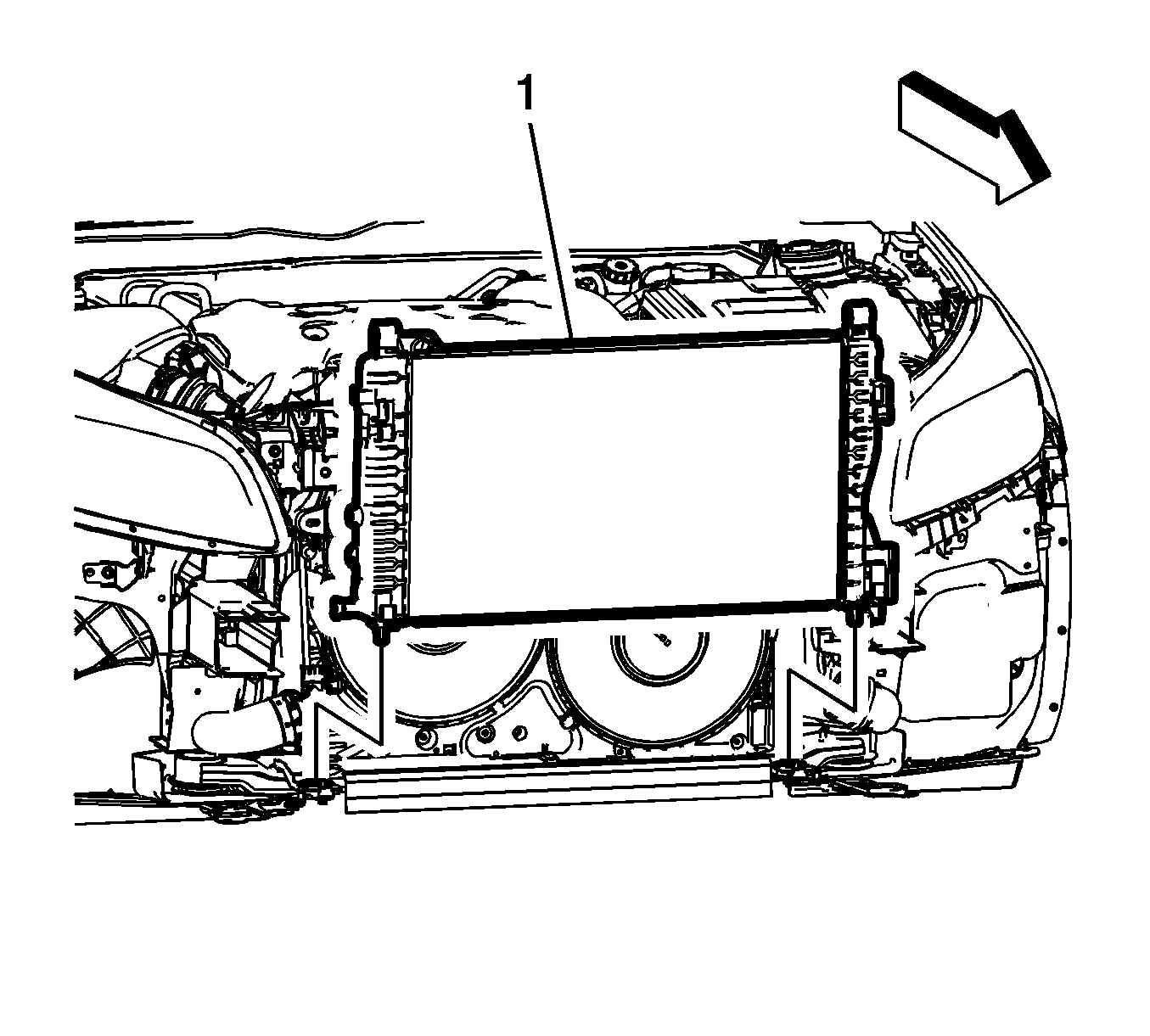

Fig 8: Radiator

Courtesy of GENERAL MOTORS COMPANY
