Transmission Fluid Cooler Outlet Pipe Replacement (M7U)

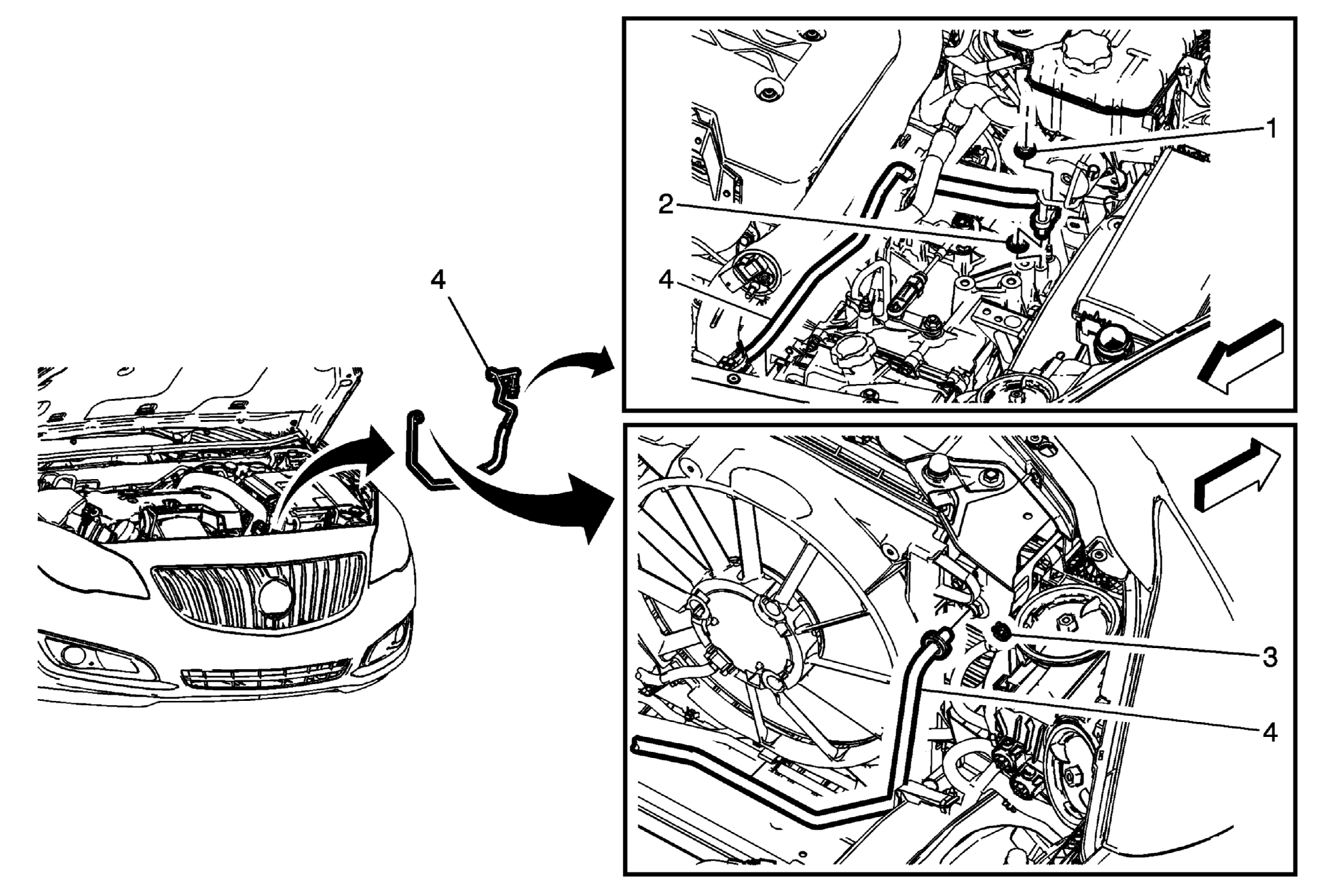

Fig 1: Transmission Fluid Cooler Outlet Pipe (M7U)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Remove the battery tray. Refer to Battery Tray Replacement . Cap the fittings and plug the holes when removing the transmission fluid cooler outlet pipe.
1	Transmission Fluid Cooler Outlet Pipe Nut CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Transmission Fluid Cooler Outlet Pipe Seal Procedure Remove and discard the sealing washers and replace with a NEW sealing washer.
3	Transmission Fluid Cooler Outlet Pipe Quick Disconnect Retaining Clip Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection (MHH, MHK) . Procedure Remove the transmission fluid cooler outlet pipe from the retaining clip on the engine coolant fan shroud.
4	Transmission Fluid Cooler Outlet Pipe Procedures Note the routing of the transmission fluid cooler outlet pipe to ensure proper installation. Remove the transmission fluid cooler outlet pipe from the retaining clip on the transmission. Adjust the transmission fluid level. Refer to Transmission Fluid Level and Condition Check . Inspect for fluid leaks.
