Radiator Outlet Hose Replacement (LTG)

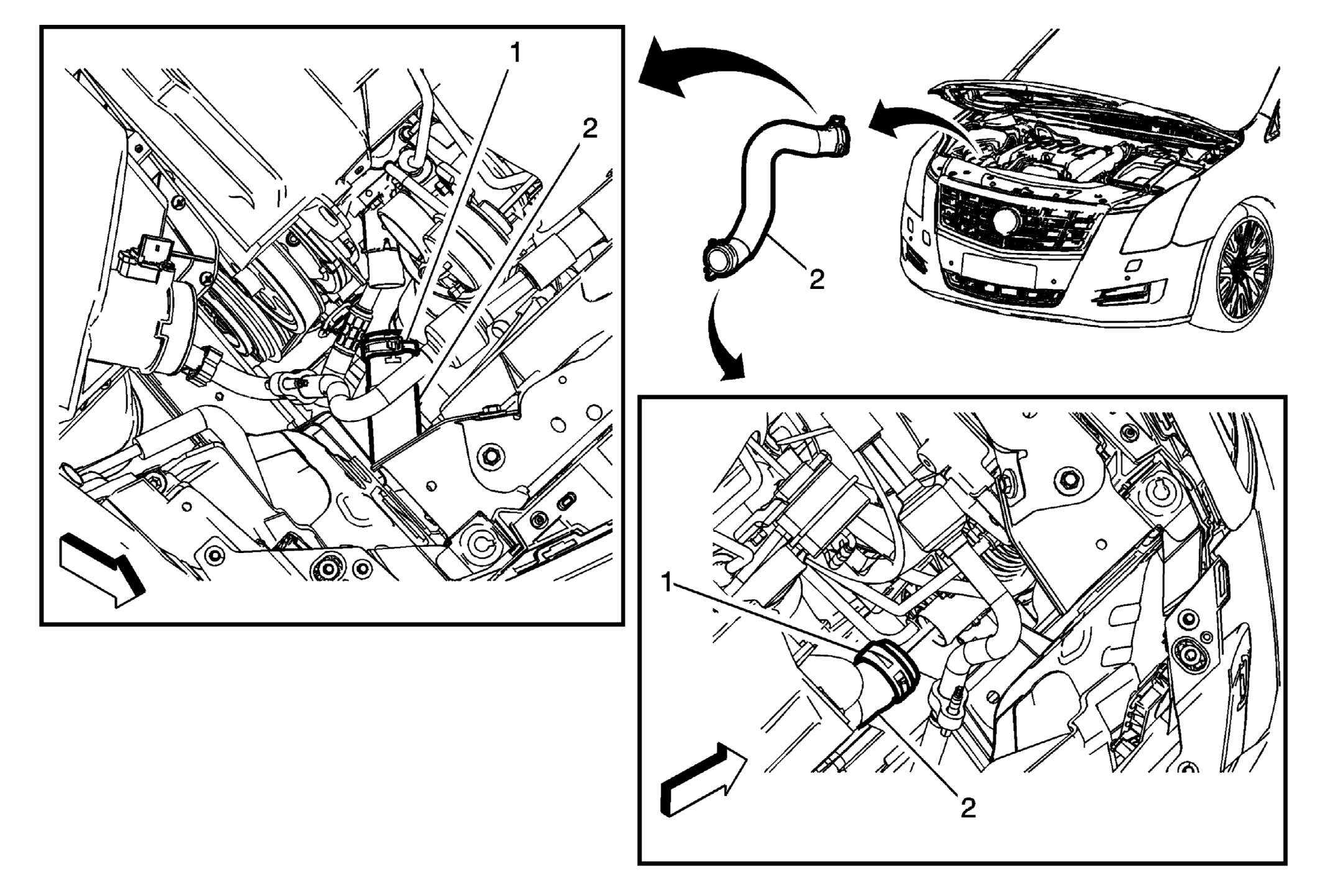

Fig 1: Radiator Outlet Hose (LTG)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement (LTG) . Drain the cooling system. Refer to Cooling System Draining and Filling (GE 47716) .
1	Radiator Outlet Hose Clamp (Qty:2) Procedure Reposition the radiator outlet hose clamps using the BO-38185 hose clamp pliers. Special Tools BO-38185 Hose Clamp Pliers For equivalent regional tools, refer to Special Tools .
2	Radiator Outlet Hose Procedure Fill the cooling system to the proper level. Refer to Cooling System Draining and Filling (GE 47716) . Inspect the cooling system for leaks. Refer to Cooling System Leak Testing .

Callout

Component Name

Preliminary Procedure

Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement (LTG) .
Drain the cooling system. Refer to Cooling System Draining and Filling (GE 47716) .

Radiator Outlet Hose Clamp (Qty:2)
Procedure
Reposition the radiator outlet hose clamps using the BO-38185 hose clamp pliers.
Special Tools
BO-38185 Hose Clamp Pliers
For equivalent regional tools, refer to Special Tools .

Radiator Outlet Hose

Procedure

Fill the cooling system to the proper level. Refer to Cooling System Draining and Filling (GE 47716) .
Inspect the cooling system for leaks. Refer to Cooling System Leak Testing .
