Engine Coolant Fan Shroud Replacement (LEA)

Preliminary Procedures

1. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
2. Remove the radiator outlet hose. Refer to Radiator Outlet Hose Replacement (LEA) .
3. Remove the transmission fluid cooler hoses. Refer to Fluid Cooler Inlet Hose Replacement (MHH) , and Fluid Cooler Outlet Hose Replacement .
4. Disconnect the engine coolant fan motor electrical connectors.
5. Unclip all wiring harness that are connected to the shroud.

Procedure

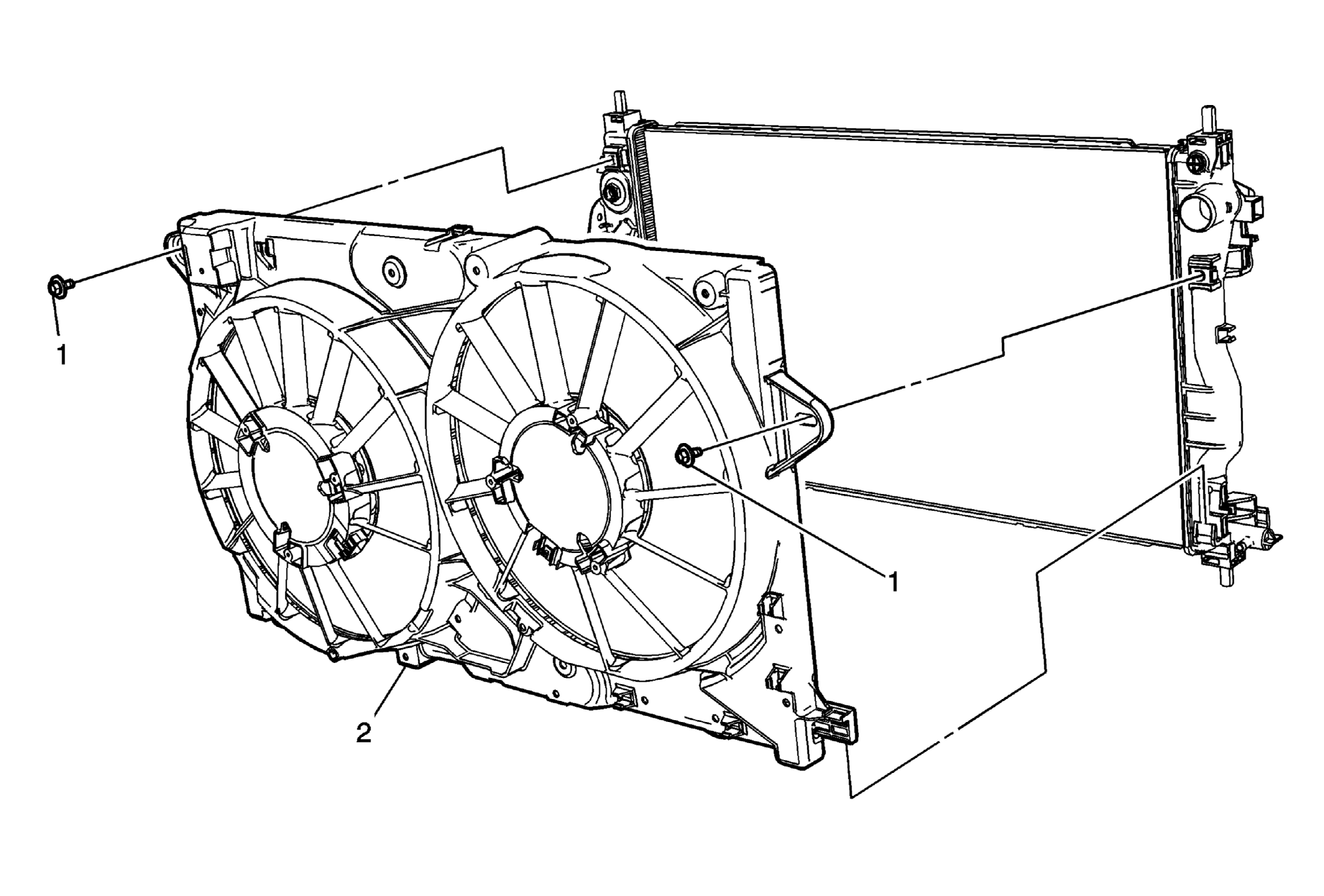

1. Release the 2 tabs at the lower retainers allowing the shroud to slide upward.
2. Reposition the A/C condenser and compressor hose without discharging the system.
