Radiator Outlet Hose Replacement (LEA)

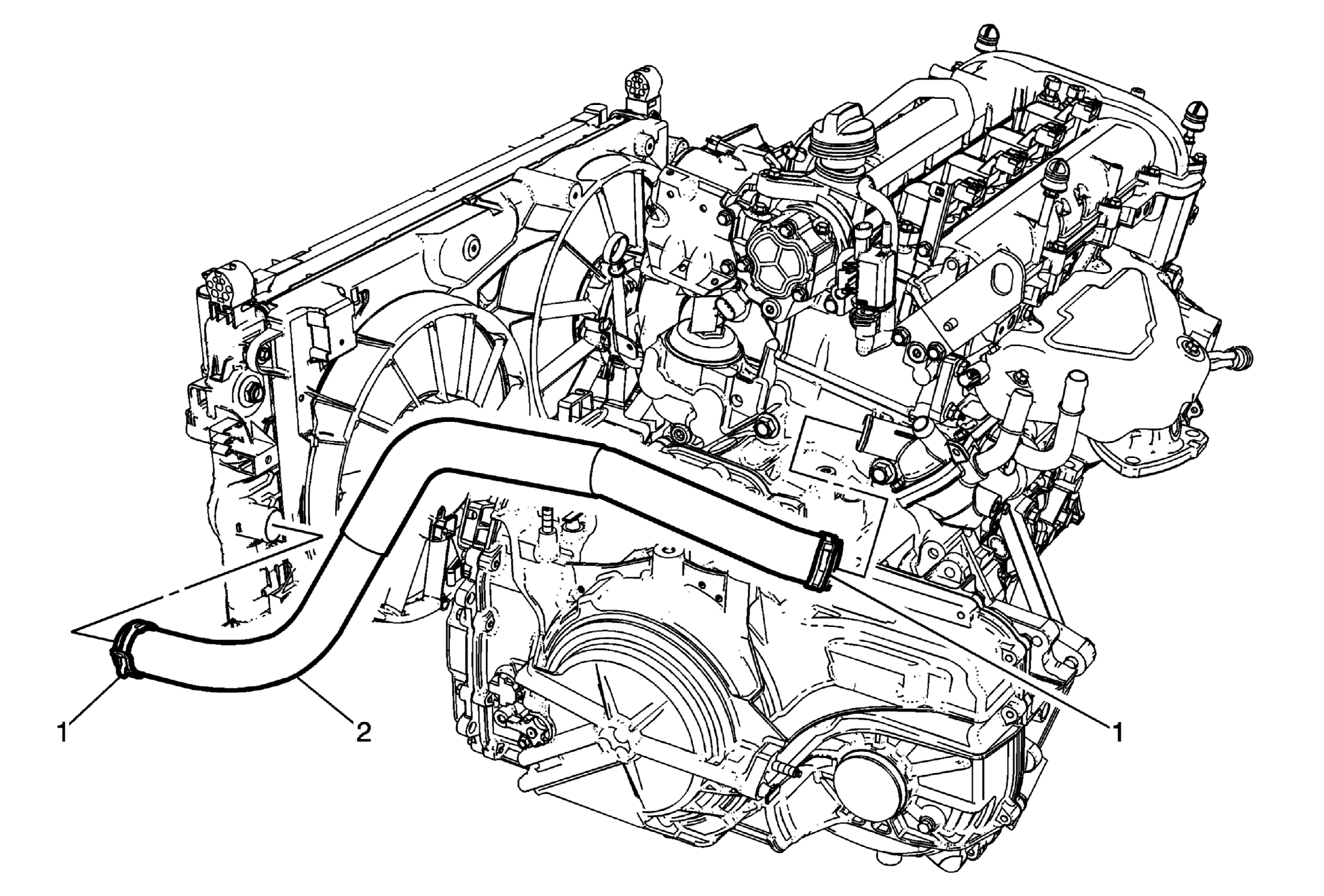

Fig 1: Radiator Outlet Hose (LEA)
GM2691792Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Drain the cooling system. Refer to Cooling System Draining and Filling (GE 47716) .
  2. Unclip radiator outlet hose from bracket.
1 Radiator Outlet Hose Clamp
Procedure
Reposition the radiator outlet hose clamp using BO38185  pliers.
Special Tools
BO38185  Hose Clamp Pliers
For equivalent regional tools, refer to Special Tools .
2 Radiator Outlet Hose
