Air Cleaner Outlet Duct Replacement

WARNING: This page is about a different variant/trim than selected.

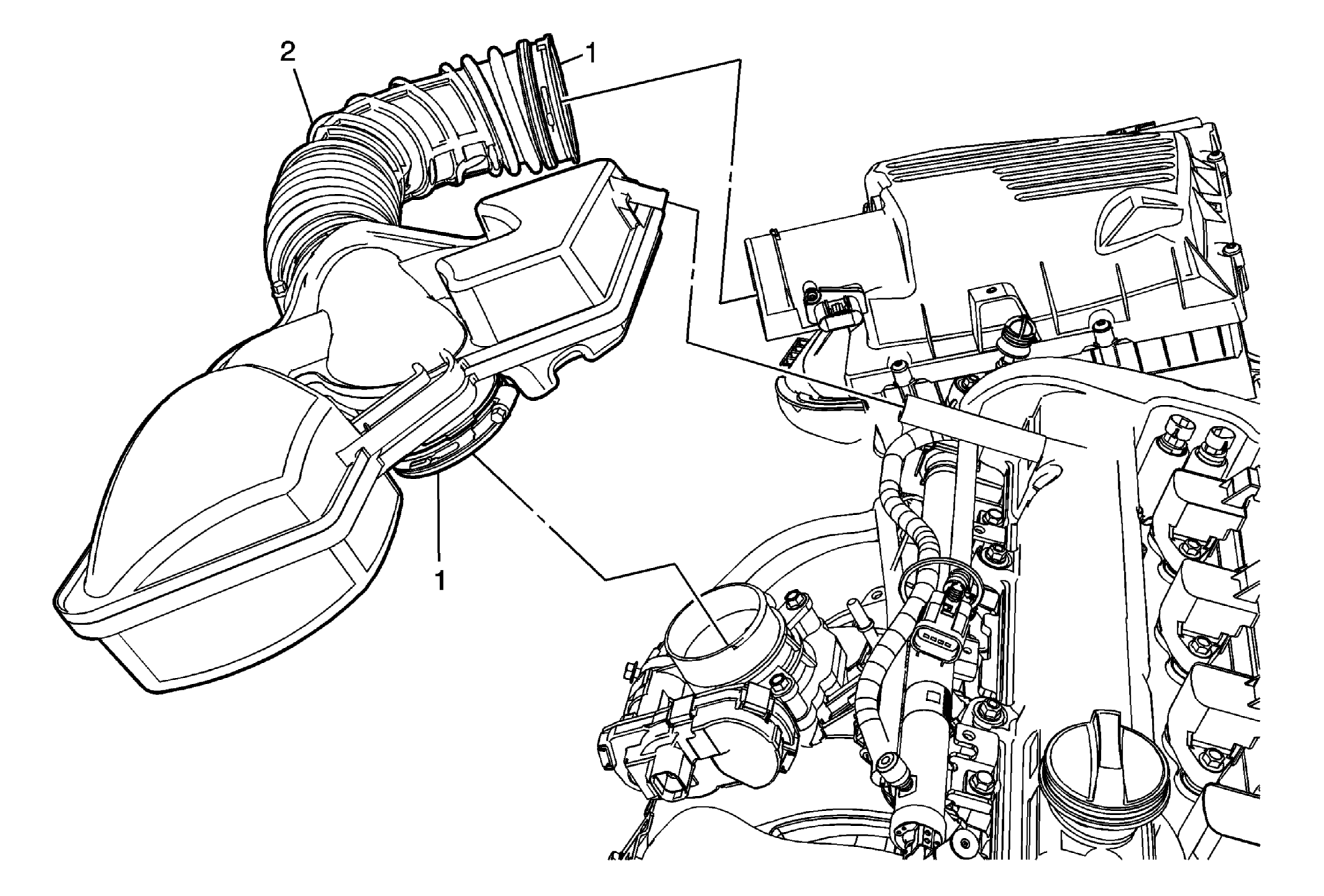

Fig 1: Air Cleaner Outlet Duct & Fasteners
GM2223549Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Air Cleaner Outlet Duct Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
4 N.m (35 lb in)
2 Air Cleaner Outlet Duct with Resonator
