Fluid Cooler Outlet Hose Replacement (MHH)

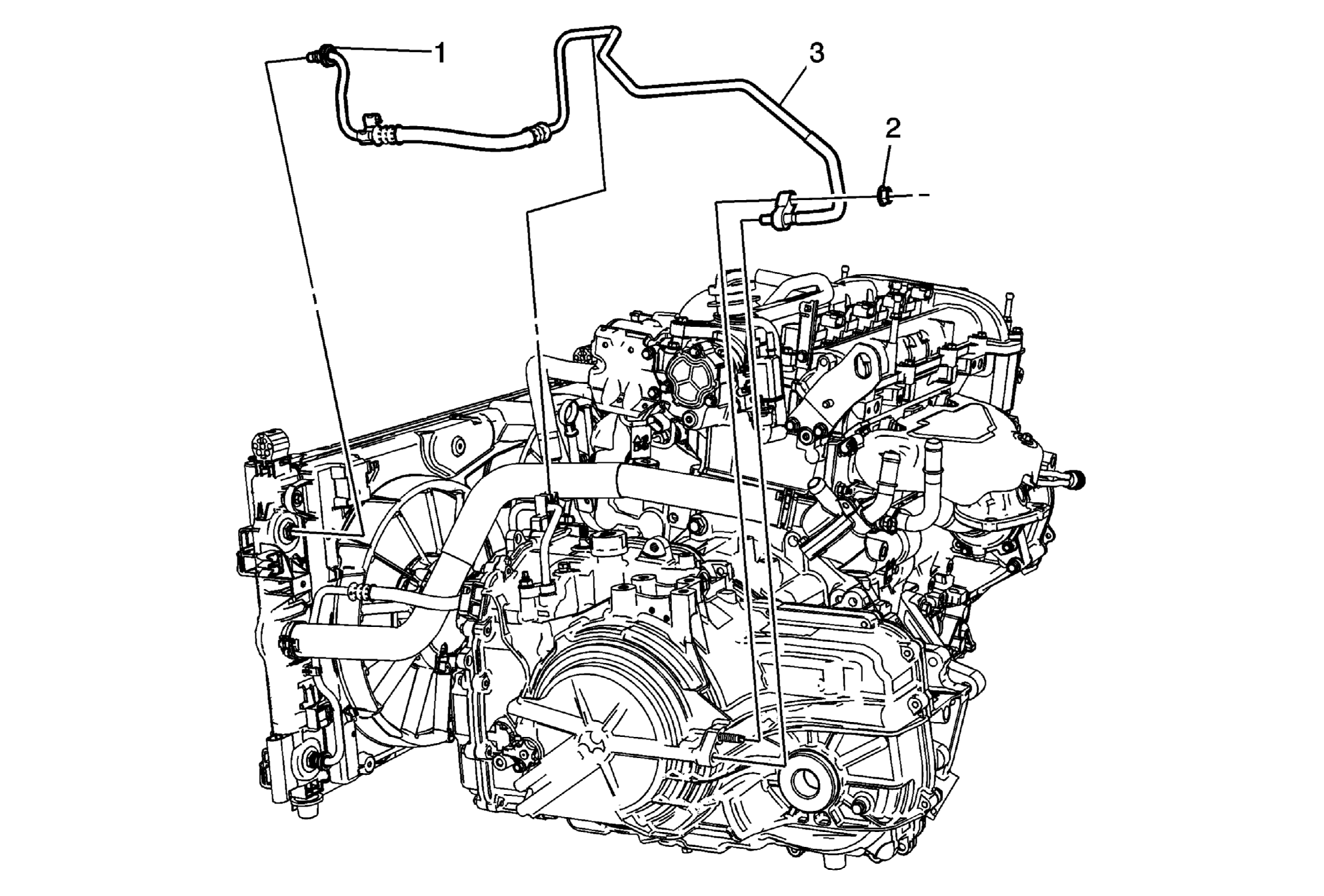

Fig 1: Transmission Fluid Cooler Outlet Pipe & Components (MHH)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise the vehicle. Refer to Lifting and Jacking the Vehicle
1	Transmission Fluid Cooler Outlet Hose Nut CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Transmission Fluid Cooler Outlet Hose Quick Disconnect Procedure Remove and discard the sealing washer. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection (MHH, MHK) .
3	Transmission Fluid Cooler Outlet Hose Procedure Note the routing of the transmission line to ensure proper installation. Remove the transmission line from the clips securing the line to the transmission and fan shroud. Inspect the transmission fluid level. Refer to Transmission Fluid Level and Condition Check
