Installation Procedure
NOTE:
When transferring any suspension components, refer to each suspension component replacement procedure for the proper torque specifications.

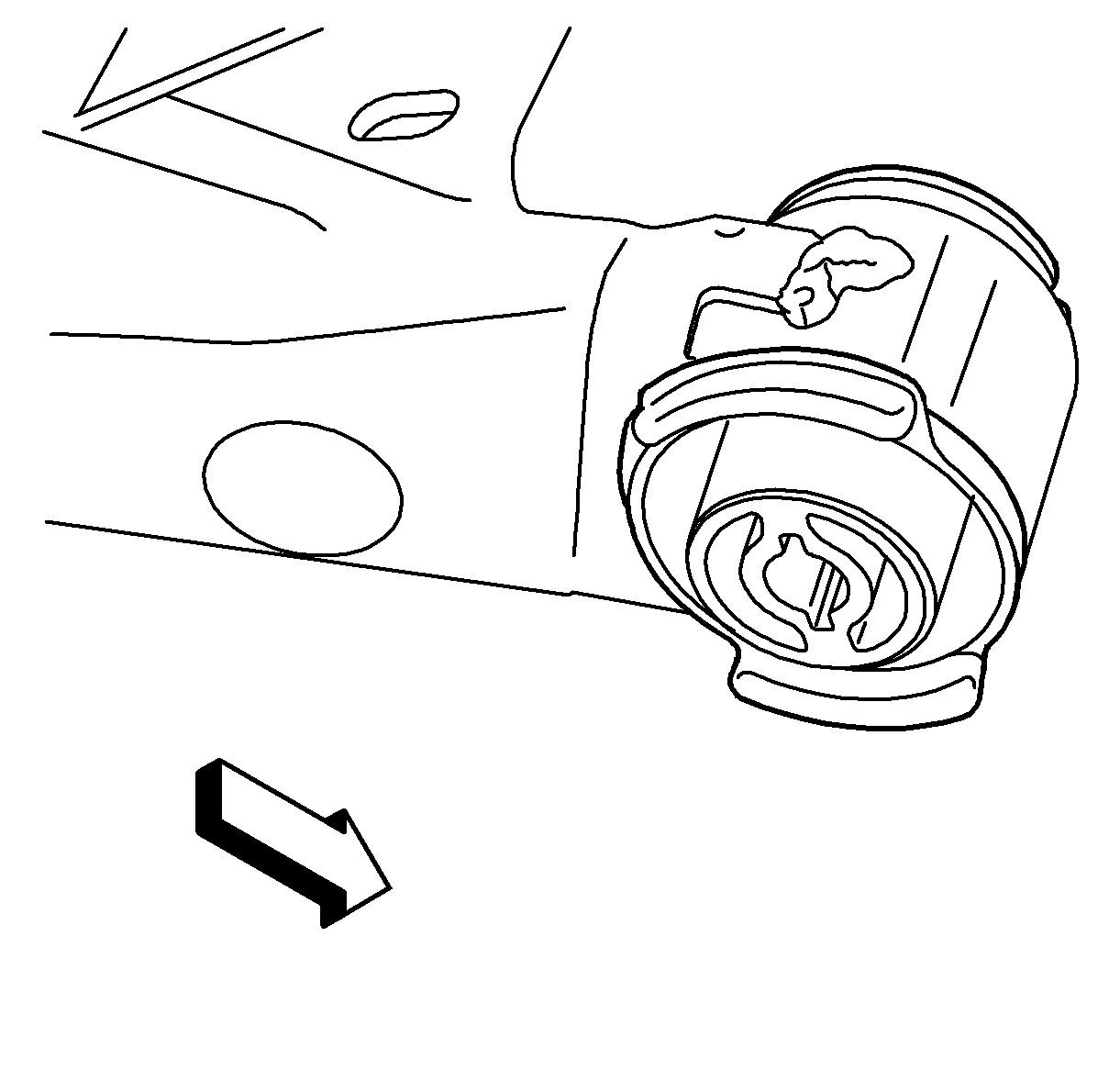

- Locate the front bushings as shown in the picture.

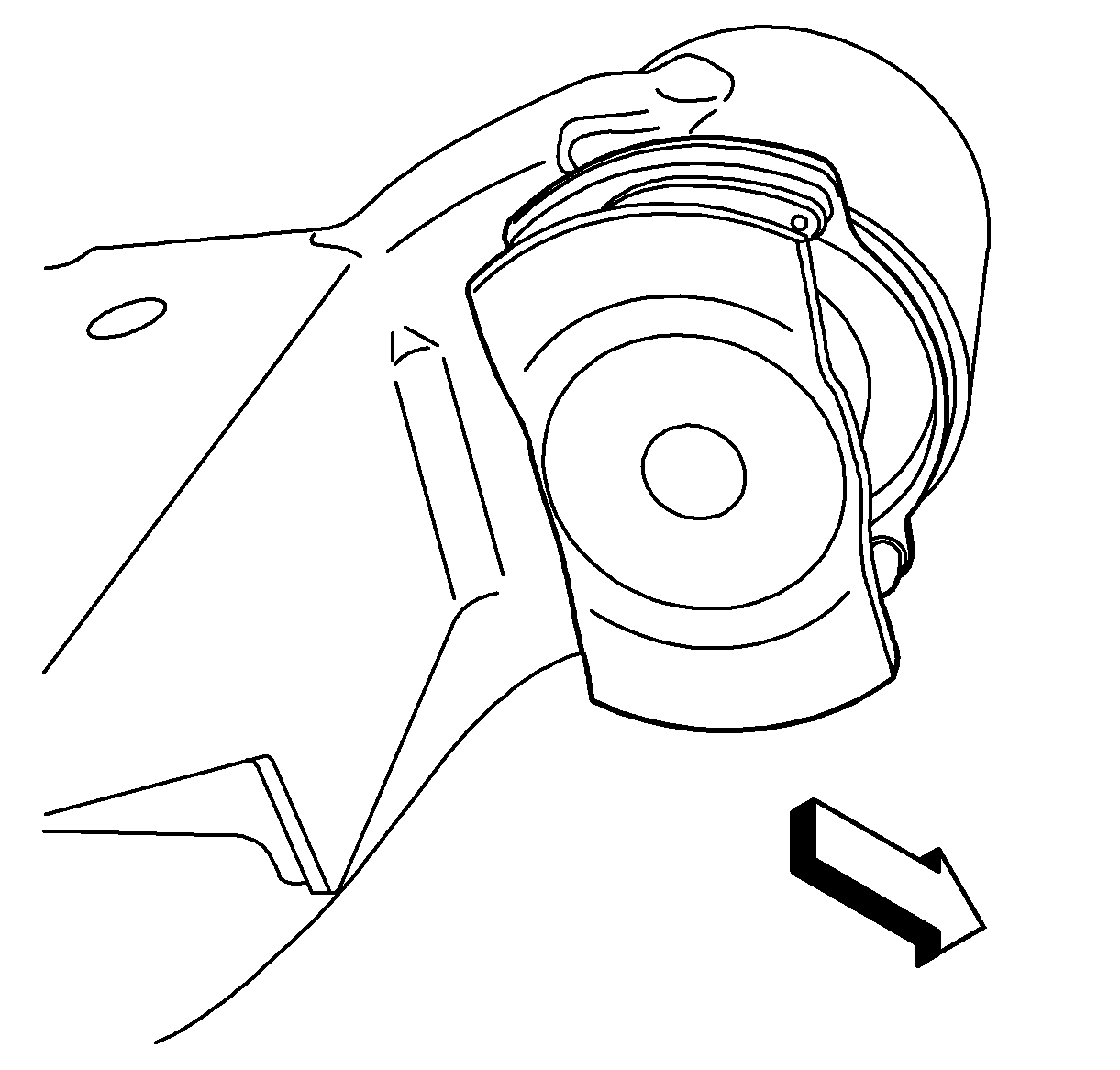

- Position the rear bushings in the frame.
- Use the DT-4912610 tool (1), CH-50196 tool (3) and the CH-49233 tool (2), install the bushing.
- With the aid of an assistant, position the rear support onto the transmission jack and firmly secure the support to the jack with straps.
- Position the rear support assembly to the vehicle.

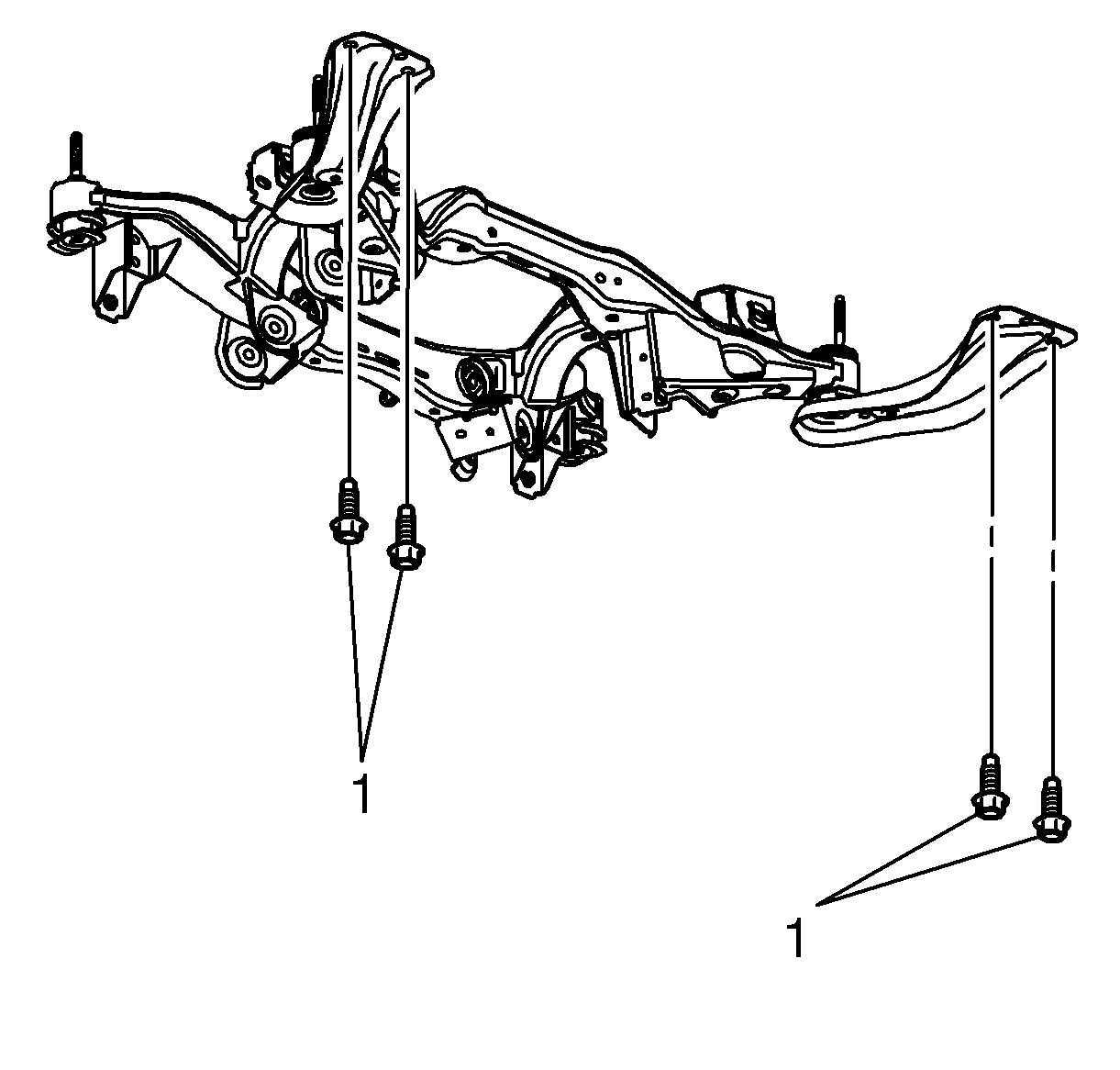

- Install 4 NEW rear support to body bolts (1).
Tighten
Tighten to 90 N.m (66 lb ft) + 180 degrees + 15 degrees.
- Connect the electrical connection.
- Install rear springs. Refer to Rear Spring, Insulator, and Jounce Bumper Replacement .
- Install the propeller shaft. Refer to Propeller Shaft Replacement .

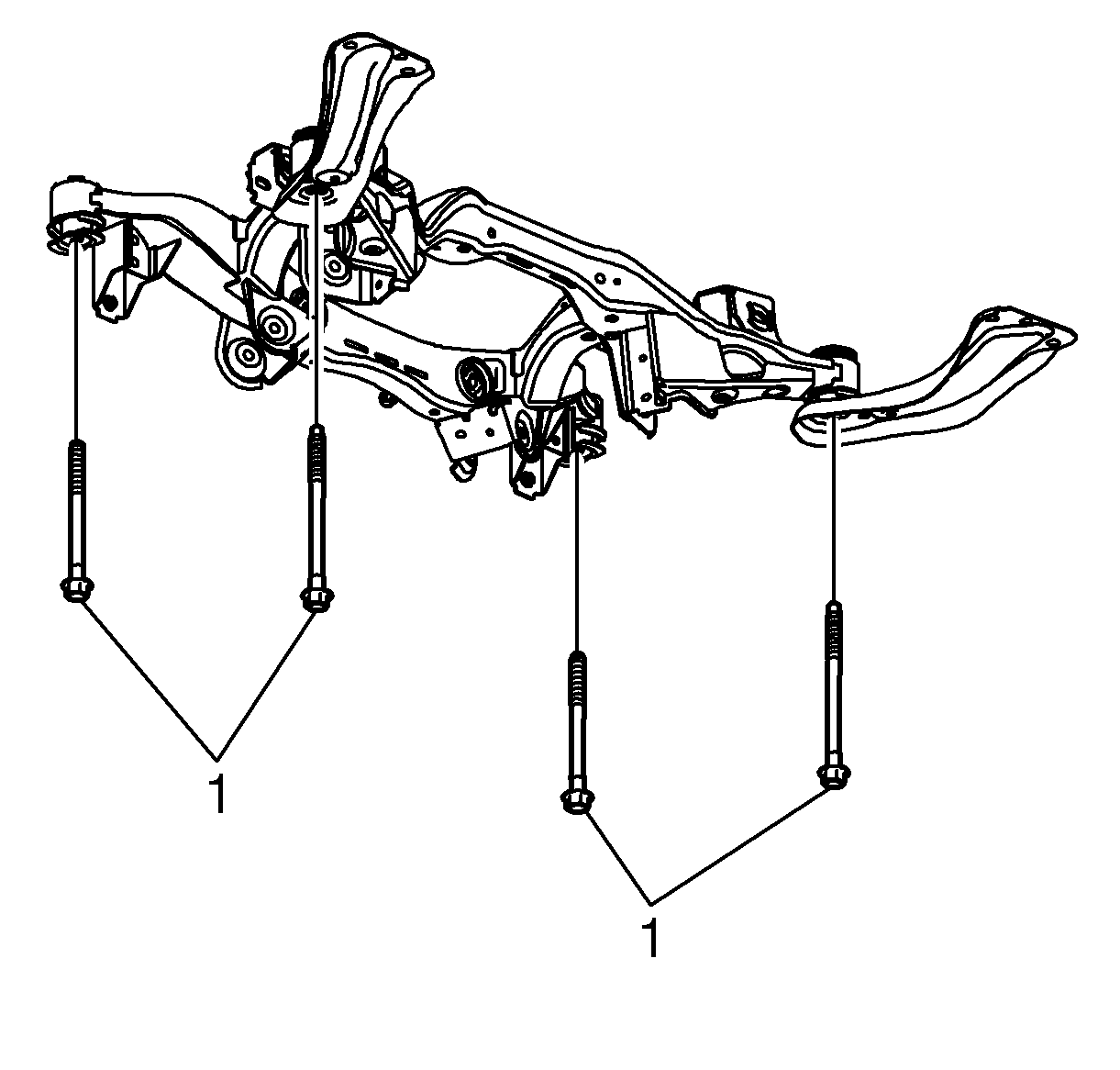

- Install NEW reinforcements arm bolts (1) to body.
Tighten
Tighten the bolts to 150 N.m (111 lb ft) + 30 degrees + 15 degrees.
- Install shock absorber lower fastener. Refer to Shock Absorber Replacement (GNC) .
- Install the exhaust muffler. Refer to EXHAUST MUFFLER REPLACEMENT (SINGLE) or EXHAUST MUFFLER REPLACEMENT (DUAL) .
- Install the tires and wheels. Refer to Tire and Wheel Removal and Installation .
- Lower the vehicle.
- Check the rear alignment. Refer to Wheel Alignment Measurement .
NOTE:
The bushing can be damaged if it is pressed to deep. The bushing should be pressed so that the flange on the bushing is resting on the rear suspension support.
NOTE:
Apply a small amount of silicone grease on the bushing prior to installing.
CAUTION:
Refer to Fastener Caution .
