Front Floor Lower Console Replacement

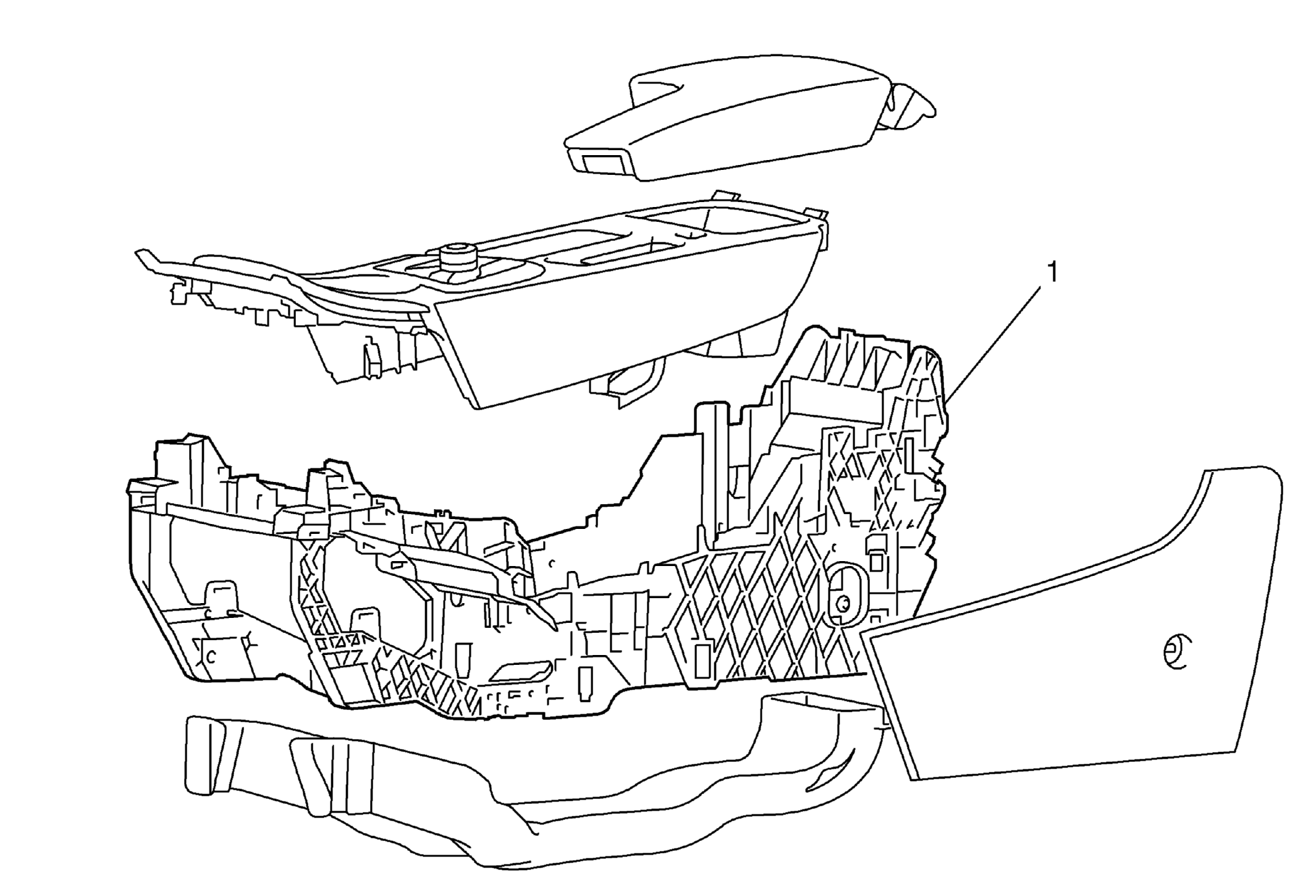

Fig 1: Exploded View Of Front Floor Lower Console

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front floor console. Refer to Front Floor Console Replacement . Remove the front floor upper console trim plate. Refer to Front Floor Upper Console Trim Plate Replacement . Remove the front floor console rear air duct. Refer to Front Floor Console Rear Air Duct Replacement . Remove the front floor console armrest. Refer to Front Floor Console Armrest Replacement . Remove the front floor console wiring harness. Refer to Front Floor Console Wiring Harness Replacement .
1	Front Floor Lower Console Procedure When replacing the front floor lower console, transfer all necessary components.

Callout

Component Name

Preliminary Procedures

Remove the front floor console. Refer to Front Floor Console Replacement .
Remove the front floor upper console trim plate. Refer to Front Floor Upper Console Trim Plate Replacement .
Remove the front floor console rear air duct. Refer to Front Floor Console Rear Air Duct Replacement .
Remove the front floor console armrest. Refer to Front Floor Console Armrest Replacement .
Remove the front floor console wiring harness. Refer to Front Floor Console Wiring Harness Replacement .

Front Floor Lower Console
Procedure
When replacing the front floor lower console, transfer all necessary components.
