Front Floor Console Rear Air Duct Replacement

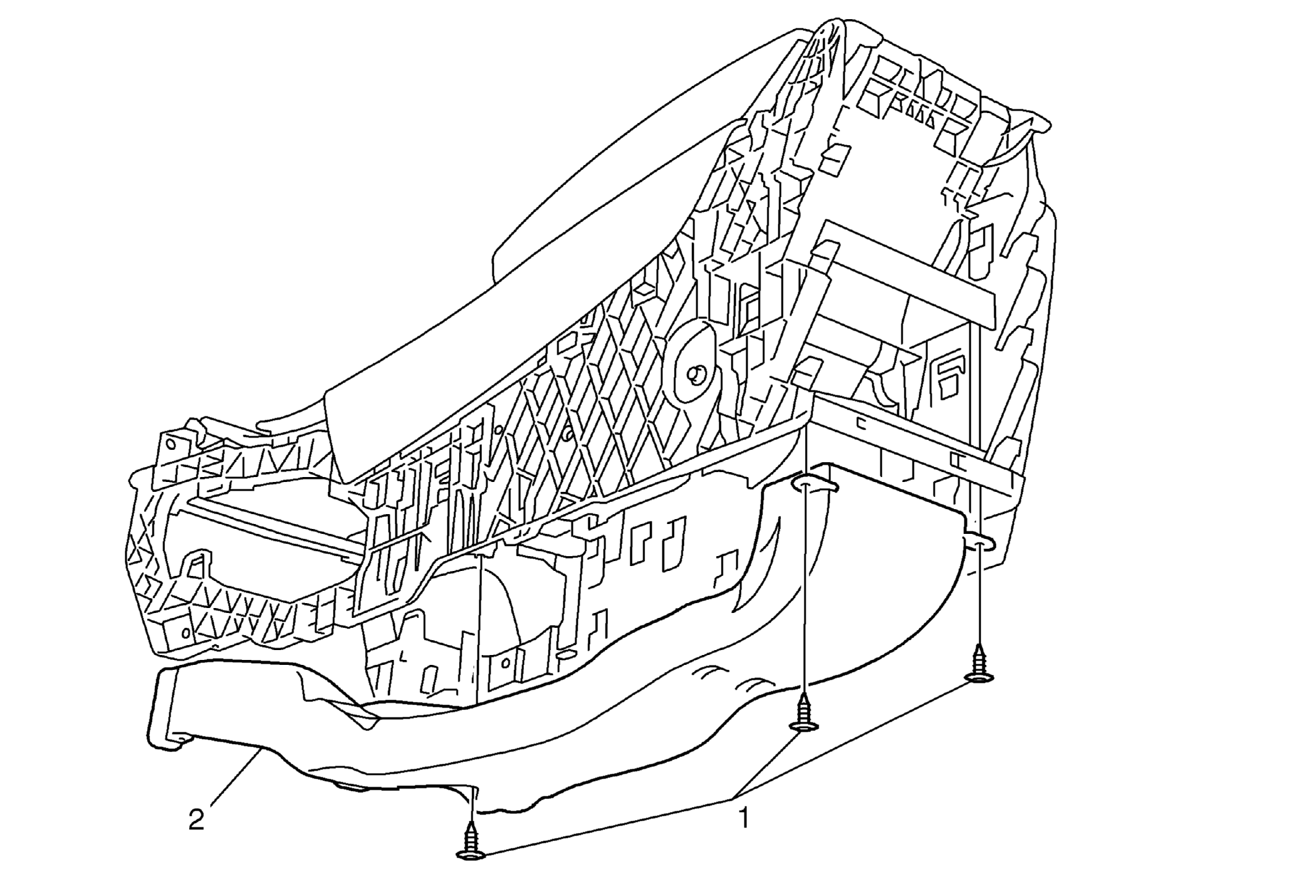

Fig 1: Front Floor Console Rear Air Duct & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front floor console. Refer to Front Floor Console Replacement Remove the front floor console rear cover. Refer to Front Floor Console Rear Cover Replacement
1	Front Floor Console Rear Air Duct Fastener (Qty: 3)
2	Front Floor Console Rear Air Duct

Callout

Component Name

Preliminary Procedures

Remove the front floor console. Refer to Front Floor Console Replacement
Remove the front floor console rear cover. Refer to Front Floor Console Rear Cover Replacement

Front Floor Console Rear Air Duct Fastener (Qty: 3)

Front Floor Console Rear Air Duct
