Front Floor Upper Console Trim Plate Replacement

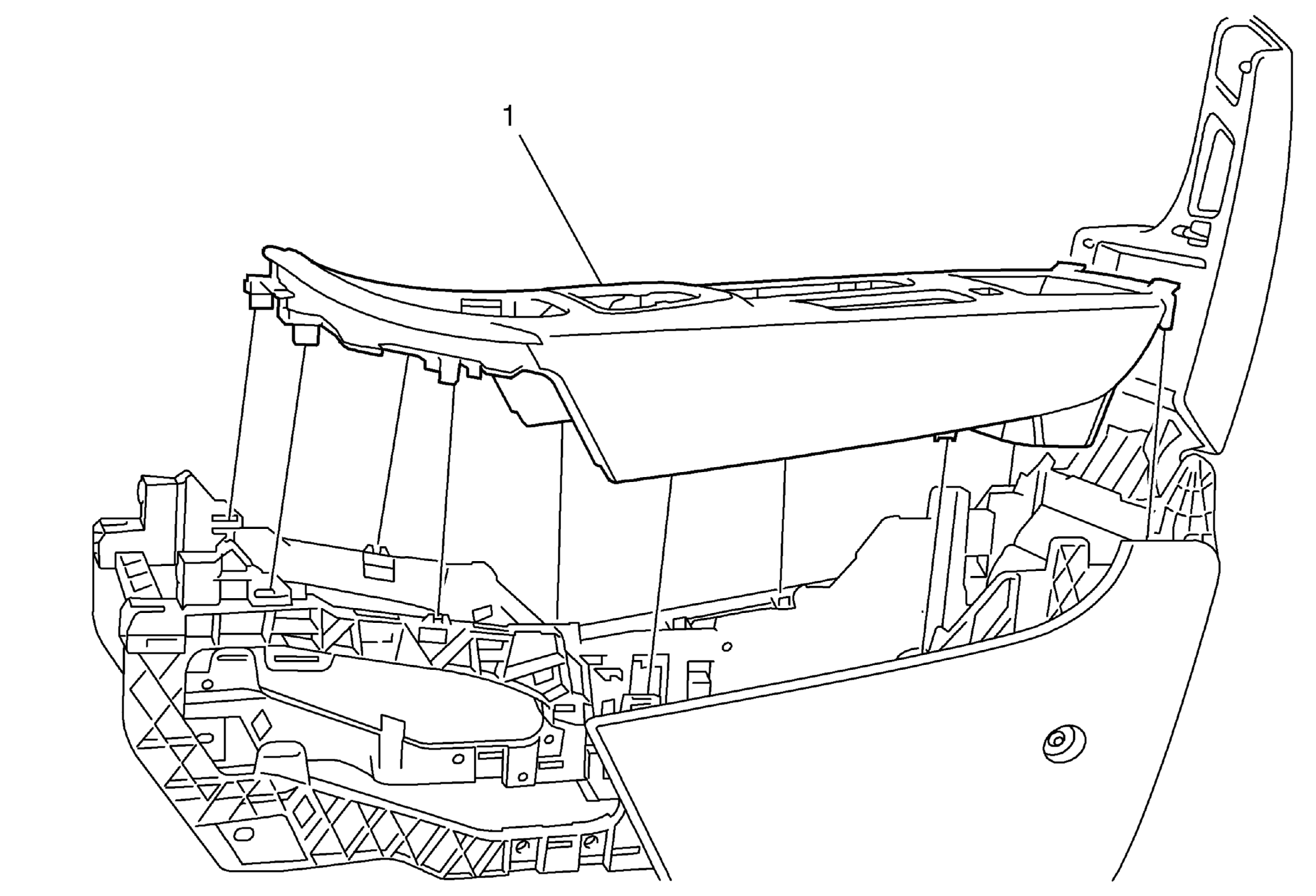

Fig 1: Front Floor Upper Console Trim Plate

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front floor console. Refer to Front Floor Console Replacement .
1	Front Floor Upper Console Trim Plate Assembly Procedure Release the upper console trim plate from the front floor lower console. Disconnect the electrical connections. When replacing the front floor upper console trim plate, transfer all necessary parts.

Callout

Component Name

Preliminary Procedure
Remove the front floor console. Refer to Front Floor Console Replacement .

Front Floor Upper Console Trim Plate Assembly

Procedure

Release the upper console trim plate from the front floor lower console.
Disconnect the electrical connections.
When replacing the front floor upper console trim plate, transfer all necessary parts.
