Front Floor Console Wiring Harness Replacement

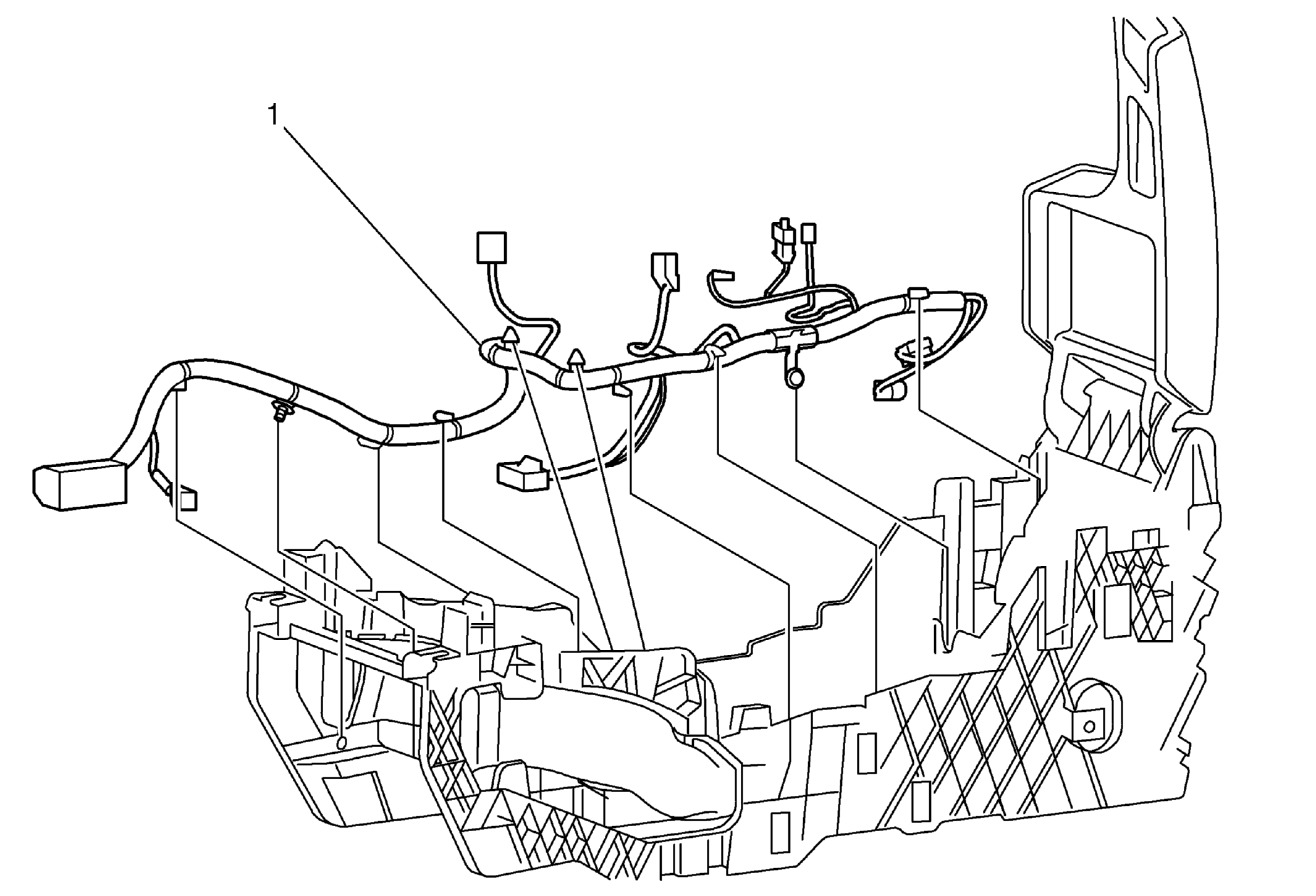

Fig 1: Front Floor Console Wiring Harness
GM2193988Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the front floor console. Refer to Front Floor Console Replacement .
  2. Remove the front floor console rear cover. Refer to Front Floor Console Rear Cover Replacement .
  3. Remove the front floor upper console trim plate. Refer to Front Floor Upper Console Trim Plate Replacement .
  4. Remove the front floor console front insert. Refer to Front Floor Console Front Insert Replacement .
1 Front Floor Console Wiring Harness

Procedure

  1. Release the front floor console wiring harness from the lower console.
  2. When replacing the front floor console wiring harness, compare the wiring harnesses and transfer all necessary attaching parts.
