Front Floor Console Front Insert Replacement

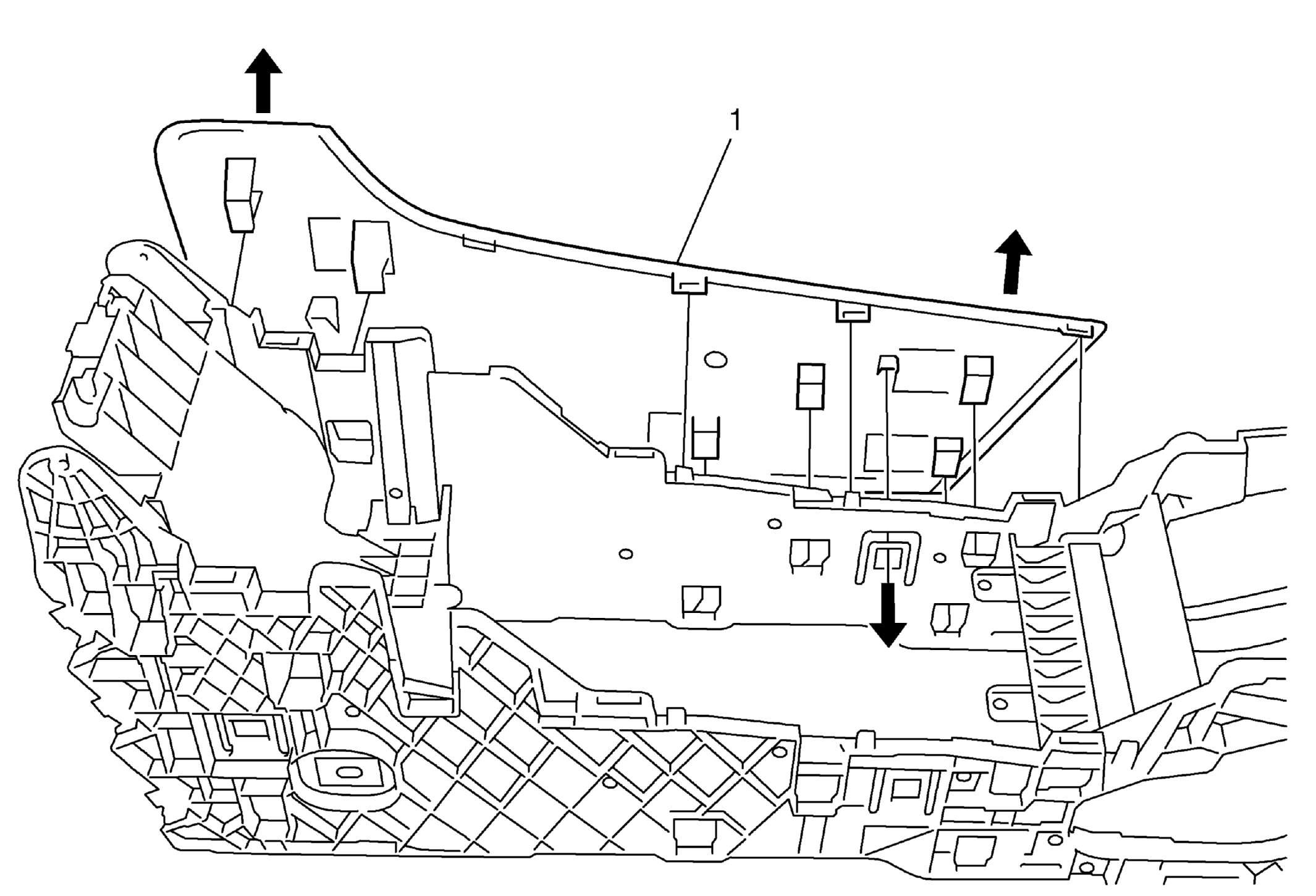

Fig 1: Front Floor Console Side Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front floor console. Refer to Front Floor Console Replacement . Remove the front floor upper console trim plate. Refer to Front Floor Upper Console Trim Plate Replacement .
1	Front Floor Console Front Insert Procedure Release the front floor console front insert from the lower console.

Callout

Component Name

Preliminary Procedures

Remove the front floor console. Refer to Front Floor Console Replacement .
Remove the front floor upper console trim plate. Refer to Front Floor Upper Console Trim Plate Replacement .

Front Floor Console Front Insert
Procedure
Release the front floor console front insert from the lower console.
