Front Floor Console Rear Cover Replacement

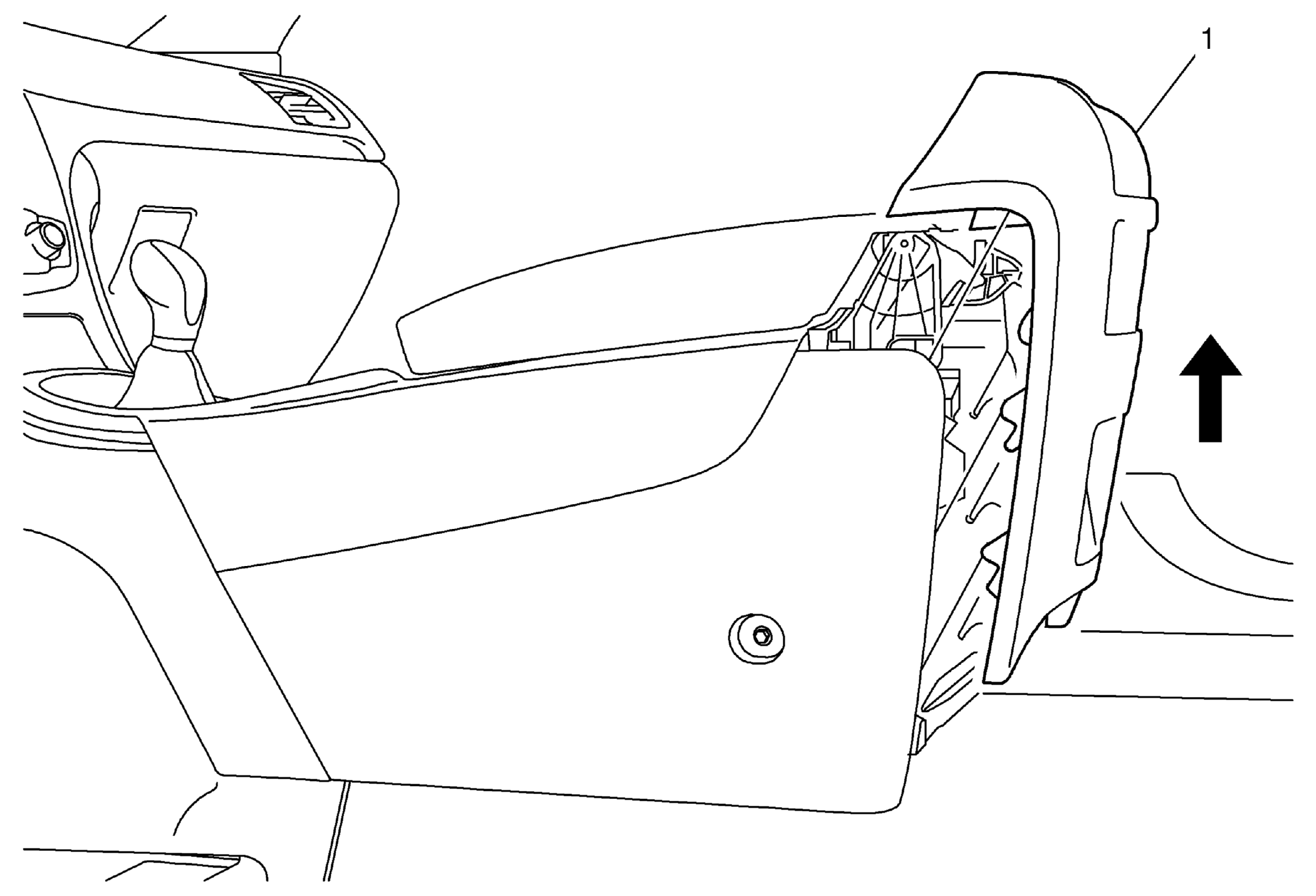

Fig 1: Front Floor Console Rear Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove front floor console rear air outlet deflector housing. Refer to Front Floor Console Rear Air Outlet Deflector Housing Replacement .
1	Front Floor Console Rear Cover Procedure Release the front floor console rear cover. Disconnect the electrical connectors.

Callout

Component Name

Preliminary Procedure
Remove front floor console rear air outlet deflector housing. Refer to Front Floor Console Rear Air Outlet Deflector Housing Replacement .

Front Floor Console Rear Cover

Procedure
