Front Seat Tilt Adjuster Actuator Replacement (Driver/Passenger Seat 6-Way Hybrid)

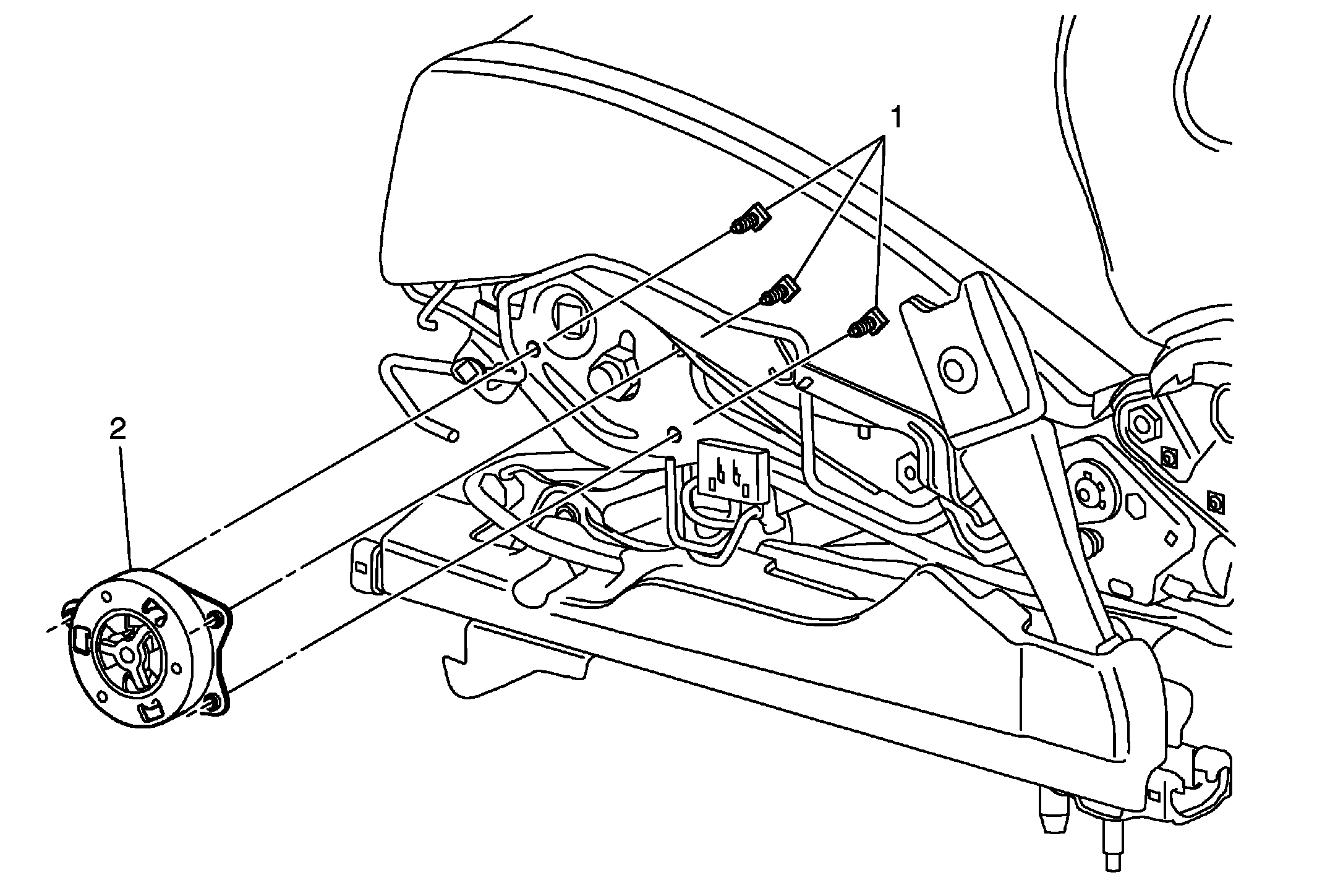

Fig 1: Front Seat Tilt Adjuster Actuator (Driver/Passenger Seat 6-Way)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the driver or passenger seat. Refer to Driver or Passenger Seat Replacement (Oshawa 2/4/6-Way Hybrid, 6-Way Sport) Remove the driver or passenger seat adjuster finish cover. Refer to Driver or Passenger Seat Adjuster Finish Cover Replacement (8-Way-Power) , Driver or Passenger Seat Adjuster Finish Cover Replacement (4/6-Way Hybrid, 6-Way Hybrid Sport)
1	Front Seat Tilt Adjuster Actuator Fastener (Qty: 3) CAUTION: Refer to Fastener Caution Procedure Remove the front seat out of vehicle. Remove the driver or passenger seat adjuster finish cover. Remove the tilt adjuster lever. Tighten 19.5 N.m (15 lb ft)
2	Front Seat Tilt Adjuster Actuator

Callout

Component Name

Preliminary Procedures

Front Seat Tilt Adjuster Actuator Fastener (Qty: 3)

CAUTION:

Procedure

Tighten
19.5 N.m (15 lb ft)

Front Seat Tilt Adjuster Actuator
