Driver or Passenger Seat Replacement (Oshawa 2/4/6-Way Hybrid, 6-Way Sport)

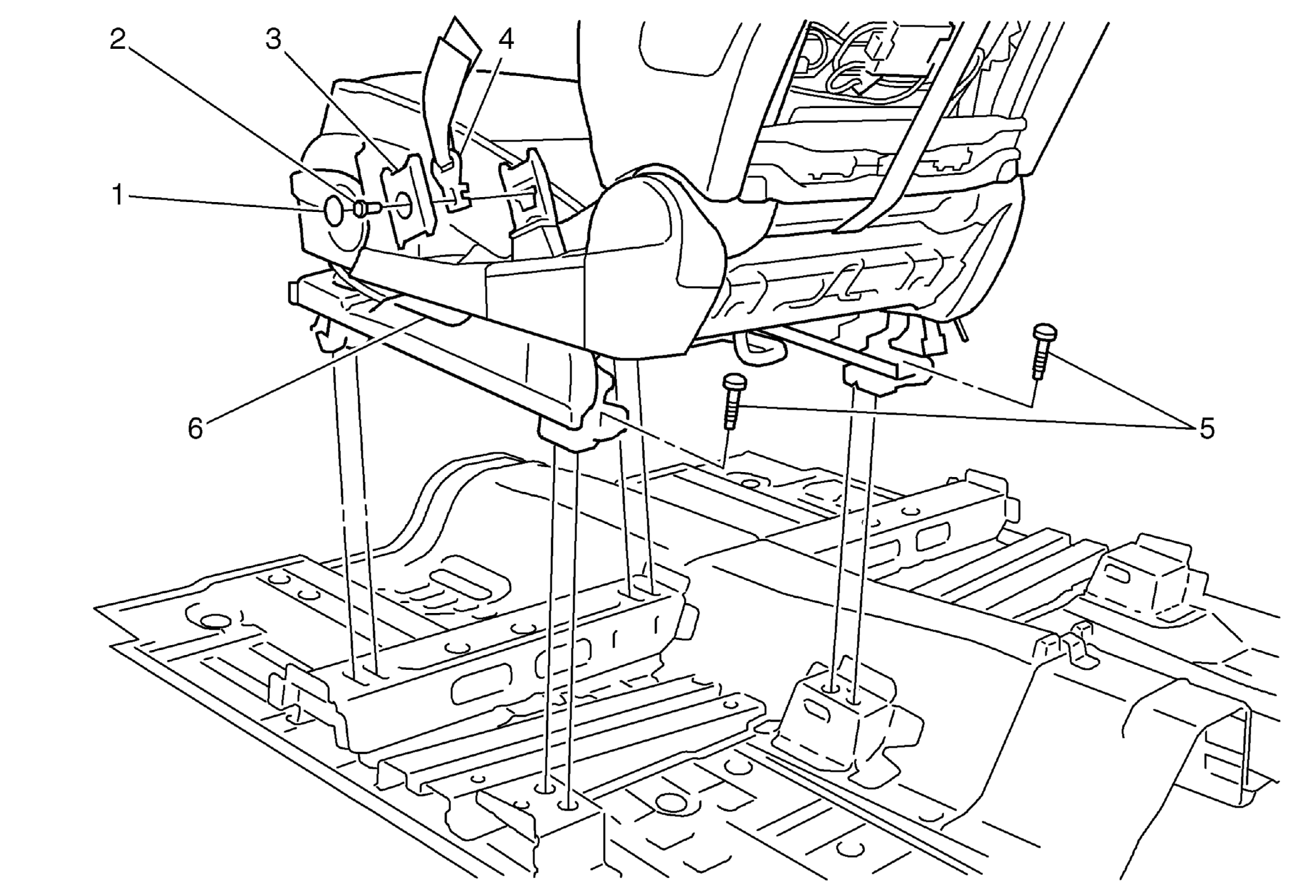

Fig 1: Driver or Passenger Seat (2/4/6-Way Hybrid, 6-Way Hybrid Sport)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure SIR Disabling and Enabling. Refer to SIR Disabling and Enabling . Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
1	Cap
2	Driver or Passenger Seat Belt Fastener CAUTION: Refer to Fastener Caution . Tighten 5 N.m (44 lb in)
3	Seat Belt Tensioner Cover
4	Driver or Passenger Seat Belt
5	Driver or Passenger Seat Fastener (Qty: 2) Procedure Move front seat high adjuster in middle position. Disconnect the battery. Seat belt release at seat belt tensioner. Disconnect the central wiring harness connector at bottom. Unscrew both fasteners at the rail guide. Remove the front seat out of the vehicle with two persons. Tighten 45 N.m (30 lb ft)
6	Driver or Passenger Seat
