Driver or Passenger Seat Adjuster Finish Cover Replacement (4/6-Way Hybrid, 6-Way Hybrid Sport)

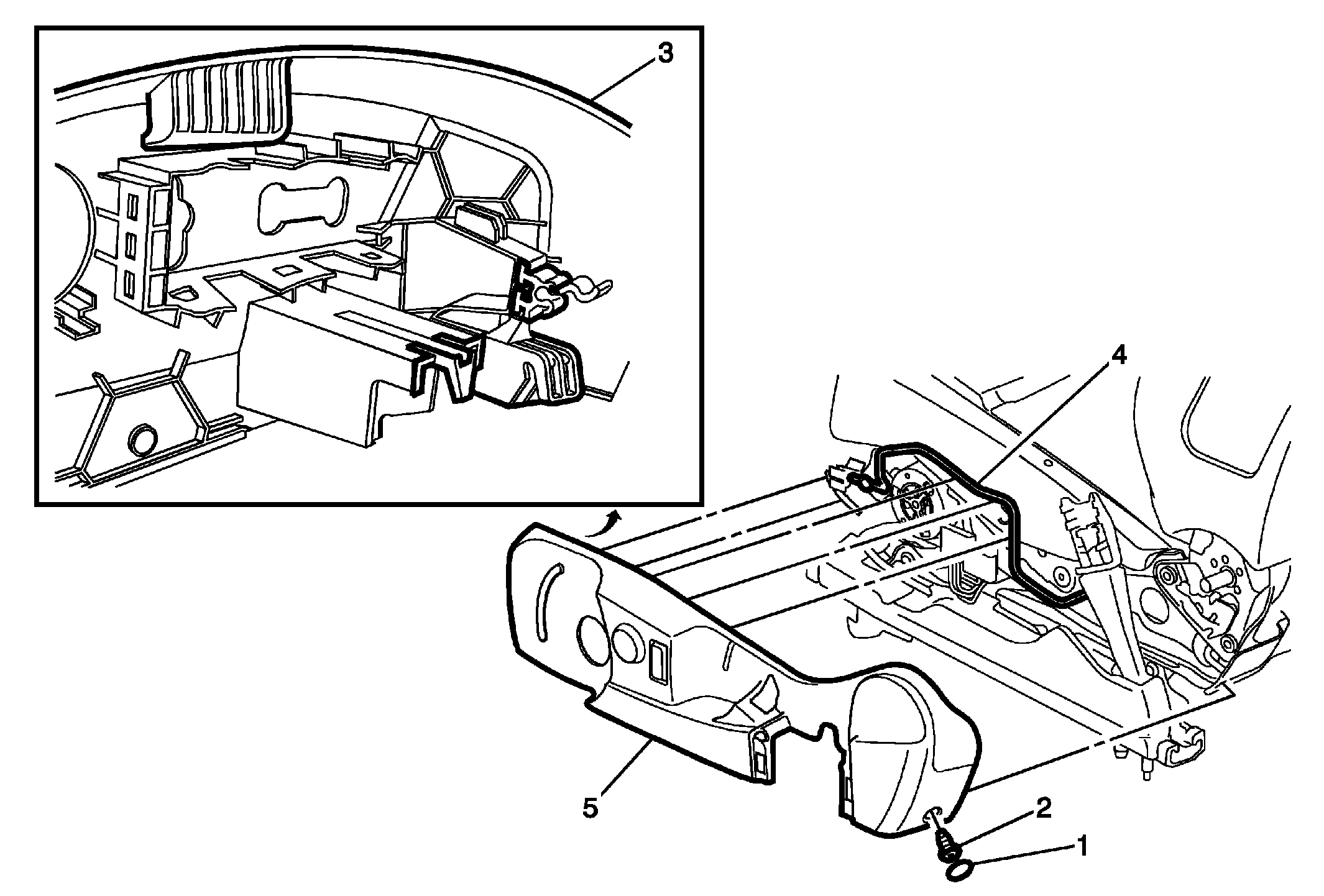

Fig 1: Driver or Passenger Seat Adjuster Finish Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove front seat recliner lever. Refer to Driver or Passenger Seat Recliner Lever Replacement . Remove front seat tilt adjuster lever. Refer to Front Seat Tilt Adjuster Lever Replacement (Driver or Passenger Seat 6-Way Hybrid) . Remove front seat outer adjuster finish cover. Refer to Driver or Passenger Seat Outer Adjuster Finish Cover Replacement (2/4/6-Way Hybrid, 6-Way Hybrid Sport) , Driver or Passenger Seat Outer Adjuster Finish Cover Replacement (8-Way Power) .
1	Cap
2	Driver or Passenger Seat Adjuster Finish Cover Fastener CAUTION: Refer to Fastener Caution . Procedure Move the front seat to its highest position. Remove the cap. Unscrew the fastener. Tighten 5 N.m (4 lb ft)
3	Driver or Passenger Seat Adjuster Finish Cover Clip Procedure Disengage front finish cover clip. Pull up on the front of cover to disengage the front hook.
4	Driver or Passenger Seat Adjuster Finish Cover Retainer Procedure Carefully pull up on the center of the cover to disengage the center hook.
5	Driver or Passenger Seat Adjuster Finish Cover Procedure Disconnect the electrical connector. Disengage and remove the remainder of the finish cover by pulling the cover upward and outboard away from the seat. NOTE: When reinstalling the finish cover, re-snap the front retainer together around the finish cover retainer rod.
