Seat Back Frame, Seat Back Latch, Floor Latch, Release Handle and Seat Riser Replacement - Rear No 2

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

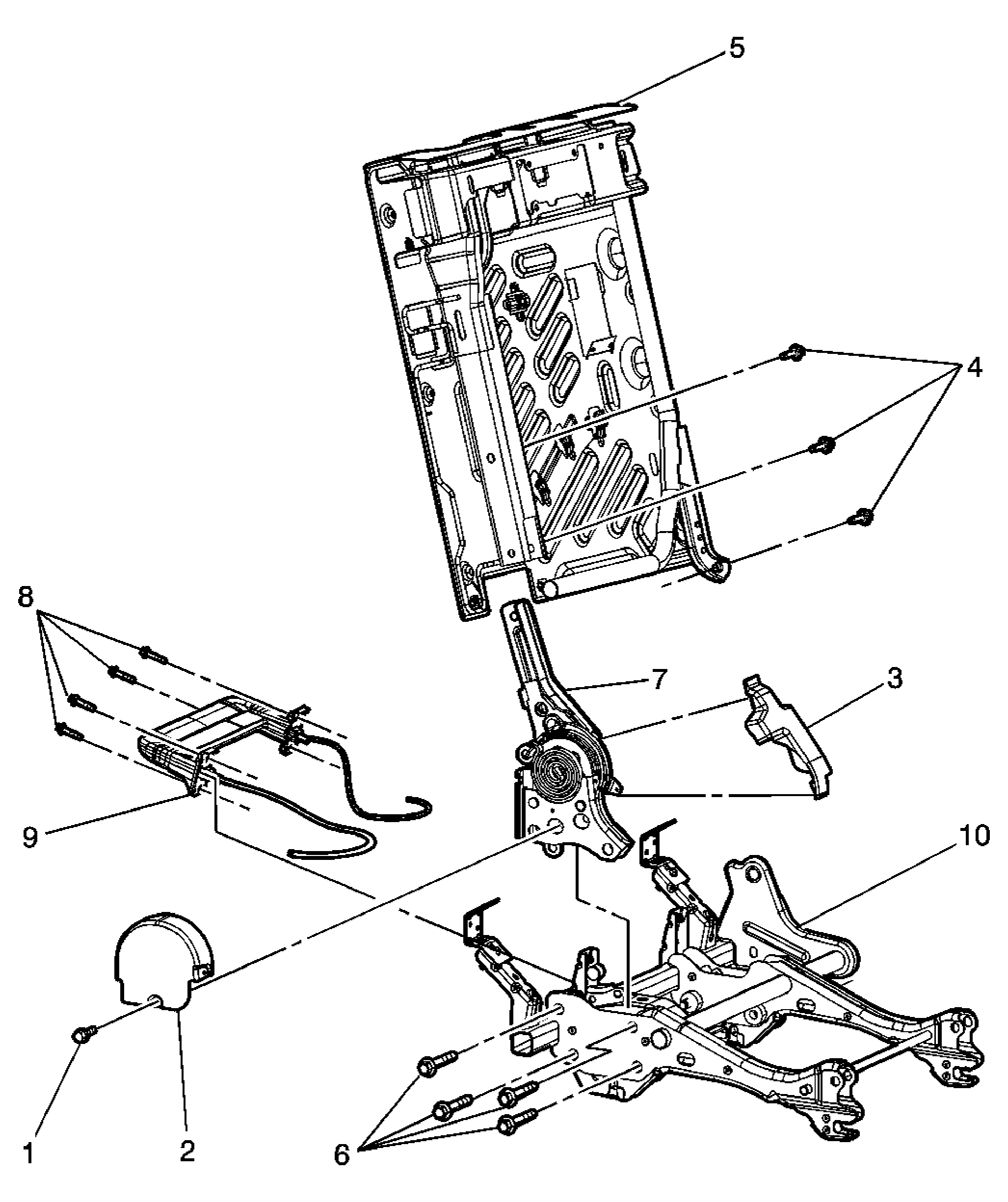

Fig 1: View Of Seat Back Frame, Seat Back Latch, Floor Latch, Release Handle & Seat Riser - Rear No 2

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
Seat Back Latch Replacement Preliminary Procedures Remove the seat from the vehicle. Remove the seat back cover and pad. Refer to Seat Back Cover and Pad Replacement - Rear No. 2 . Remove the seat cushion frame. Refer to Cushion Cover, Cushion Pad, Cushion Frame and Flex Mat Replacement - Rear No 2 . Remove the center seat belt retractor. Refer to Seat Belt Retractor Replacement - Center Rear .
1	Screw, Seat Back Latch Cover (Qty: 1) Tighten: 2 N.m (18 lb in)
2	Cover, Seat Back Latch
3	Cover, Seat Back Latch Tip: Grasp the cover and pull it away from the assembly to release the retainer clips.
4	Bolts, Seat Back Cushion Frame (Qty: 3) Tighten: 9 N.m (80 lb in)
5	Frame Assembly, Seat Back Cushion
6	Bolt, Seat Back Latch Assembly (Qty: 4) Tighten: 9 N.m (80 lb in)
Seat Back Frame Replacement Preliminary Procedures Remove the seat from the vehicle. Remove the seat back cover and pad. Refer to Seat Back Cover and Pad Replacement - Rear No. 2 . Remove the seat cushion frame. Refer to Cushion Cover, Cushion Pad, Cushion Frame and Flex Mat Replacement - Rear No 2 . Remove the center seat belt retractor. Refer to Seat Belt Retractor Replacement - Center Rear .
4	Bolts, Seat Back Cushion Frame (Qty: 3) Tighten: 9 N.m (80 lb in)
5	Frame Assembly, Seat Back Cushion
7	Latch Assembly, Seat Back
Floor Latch Release Handle Replacement Preliminary Procedures Remove the seat from the vehicle. Remove the seat back cover and pad. Refer to Seat Back Cover and Pad Replacement - Rear No. 2 . Remove the seat cushion frame. Refer to Cushion Cover, Cushion Pad, Cushion Frame and Flex Mat Replacement - Rear No 2 . Remove the center seat belt retractor. Refer to Seat Belt Retractor Replacement - Center Rear .
8	Bolts, Floor Latch (Qty: 4) Tighten: 9 N.m (80 lb in)
9	Latch Assembly, Floor Release
Seat Riser Replacement Preliminary Procedures Remove the seat from the vehicle. Remove the seat back cover and pad. Refer to Seat Back Cover and Pad Replacement - Rear No. 2 . Remove the seat cushion frame. Refer to Cushion Cover, Cushion Pad, Cushion Frame and Flex Mat Replacement - Rear No 2 . Remove the center seat belt retractor. Refer to Seat Belt Retractor Replacement - Center Rear .
1	Screw, Seat Back Latch Cover (Qty: 1) Tighten: 2 N.m (18 lb in)
2	Cover, Seat Back Latch
3	Cover, Seat Back Latch Tip: Grasp the cover and pull it away from the assembly to release the retainer clips.
4	Bolts, Seat Back Cushion Frame (Qty: 3) Tighten: 9 N.m (80 lb in)
5	Frame Assembly, Seat Back Cushion
6	Bolt, Seat Back Latch Assembly (Qty: 4) Tighten: 9 N.m (80 lb in)
7	Latch Assembly, Floor Release
8	Bolts, Floor Latch (Qty: 4) Tighten: 9 N.m (80 lb in)
9	Latch Assembly, Floor Release
10	Riser Assembly, Seat
