Seat Belt Retractor Replacement - Center Rear

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

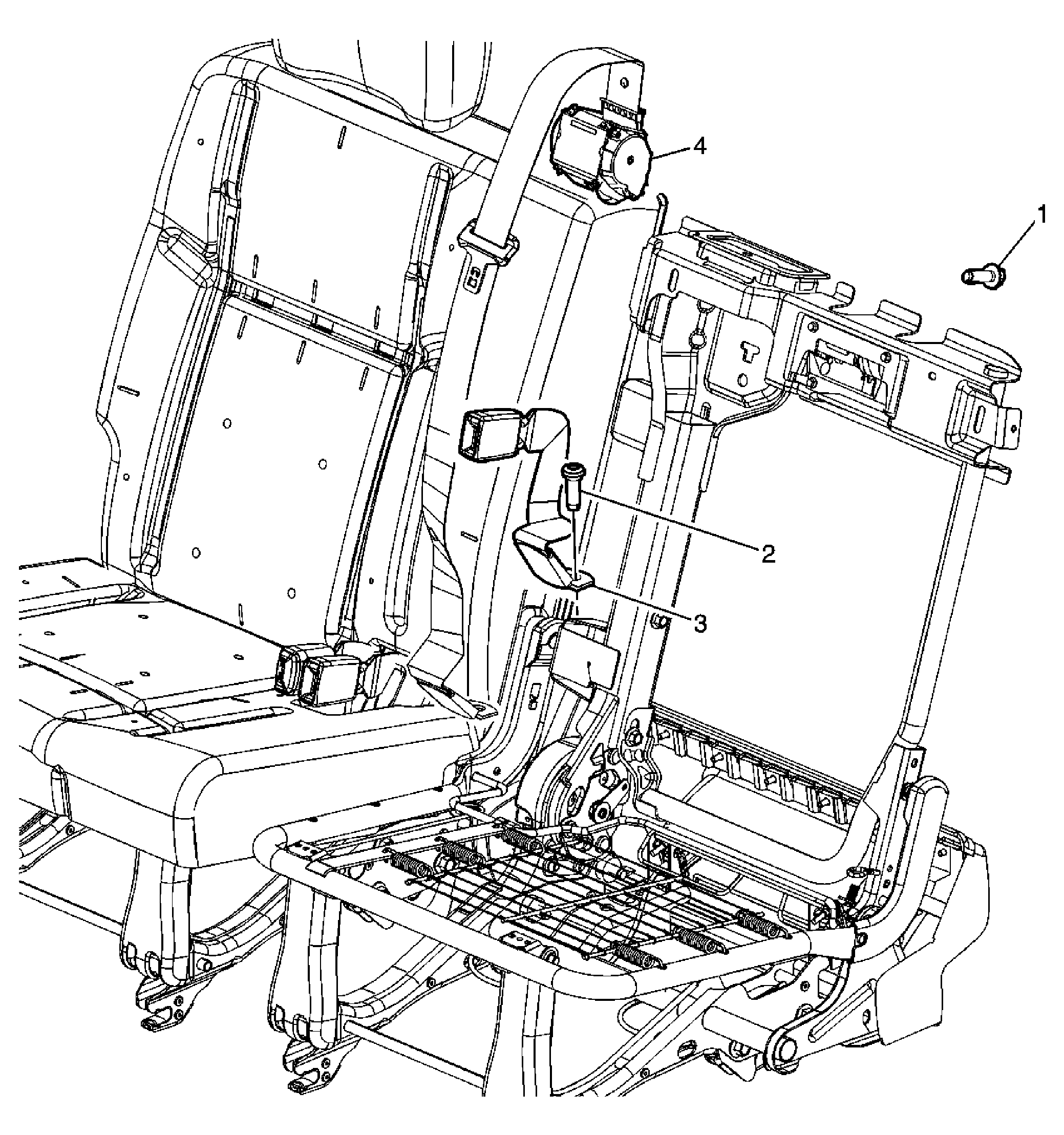

Fig 1: Identifying Rear Center Seat Belt Retractor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the seat cushion. Refer to Cushion Cover, Cushion Pad, Cushion Frame and Flex Mat Replacement - Rear No 2 . Remove the seat back. Refer to Seat Back Cover and Pad Replacement - Rear No. 2 .
1	Bolt, Rear Seat Center Shoulder Belt Retractor Tighten: 43 N.m (32 lb ft)
2	Bolt, Rear Seat Belt Buckle Tighten: 53 N.m (39 lb ft)
3	Buckle, Rear Seat Belt
4	Belt Assembly, Rear Seat Center Shoulder Tip: Lift up and pull out the retractor to disengage it from the seat back frame.
