Seat Back Cover and Pad Replacement - Rear No. 2

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

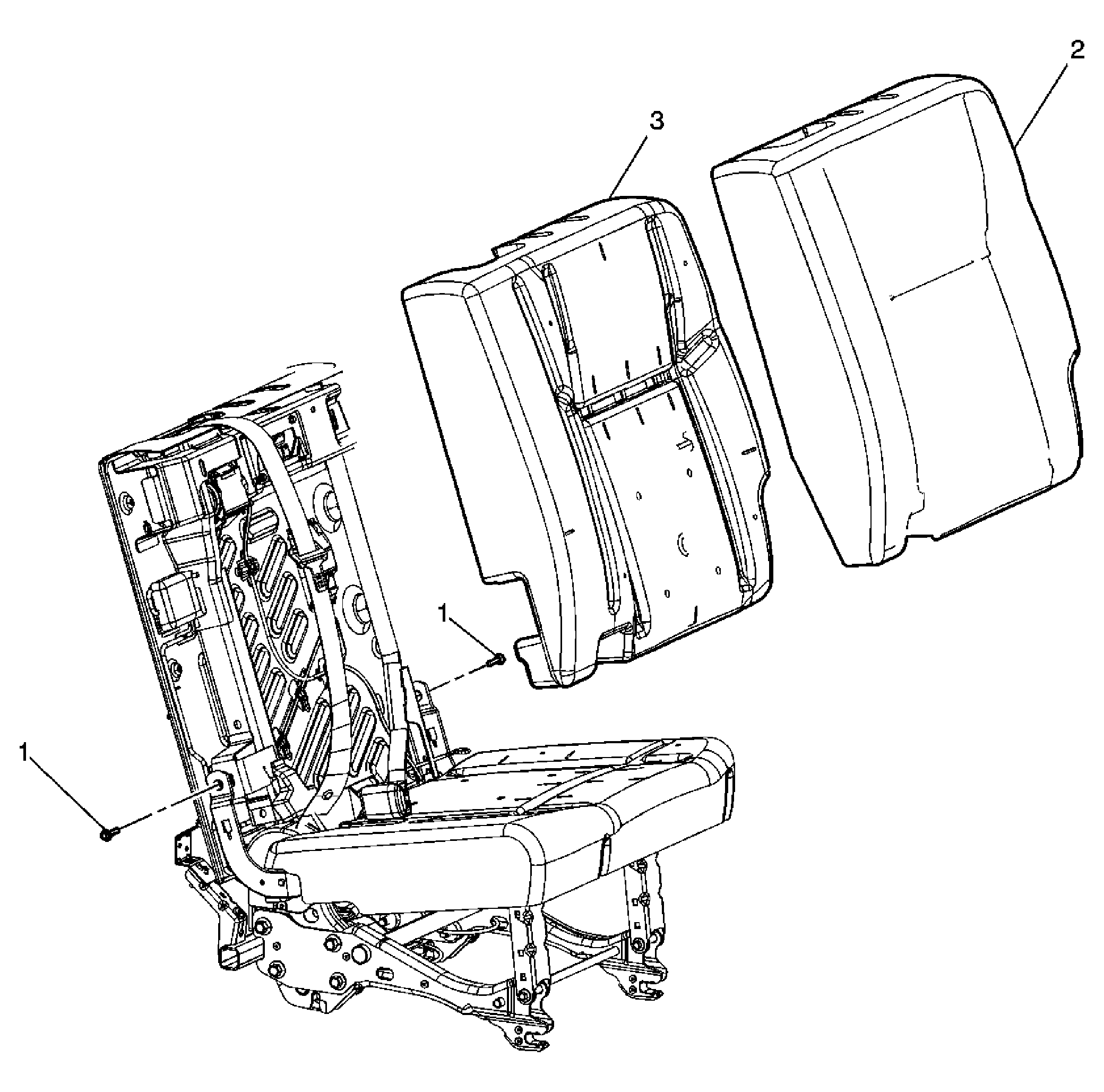

Fig 1: View Of Seat Back Cover & Pad - Rear No. 2

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
Seat Back Cover Replacement Preliminary Procedures Remove the seat from the vehicle. Remove the seat back trim panel. Refer to Head Restraint, Seat Belt Exit Bezel and Seat Back Trim Panel Replacement - Rear No 2 . Remove the seat belt exit bezel. Refer to Head Restraint, Seat Belt Exit Bezel and Seat Back Trim Panel Replacement - Rear No 2 . Remove the head restraint. Refer to Head Restraint, Seat Belt Exit Bezel and Seat Back Trim Panel Replacement - Rear No 2 . Remove the cushion cover shields. Refer to Close Out Hinge Panel, Cushion Cover Shield and Riser Hook Cover Replacement - Right Side - Rear No 2 .
1	Bolt, Seat Cushion Frame (Qty: 2) Tighten: 9 N.m (80 lb in)
2	Cover, Seat Back Tip: Move the seat cushion forward out of the way. Remove the seat belt anchor bolt. Refer to Release the J-channel retainer at the bottom of the seat back cover. Cut the hog rings securing the cover to the seat back pad. Feed the seat belt trough the opening in the cover. Feed the seat back release handle through the opening in the seat back cover.
Seat Back Cushion Pad Replacement Preliminary Procedures Remove the seat from the vehicle. Remove the seat back trim panel. Refer to Head Restraint, Seat Belt Exit Bezel and Seat Back Trim Panel Replacement - Rear No 2 . Remove the seat belt exit bezel. Refer to Head Restraint, Seat Belt Exit Bezel and Seat Back Trim Panel Replacement - Rear No 2 . Remove the head restraint. Refer to Head Restraint, Seat Belt Exit Bezel and Seat Back Trim Panel Replacement - Rear No 2 . Remove the cushion cover shields. Refer to Close Out Hinge Panel, Cushion Cover Shield and Riser Hook Cover Replacement - Right Side - Rear No 2 .
1	Bolt, Seat Cushion Frame (Qty: 2) Tighten: 9 N.m (80 lb in)
2	Cover, Seat Back Cushion Tip: Move the seat cushion forward out of the way. Remove the seat belt anchor bolt. Refer to Release the J-channel retainer at the bottom of the seat back cover. Cut the hog rings securing the cover to the seat back pad. Feed the seat belt trough the opening in the cover. Feed the seat back release handle through the opening in the seat back cover.
3	Pad Assembly, Seat Back Cushion
