Cushion Cover, Cushion Pad, Cushion Frame and Flex Mat Replacement - Rear No 2

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

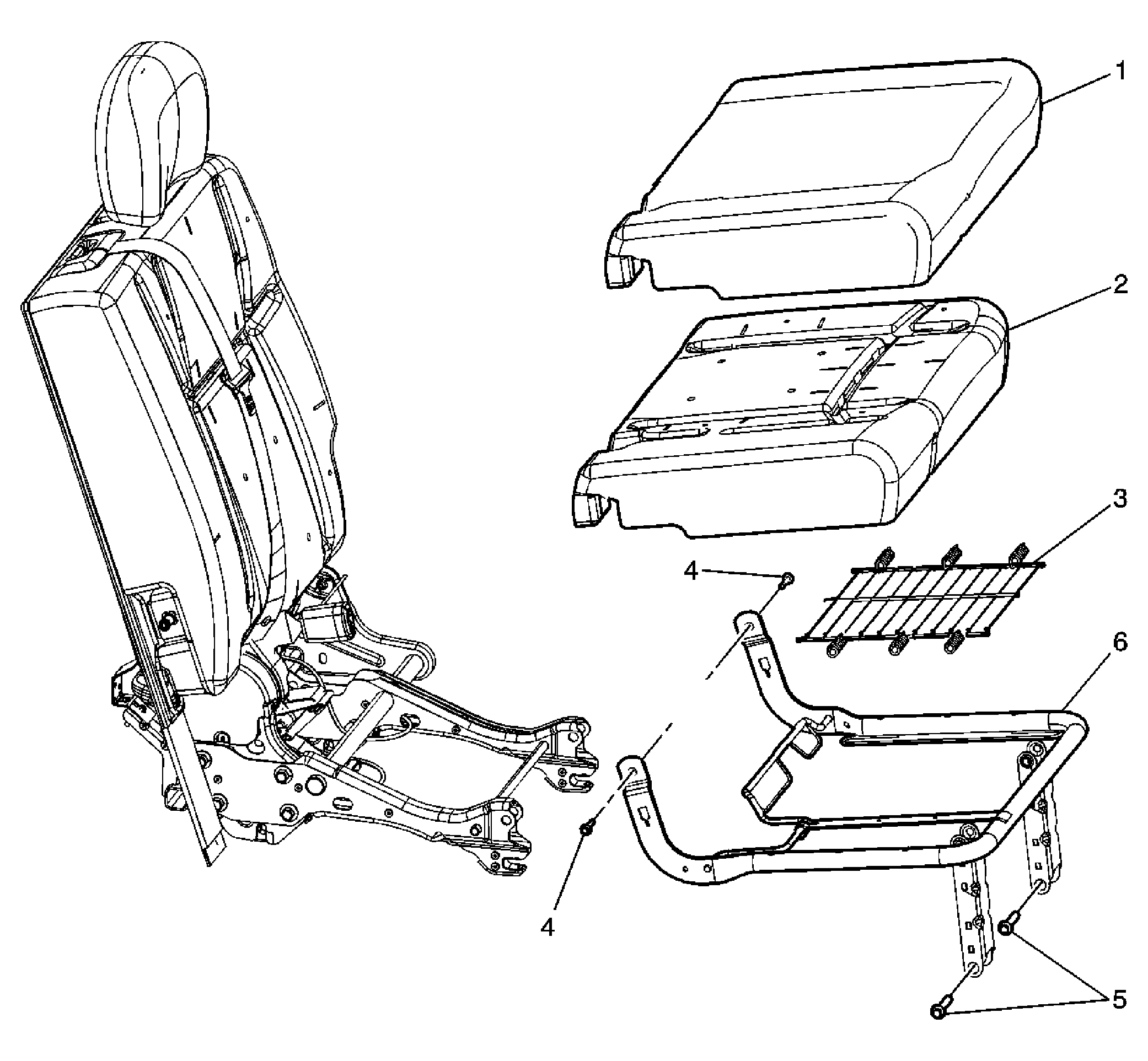

Fig 1: View Of Cushion Cover, Cushion Pad, Cushion Frame & Flex Mat - Rear No 2

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
Seat Cushion Cover Replacement
1	Cover, Seat Cushion Tip: Release the J-channel fasteners securing the cover to the frame. Cut the hog rings securing the cover to the pad.
Seat Cushion Pad Replacement
1	Cover, Seat Cushion Tip: Release the J-channel fasteners securing the cover to the frame. Cut the hog rings securing the cover to the pad.
2	Pad Assembly, Seat Cushion
Flex Mat Replacement
1	Cover, Seat Cushion Tip: Release the J-channel fasteners securing the cover to the frame. Cut the hog rings securing the cover to the pad.
2	Pad Assembly, Seat Cushion
3	Flex Mat
Seat Cushion Frame Preliminary Procedure Remove the cushion cover shield. Refer to Close Out Hinge Panel, Cushion Cover Shield and Riser Hook Cover Replacement - Left Side - Rear No 2 orClose Out Hinge Panel, Cushion Cover Shield and Riser Hook Cover Replacement - Right Side - Rear No 2 . Remove the riser hook covers. Refer to Close Out Hinge Panel, Cushion Cover Shield and Riser Hook Cover Replacement - Left Side - Rear No 2 orClose Out Hinge Panel, Cushion Cover Shield and Riser Hook Cover Replacement - Right Side - Rear No 2 .
1	Cover, Seat Cushion Tip: Release the J-channel fasteners securing the cover to the frame. Cut the hog rings securing the cover to the pad.
2	Pad Assembly, Seat Cushion
3	Flex Mat
4	Bolt, Seat Cushion Frame (Qty: 2) Tighten: 9 N.m (80 lb in)
5	Bolt, Seat Cushion Frame (Qty: 2) Tighten: 9 N.m (80 lb in)
6	Frame, Seat Cushion
