Hood Latch Support Replacement

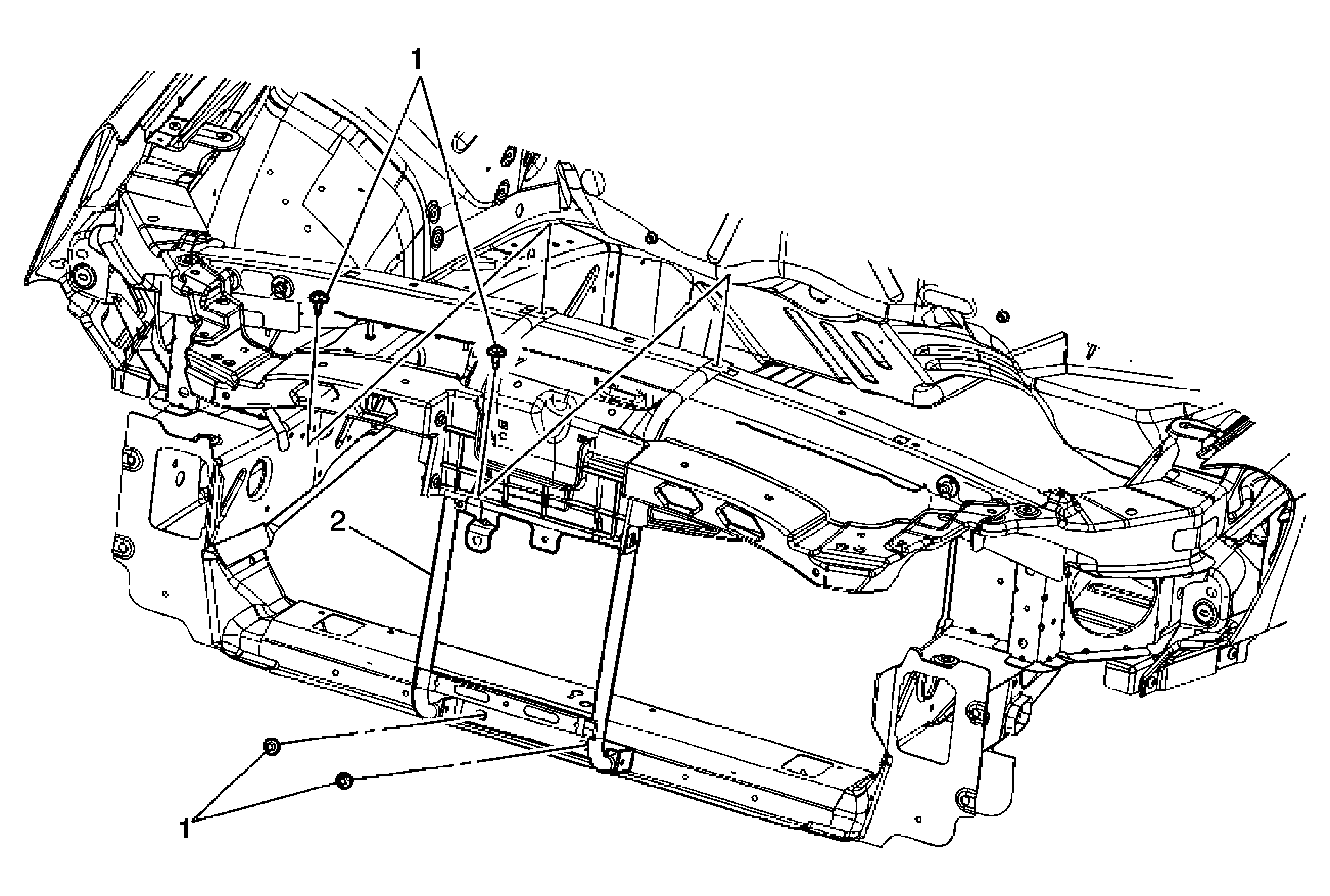

Fig 1: View Of Hood Latch Support

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front impact bar. Refer to Front Bumper Impact Bar Replacement . Remove fascia support front bumper. Refer to Front Bumper Fascia Support Replacement . Remove hood latch. Refer to Hood Latch Replacement .
1	Hood Latch Support Bolt (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 10 N.m (89 lb in)
2	Hood Latch Support

Callout

Component Name

Preliminary Procedures

Remove the front impact bar. Refer to Front Bumper Impact Bar Replacement .
Remove fascia support front bumper. Refer to Front Bumper Fascia Support Replacement .
Remove hood latch. Refer to Hood Latch Replacement .

Hood Latch Support Bolt (Qty: 4)

NOTE: Refer to Fastener Notice .

Tighten: 10 N.m (89 lb in)

Hood Latch Support
