Hood Latch Replacement

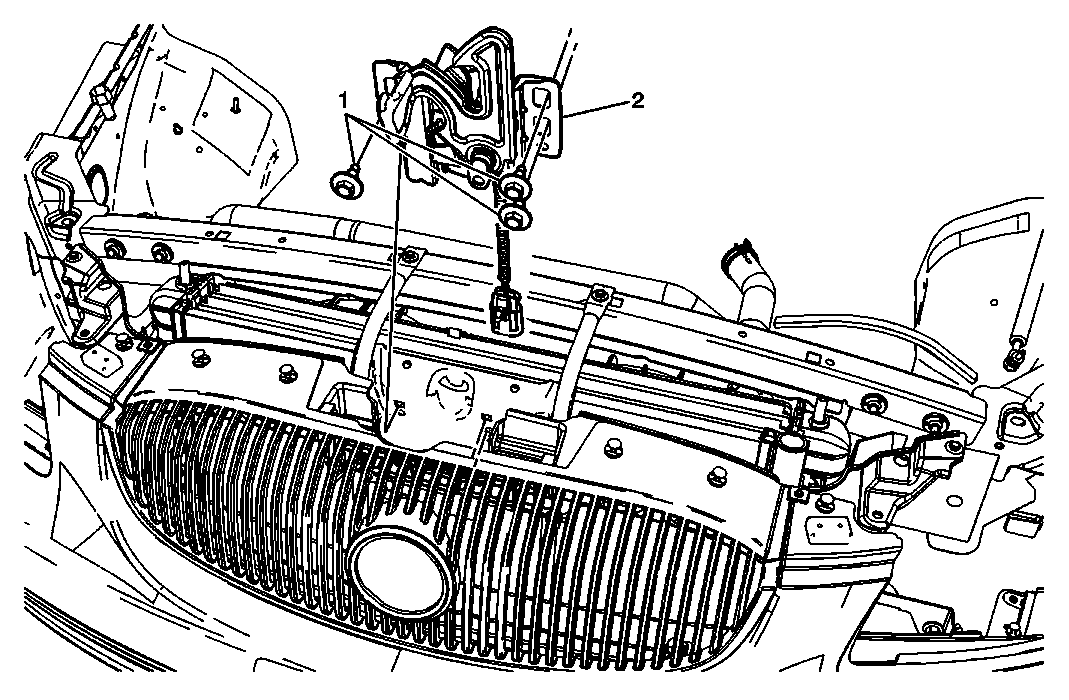

Fig 1: Identifying Hood Latch
GM1621982Courtesy of GENERAL MOTORS CORP.
Hood Latch Replacement

Callout Component Name
NOTE: Refer to Fastener Notice .
Preliminary Procedure: Remove the sight shield. Refer to Front Compartment Sight Shields Replacement .
1 Hood Latch Bolts (Qty: 3)

Tighten:  10 N.m (89 lb in)
2 Hood Latch
Tip:
  • Disconnect the release cable.
  • Disconnect the electrical connector for the remote start, if equipped.
