Front Bumper Fascia Support Replacement

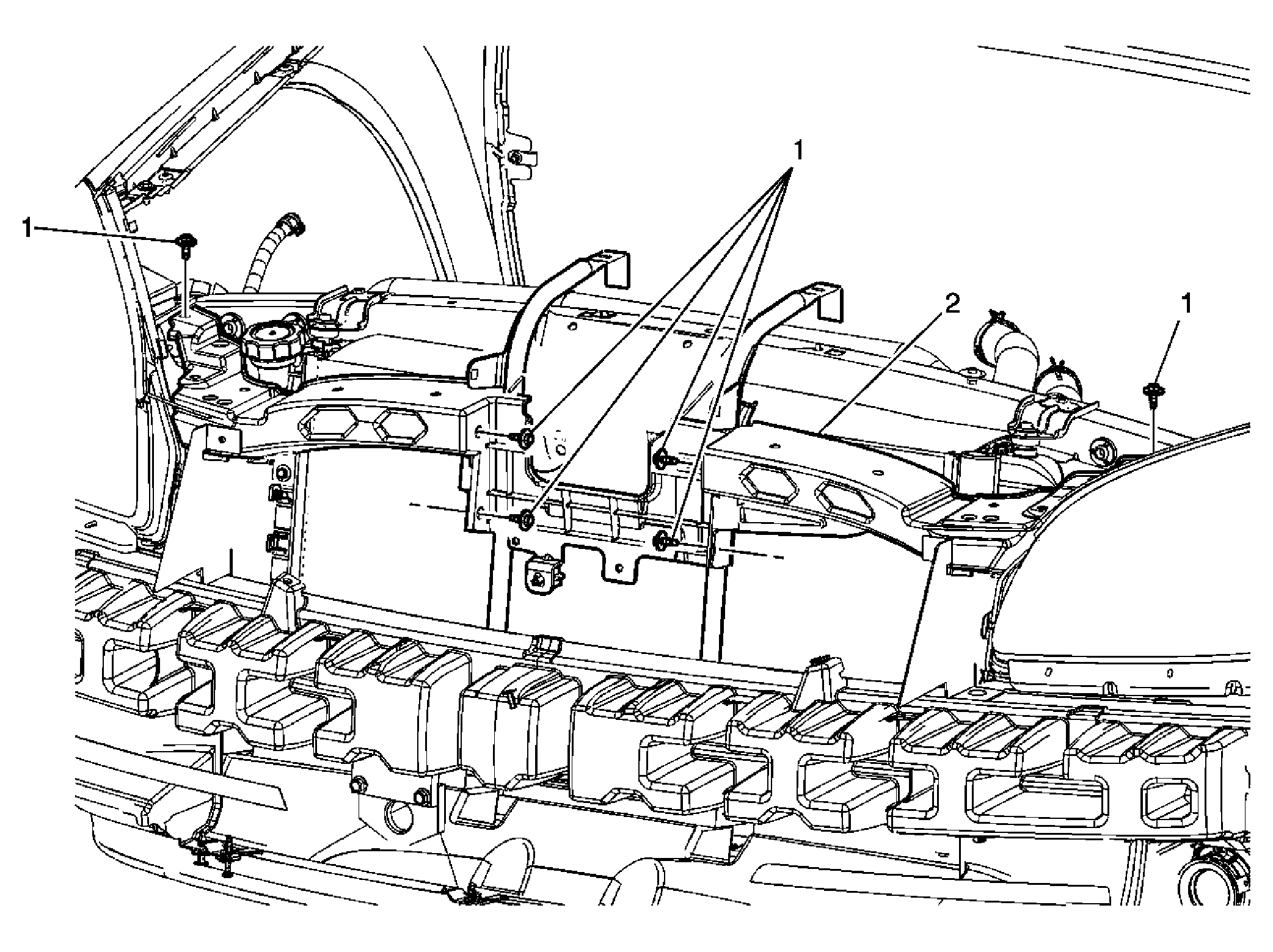

Fig 1: Identifying Front Bumper Fascia Support

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to CELL LINK . Preliminary Procedure Remove sight shield. Refer to Front Compartment Sight Shields Replacement . Remove front fascia. Refer to Front Bumper Fascia Replacement .
1	Fascia Support Bolts (Qty: 6) Tighten: 10 N.m (89 lb in)
2	Fascia Support

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to CELL LINK .

Preliminary Procedure

Fascia Support Bolts (Qty: 6)

Tighten: 10 N.m (89 lb in)

Fascia Support
