Front Bumper Impact Bar Replacement

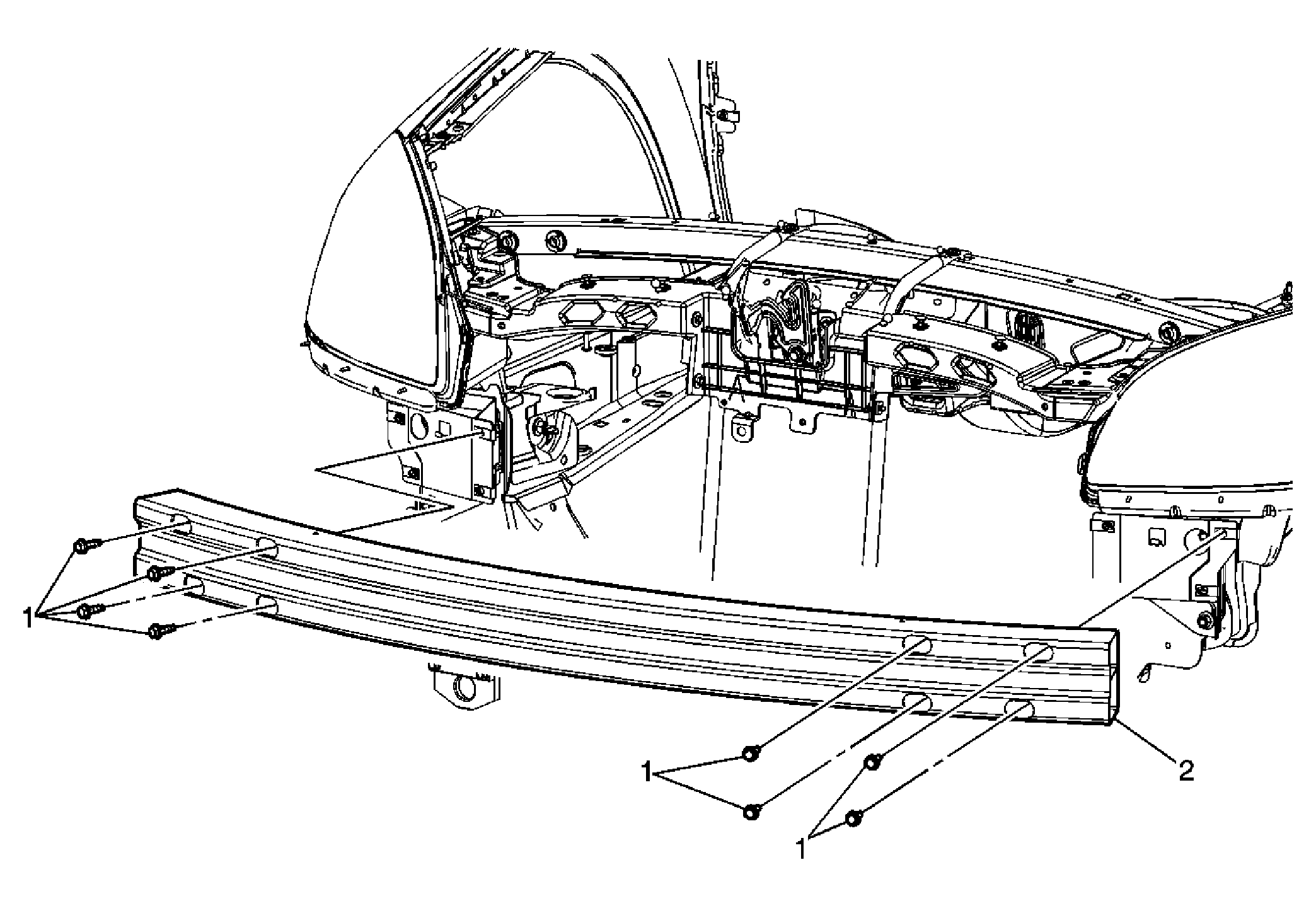

Fig 1: Identifying Front Bumper Impact Bar

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the front fascia. Refer to Front Bumper Fascia Replacement . Remove the energy absorber. Refer to Front Bumper Fascia Energy Absorber Replacement .
1	Front Bumper Impact Bar Bolts (Qty: 8) NOTE: Refer to Fastener Notice . Tighten: 25 N.m (18 lb ft) Tip: Load bar to locating hooks on bumper beam brackets. Drive right side upper outboard bolt/screw, then drive left side upper outboard bolt/screw, then drive remaining bolt/screws in any sequence.
2	Front Bumper Impact Bar

Callout

Component Name

Preliminary Procedure

Remove the front fascia. Refer to Front Bumper Fascia Replacement .
Remove the energy absorber. Refer to Front Bumper Fascia Energy Absorber Replacement .

Front Bumper Impact Bar Bolts (Qty: 8)

NOTE: Refer to Fastener Notice .

Tighten: 25 N.m (18 lb ft)

Tip: Load bar to locating hooks on bumper beam brackets. Drive right side upper outboard bolt/screw, then drive left side upper outboard bolt/screw, then drive remaining bolt/screws in any sequence.

Front Bumper Impact Bar
