Removing the right engine mount holder
Preliminary work
- Refer to DEACTIVATING ELECTRICAL SYSTEM .
- Refer to BRINGING FRONT COMPARTMENT LID IN THE SERVICE POSITION .
- Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
- Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
- Refer to REMOVING THE SEAL FOR THE HOOD REAR .
- Refer to REMOVING LEFT AND RIGHT WIPER ARM .
- Refer to REMOVING WINDSHIELD PANEL COVER .
- Refer to REMOVING THE CENTER COWL UPPER PART .
- Refer to REMOVING THE LATERAL HOOD SEALS .
- Refer to REMOVING THE SIDE PANEL SEAL .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING ACOUSTIC COVER AT REAR .
- Refer to REMOVING ALL IGNITION COILS .
- Refer to REMOVING FUEL DELIVERY LINE .
- Refer to REMOVING INTAKE SILENCER HOUSING .
- Refer to REMOVING THE FRONT LEFT WHEEL .
- Refer to REMOVING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER FRONT .
- Refer to MOVE THE ENGINE TO THE MOUNTING ORIENTATION .
- Refer to REMOVING THE LAMBDA OXYGEN SENSOR .
- Refer to REMOVING THE OXYGEN SENSOR MONITOR .
- Refer to REMOVING THE CENTER UNDERBODY PROTECTION .
- Refer to REMOVING TANK COVER ON LEFT AND RIGHT .
- Refer to REMOVING STIFFENING STRUT .
- Refer to REMOVING COMPLETE EXHAUST SYSTEM .
- Refer to REMOVING CATALYTIC CONVERTER .
- Refer to REMOVING THE RIGHT ENGINE MOUNT .

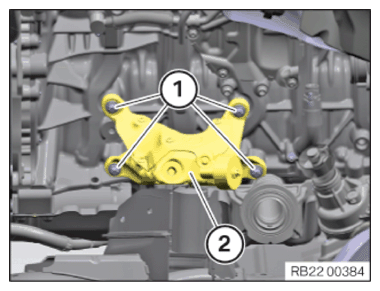

- Loosen screws (1) .
- Remove the engine support bracket (2) .
