Move the engine to the mounting orientation

Preliminary work

Refer to BRINGING FRONT COMPARTMENT LID IN THE SERVICE POSITION .
Refer to DEACTIVATING THE 48 V ELECTRICAL SYSTEM .
Refer to DEACTIVATING ELECTRICAL SYSTEM .
Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
Refer to REMOVING THE SEAL FOR THE HOOD REAR .
Refer to REMOVING LEFT AND RIGHT WIPER ARM .
Refer to REMOVING WINDSHIELD PANEL COVER .
Refer to REMOVING THE CENTER COWL UPPER PART .
Refer to REMOVING THE LATERAL HOOD SEALS .
Refer to REMOVING THE SIDE PANEL SEAL .
Refer to REMOVING THE ACOUSTIC COVER .
Refer to REMOVING ACOUSTIC COVER AT REAR .
Refer to REMOVING ALL IGNITION COILS .
Refer to REMOVING FUEL DELIVERY LINE .
Refer to REMOVING INTAKE SILENCER HOUSING .
Refer to REMOVING THE FRONT LEFT WHEEL .
Refer to REMOVING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER FRONT .

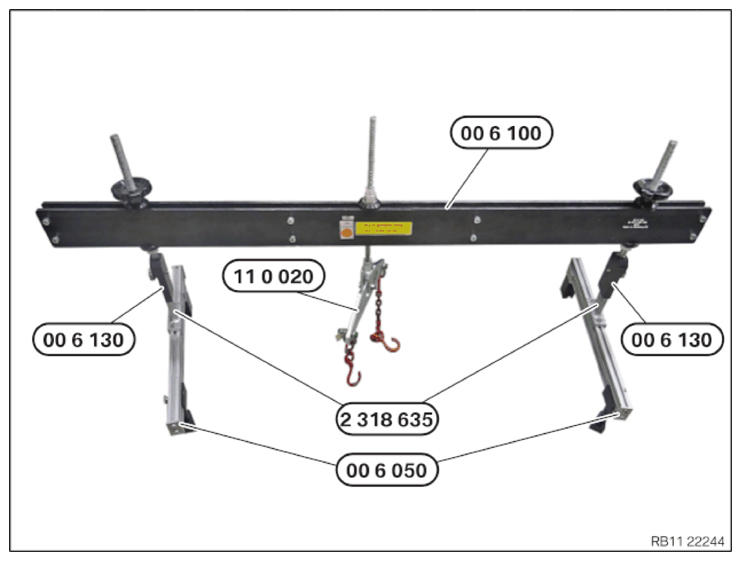

Prepared engine bridge

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Components connected to the engine joint or cross member .
Injury hazard!

Check lifting eyes and engine mounting brackets for damage, e.g. cracks.
Attach the component to correctly mounted engine joints or cross members only.
Only lift component, do not move it longitudinally or transversely.

Guide in and position special tool 2 459 012 on cylinder head.

Tighten the screws (1) of special tool 2 459012 .

TIGHTENING TORQUE SPECIFICATION

Special tool to cylinder head
M8	Tightening torque	21.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully position engine bridge (1) with help from an auxiliary person.

Courtesy of BMW OF NORTH AMERICA, INC.
Make sure that special tool 0 496 685 (00 6 070) on the left is correctly positioned on the front end.
Make sure that special tool 0 495 850 (00 0 452) on the left is correctly positioned on the carrier support.

Courtesy of BMW OF NORTH AMERICA, INC.
Make sure that special tool 0 496 685 (00 6 070) on the right is correctly positioned on the front end.
Make sure that special tool 0 495 850 (00 0 452) on the right is correctly positioned on the carrier support.

Courtesy of BMW OF NORTH AMERICA, INC.
Align the engine bridge by moving it on the profile strips of the special tool 0 496 430 (00 6 050) above the engine mounting bracket and screw it down.
Connect special tool 0 490 567 (11 0 020) to special tool 2 459 012 .
Connect the special tool 0 490 567 (11 0 020) above the engine mounting bracket (1) at the rear.

Courtesy of BMW OF NORTH AMERICA, INC.
Check whether the special tool 0 496 685 (00 6 070) on the right is correctly positioned on the front end.

Courtesy of BMW OF NORTH AMERICA, INC.
Check whether the special tool 0 495 850 (00 0 452) on the right is correctly positioned on the carrier support.

Courtesy of BMW OF NORTH AMERICA, INC.
Check whether the special tool 0 496 685 (00 6 070) on the left is correctly positioned on the front end.

Courtesy of BMW OF NORTH AMERICA, INC.
Check whether the special tool 0 495 850 (00 0 452) on the left is correctly positioned on the carrier support.

Courtesy of BMW OF NORTH AMERICA, INC.
Release screw (1) on the right engine mount from the top with a commercially available tool.

Courtesy of BMW OF NORTH AMERICA, INC.

Keep all the standard tools ready.

Number	Description
1	Standard torque wrench
2	Swivelling extension
3	External Torx E14

Courtesy of BMW OF NORTH AMERICA, INC.

Position the standard tool (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Release screw (1) of the left engine mount with standard tool (2) sideways.

Courtesy of BMW OF NORTH AMERICA, INC.
Raise the combustion engine by turning the special tool 2 361 506 (00 6 103) (spindle) by 10 mm.
