Installing the steering column

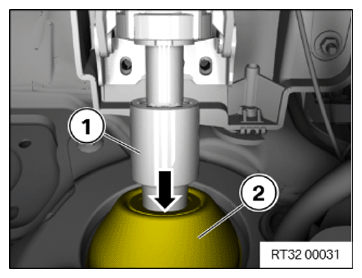

- Carefully feed in the steering column (1) in arrow direction.

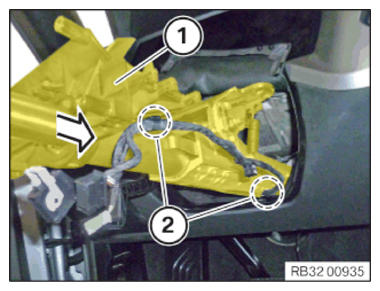

- Attach the wiring harness with the holders (2)
on the steering column (1)
.
- Guide the steering column (1)
in the steering shaft seal (2)
during installation.
- Position the steering column (2) .
- Screw the nuts (1)
by a few turns.
- Position the steering column (2) .
- Screw the nuts (1)
by a few turns.

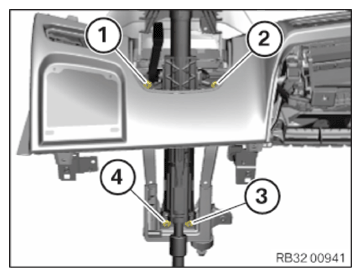

- Nuts must be tightened in the sequence (1) to (4) .
TIGHTENING TORQUE SPECIFICATION
| Steering column to dashboard support | ||
| M8 Observe tightening sequence. |
Tightening torque | 21.4 Nm |
Follow-up work
- Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
- Refer to INSTALLING THE STEERING COLUMN SWITCH CLUSTER (SZL) .
- Refer to INSTALLING SPORTS STEERING WHEEL .
- Refer to INSTALLING AIRBAG UNIT .
- Refer to INSTALLING STEERING COLUMN SHROUD LOWER SECTION .
- Refer to FITTING STEERING COLUMN SHROUD UPPER SECTION .
- Refer to FOR REUSING: RECUT THE SCREW THREAD .
- Refer to INSTALLING STEERING SHAFT, BOTTOM .
- Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
- Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
- Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY .
- Refer to ACTIVATING ELECTRICAL SYSTEM .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to CHECKING THE STRAIGHT-AHEAD DRIVING POSITION OF THE STEERING WHEEL .
- Refer to CHECKING THE AIRBAG FOR FUNCTION .
