Removing tie rod
NOTE:
TECHNICAL INFORMATION
For G2x vehicles up to 04/2019: it is imperative that both tie rods (right and left) are always replaced. Also see applicable BMW parts catalogue.
For G2x vehicles up to 04/2019: it is imperative that both tie rods (right and left) are always replaced. Also see applicable BMW parts catalogue.
NOTE:
TECHNICAL INFORMATION
Perform wheel alignment after installation.
Perform wheel alignment after installation.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to DETERMINING INSTALLED VARIANT OF THE STEERING GEAR .
- Refer to REMOVING FRONT LEFT OR RIGHT WHEEL .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
- Refer to REMOVING THE UNDERBODY PROTECTION OF THE STEERING GEAR .
- Refer to REMOVING THE COVER OF THE STEERING ASSEMBLY .
- Refer to REMOVING THE TIE ROD END .
- Refer to REMOVING THE BELLOWS FOR THE STEERING GEAR .
- Refer to CHECKING THE RACK FOR DAMAGE .
NOTE:
TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.
Different variants may be installed depending on the vehicle equipment.
Version A: Removing tie rod

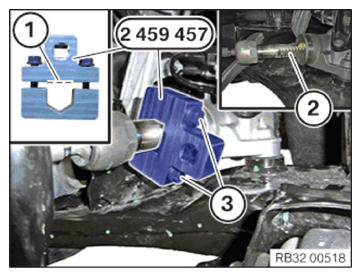

- Position the flattened side (1) of the special tool 2 459 457 on the flattened side of the rack (2) .
- Tighten down screws (3).
TIGHTENING TORQUE SPECIFICATION
| Special tool on rack | |
|---|---|
| Tightening torque | 15 Nm |
NOTE:
The following steps are only required for work on the right-hand track rod.

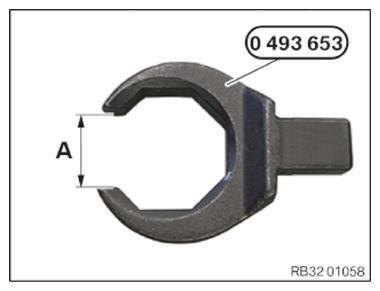

- When using special tool 0 493 653 (32 3 160) , determine dimension (A) and enlarge it to 30 mm.
- The, protect the special tool 0 493 653 (32 3 160) against corrosion
.

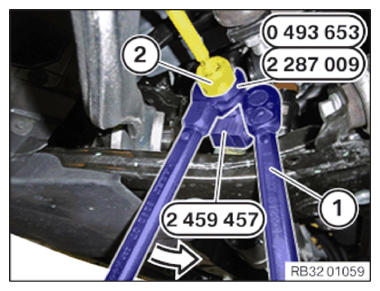

- Provide counter support to special tool 2 459 457
using standard tool (1).
Make sure that the tools for counter supporting the rack and loosening the tie rod have the same length.
- Loosen the tie rod (2) with the appropriate special tool 0 493 653 (32 3 160) or 2 287 009 in the arrow direction and remove it.
Version B: Removing tie rod
NOTE:
TECHNICAL INFORMATION
To avoid damage to the steering shaft and its bearing, the rack must be positioned in the steering gear as far as possible.
To avoid damage to the steering shaft and its bearing, the rack must be positioned in the steering gear as far as possible.
NOTE:
The following steps are only required for work on the right-hand track rod.
- Determine dimension (A) on special tool 0 496 483 (32 3 220) and increase it to 30 mm .
- After use, protect special tool 0 496 483 (32 3 220) against corrosion
.
- Release the tie rod (1) with the special tool 0 496 483 (32 3 220) and remove .
