Determining installed variant of the steering gear
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Precondition
If necessary, remove the cover of the steering assembly.
Different variants may be installed depending on the vehicle equipment.

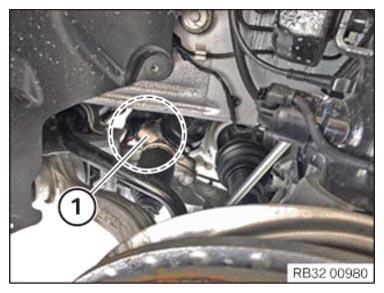

- Determining installed variant of the steering gear (1).
- It is imperative to
use the special tools described in the respective steps (version A or B) when installing and removing the bellows and the tie rod.

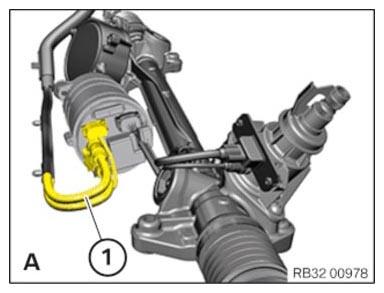

- Version A:
Plug connections of the wiring harness (1) on the steering gear arranged on top of each other.

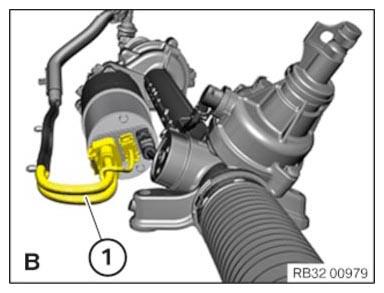

- Version B:
Plug connections of the wiring harness (1) on the steering gear arranged next to each other.
