Install the tie rod
NOTE:
TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.
Different variants may be installed depending on the vehicle equipment.
Version A: Install the tie rod

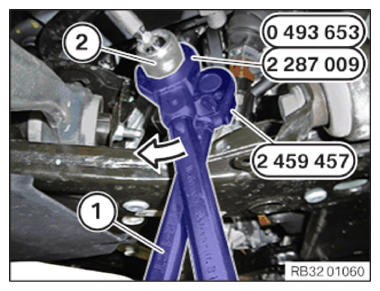

- Feed the tie rod (2).
- Provide counter support to special tool 2 459 457
using standard tool (1).
Make sure that the tools for counter supporting the rack and tightening the tie rod are the same length.
- Tighten the tie rod (2) with the appropriate special tool 0 493 653 (32 3 160) or 2 287 009 in the arrow direction.
TIGHTENING TORQUE SPECIFICATION
| Tie rod to steering box | |
|---|---|
| tightening torque | 110 Nm |

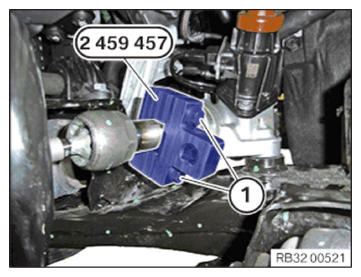

- Loosen screws (1).
- Remove the special tool 2 459 457 .
Version B: Install the tie rod
NOTE:
TECHNICAL INFORMATION
To avoid damage to the steering shaft and its bearing, the rack must be positioned in the steering gear as far as possible.
To avoid damage to the steering shaft and its bearing, the rack must be positioned in the steering gear as far as possible.
- Thread through the tie rod (1) by hand.
- Tighten tie rod (1) with the special tool 0 496 483 (32 3 220) .
TIGHTENING TORQUE SPECIFICATION
| Tie rod to steering box | |
|---|---|
| tightening torque | 105 Nm |
Follow-up work
- Refer to INSTALLING THE STEERING GEAR BELLOWS .
- Refer to INSTALLING TIE ROD END .
- Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY .
- Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING FRONT LEFT OR RIGHT WHEEL .
- Refer to PERFORM CHASSIS ALIGNMENT CHECK .
