Install the underbody protection of the steering gear
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

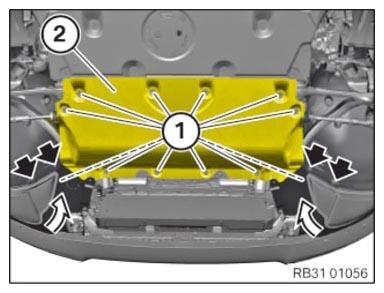

- Position the underbody protection of the steering gear (2).
- Tighten down screws (1).TIGHTENING TORQUES SPECIFICATION
Underbody protection of the steering gear Hexagon bolt for thermoplastic Tightening torque 2.6 Nm Hexagon screw M6x20 Tightening torque 8 Nm - Position the wheel arch cover at the bottom in the arrow direction.
- Tighten the screws (arrows) of the wheel arch cover at the bottom on the wheel arch cover.TIGHTENING TORQUES SPECIFICATION
Wheel arch trim panel, front Thermoplastic hexagon screw Tightening torque 2.6 Nm
